SKY-WATCHER WAVE100i mount - Pinout of the Interfaces; Power Supply Requirements

PART III:Electronic Control Interface
3.
2

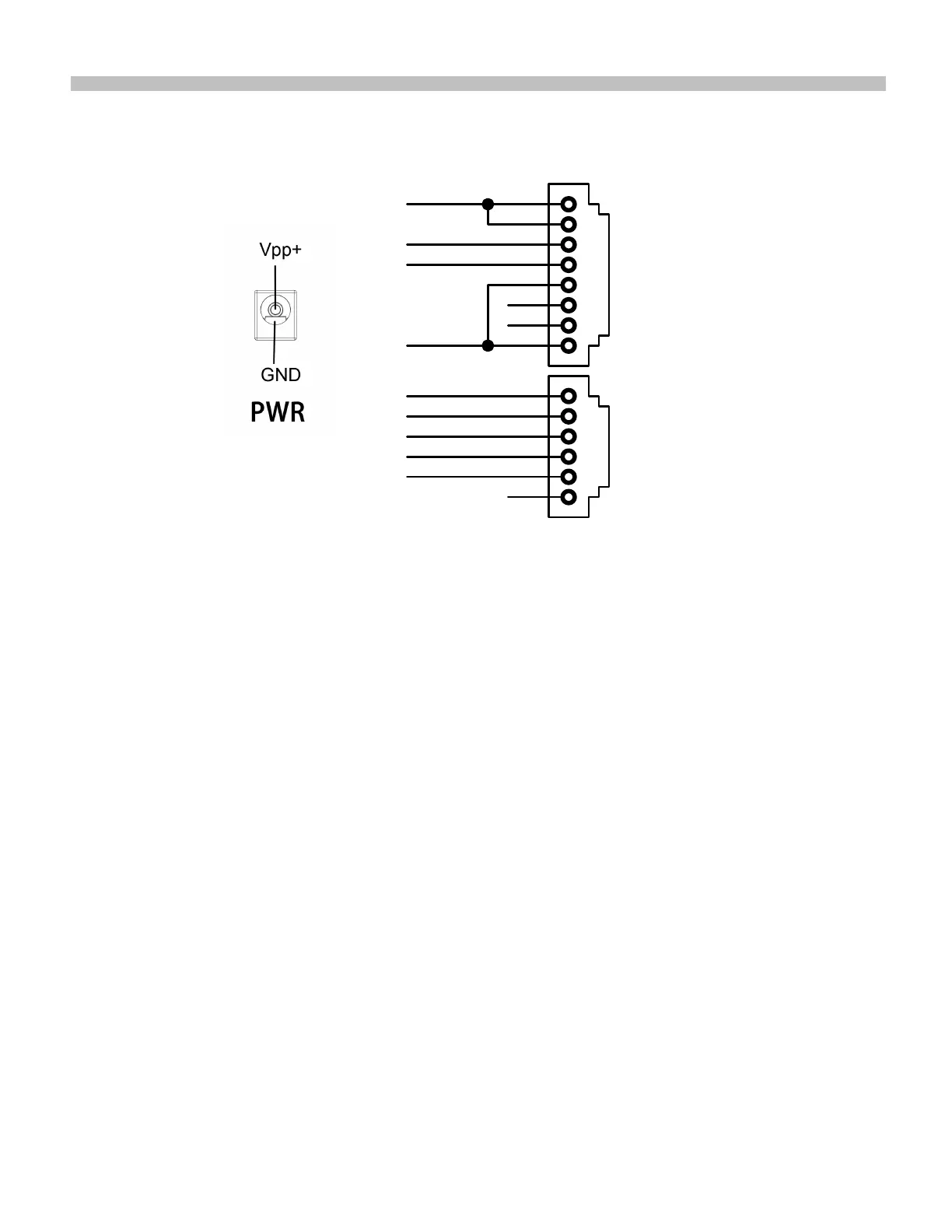

Pinout of the Interfaces:
8
7
6
5
4
3
2
1
HAND CONTROL
GND
Vpp+
RX(3.3V)
TX(3.3V)
6
5
4
3
2
1
GND
RA+
RA-
DEC+
DEC-
3.
3 3RZHU6XSSO\5HTXLUHPHQWV
1. Output Voltage: DC 12 to 16 V, higher voltage is recommended.
2. Power Rating: >35W
3. Barrel Plug: 2.1mm I.D, 5.5mm O.D., central positive
4. Do not us an unregulated AC-to-DC adapter.
AUTO GUIDE
11
)LJ15
