PART I:Installation

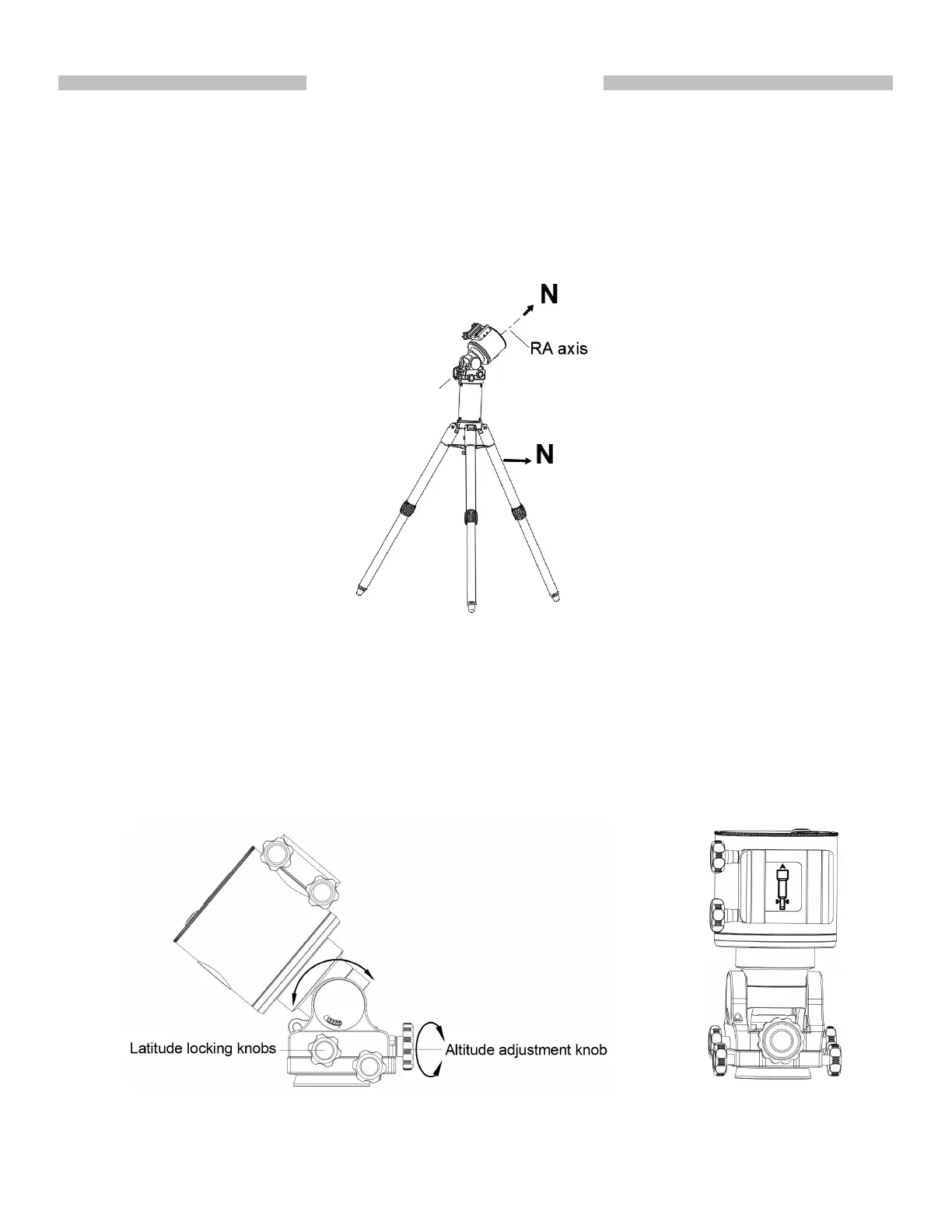

Setup Tripod and Wave 100i
The WAVE 100i mount can be installed on multiple tripods and extension stands, please refer to the instruction
manual in you tripod kits for details.If the mount is going to be setup in the equatorial mode, make sure one of the
tripod legs orient to the polar direction(N). While attaching the mount to the tripod, please align the R.A. axis to the
the north orienting tripod leg.
)LJ
2TiltDeclination Axis
1.For use in equatorial (EQ) mode, loosen slightly the two Latitude locking knobs and turn the Latitude adjustment
knob until the arrow on the latitude scale of the mount matches the latitude of your observing site. Lock the two
Latitude locking knobs. ( Fig.2)
2.For use in Alt-Azimuth (AZ) mode, rotate the Altitude adjustment knob until it stops turning and lock Latitude
locking knobs .leave the mount in upright position as shown in Fig.3
)LJ3
)LJ
