PART I:Installation of the WAVE100i Mount
3Install the telescope
)LJ4
)LJ4a
)LJ4b

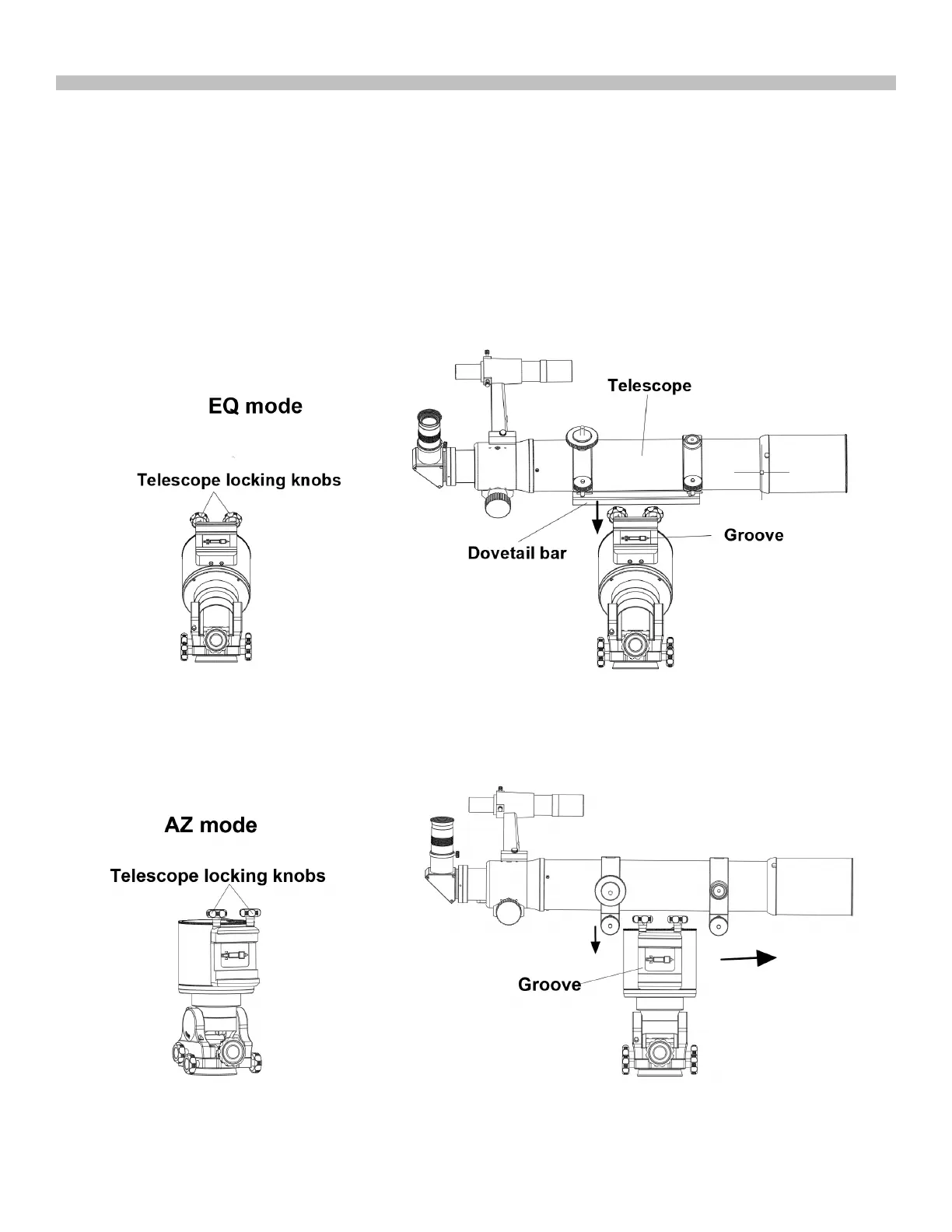

1.Turn on the power and connect the mount with Synscan pro App or hand control,
2.Use the direction buttons to slew the declination axis and level the groove with the telescope locking knobs on
the upper side..(Fig4a,Fig5a)
3.Loosen the two telescope locking knobs on the saddle alternately until the width of groove is slightly wider than
the width of the dovetail bar on the telescope.
4.Seat or slide the dovetail bar into the groove with the telescope pointing to the right. Alternately tighten the two
locking knobes to securate the dovetail bar firmly(Fig4b,Fig5b).
Warning: Keep supporting the telescope until you are sure that it has been firmly locked in the groove.
