Sky DV3 User Manual

TAKING CONTROL
YOUR SKY BOX
38 USING YOUR SKY BOX
RF
leads
RF
lead
TERRESTRIAL
AERIAL
mains
lead
SECOND TV
SOUND SYSTEM
scart lead
telephone
lead
scart lead
TV
SATELLITE
DISH
VIDEO/DVD RECORDER
audio
lead
YOUR SKY BOX

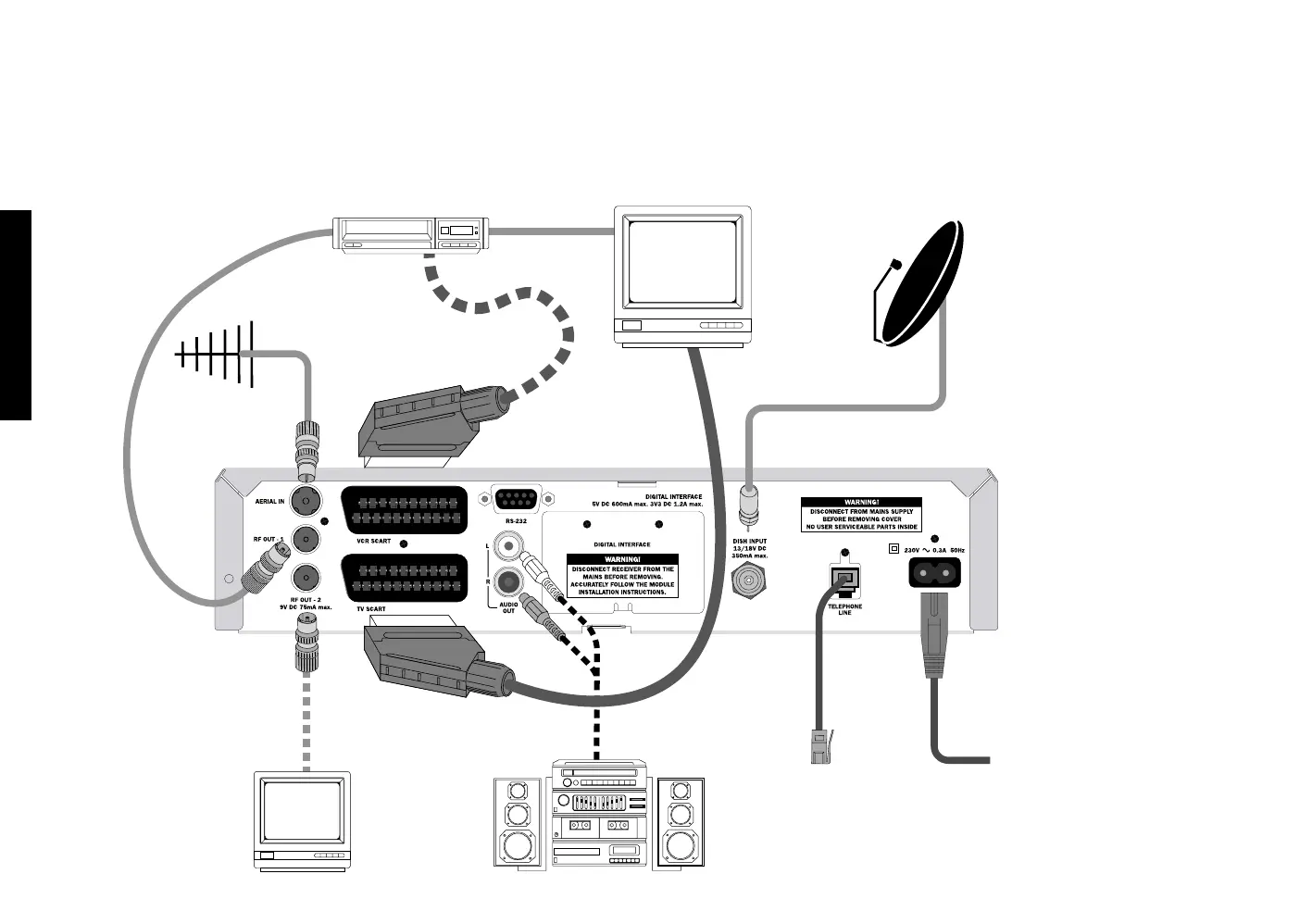

When your Sky box was installed, all the connections were made between your Sky box, TV, video and minidish.
Follow this diagram for an overview of the standard setup, and if you need to connect other devices such as a second TV or a sound
system. The connections on your Sky box may vary from the picture shown here.
SKY BOX REAR PANEL
WARNING!
You must disconnect
your Sky box from the
mains supply before you
connect your Sky box to
(or disconnect it from)
any other equipment.
Terminals marked with
the hazard symbol are
hazardous live and
the external wiring
connected to these
terminals requires
installation by an
instructed person or the
use of ready-made leads
or cords.
With the exceptions
of the mains and the
telephone line, all
the interconnections
between the rear panel
of your Sky box and
your other equipment
are safe, extra-low
voltage circuits.
However, you should
always disconnect the
box from the mains
before connecting other
devices.
RF
lead
RF
lead
RF
lead
RF lead
