Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
• Test Enable Trigger Switch
1. Pull out “ ” emergency stop button.
2. Without activating “ ” enable trigger
switch, attempt to activate any platform
function.
Result: All platform functions should not
operate.
• Test Lift/Off/Drive Switch Off Position
1. Select lift/off/drive switch to“ ” off position,
attempt to activate any platform function.
Result: All platform functions should not
operate.
• Test Steering
1. Select lift/off/drive switch to “ ” drive
position.
2. Without activating “ ” enable trigger
switch.
3. Press rocker switch on top of controller
handle to “ ” left and “ ” right.
Result: Steer wheels should not operate.
4. Activate and hold “ ” enable trigger
switch.
5. Press rocker switch on top of controller
handle to “ ” left and “ ” right.
Result: Steer wheels should turn left and
right.
• Test Drive Cutout Limit Switch
1. Traverse platform to any position, then
attempt to drive “ ” forward and
“ ” reverse.
Result: Forward and reverse drive functions
should not operate.
2. Fully retract platform, then attempt to drive
“ ” forward and “ ” reverse.
Result: Forward and reverse drive functions
should operate.

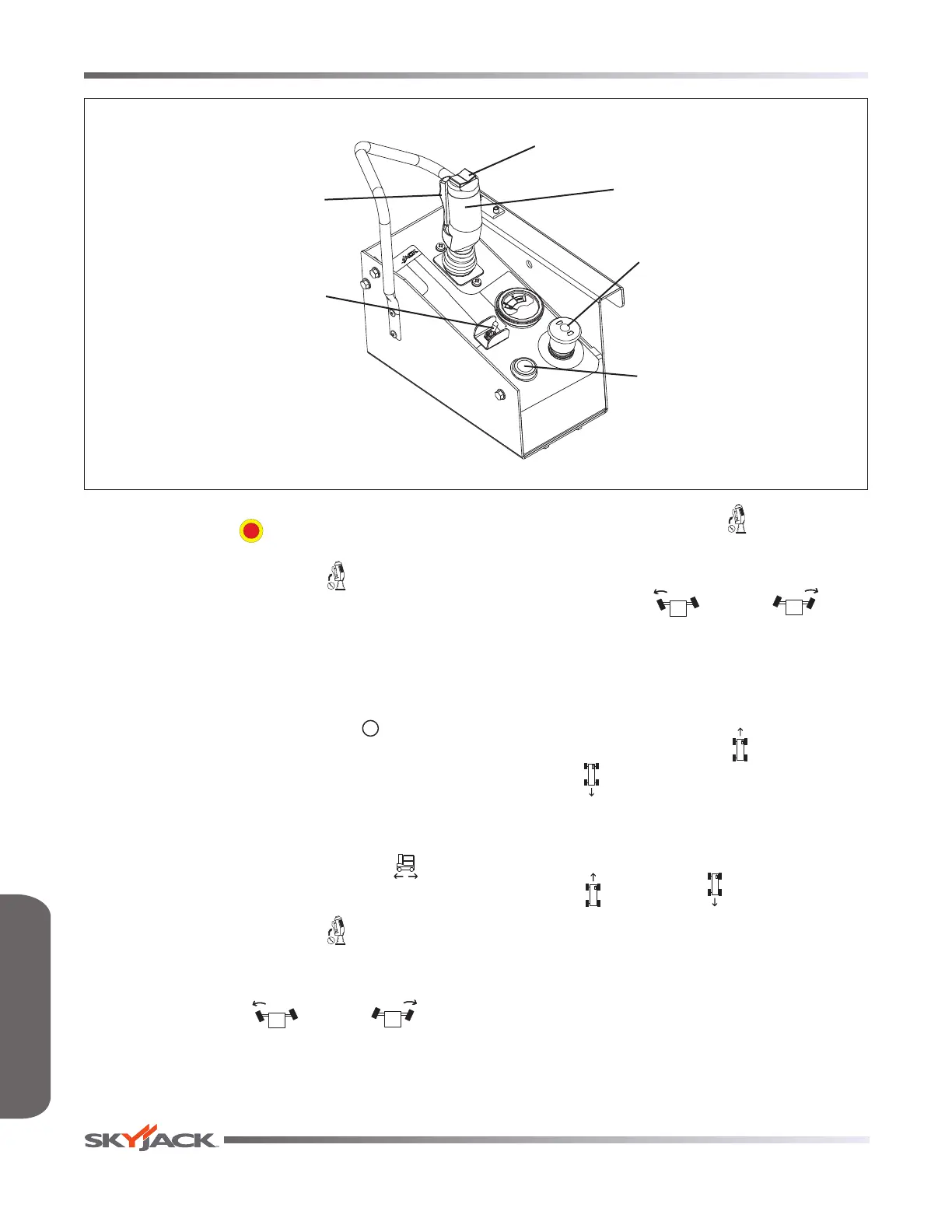

Lift/Drive/Steer Enable
Trigger Switch
Rocker Switch
Horn Pushbutton
Lift/Off/Drive Switch
Emergency Stop Button/
Operation Light
Controller
