Skyjack SJ12 Operating Manual

Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
• Test Horn
1. Push “ ” horn pushbutton.
Result: Horn should sound.
• Test Platform Raising/Lowering
WARNING
Be aware of overhead obstructions
or other possible hazards around the
aerial platform when lifting.
1. Select lift/off/drive switch to “ ” lift position.
2. Without activating “ ” enable trigger
switch attempt to lift/lower the platform.
Result: Aerial platform lift/lower functions
should not operate.
3. Activate and hold “ ” enable trigger
switch.
4. Push controller handle and raise the
platform to an approximate height of 1 ft.
(30.5 cm).
Result: Platform should rise.
5. Pull controller handle and lower the
platform fully.
Result: Platform should lower.
• Test Elevated Drive Speed
WARNING
Be aware of overhead obstructions or
other possible hazards around the
aerial platform when lifting.
1. Ensure path of intended motion is clear.
2. Raise the platform until approximately a
height of 1 ft.(30 cm) is reached and attempt
to drive forward or reverse.
Result: Aerial platform should move slower
than when it was in stowed position.

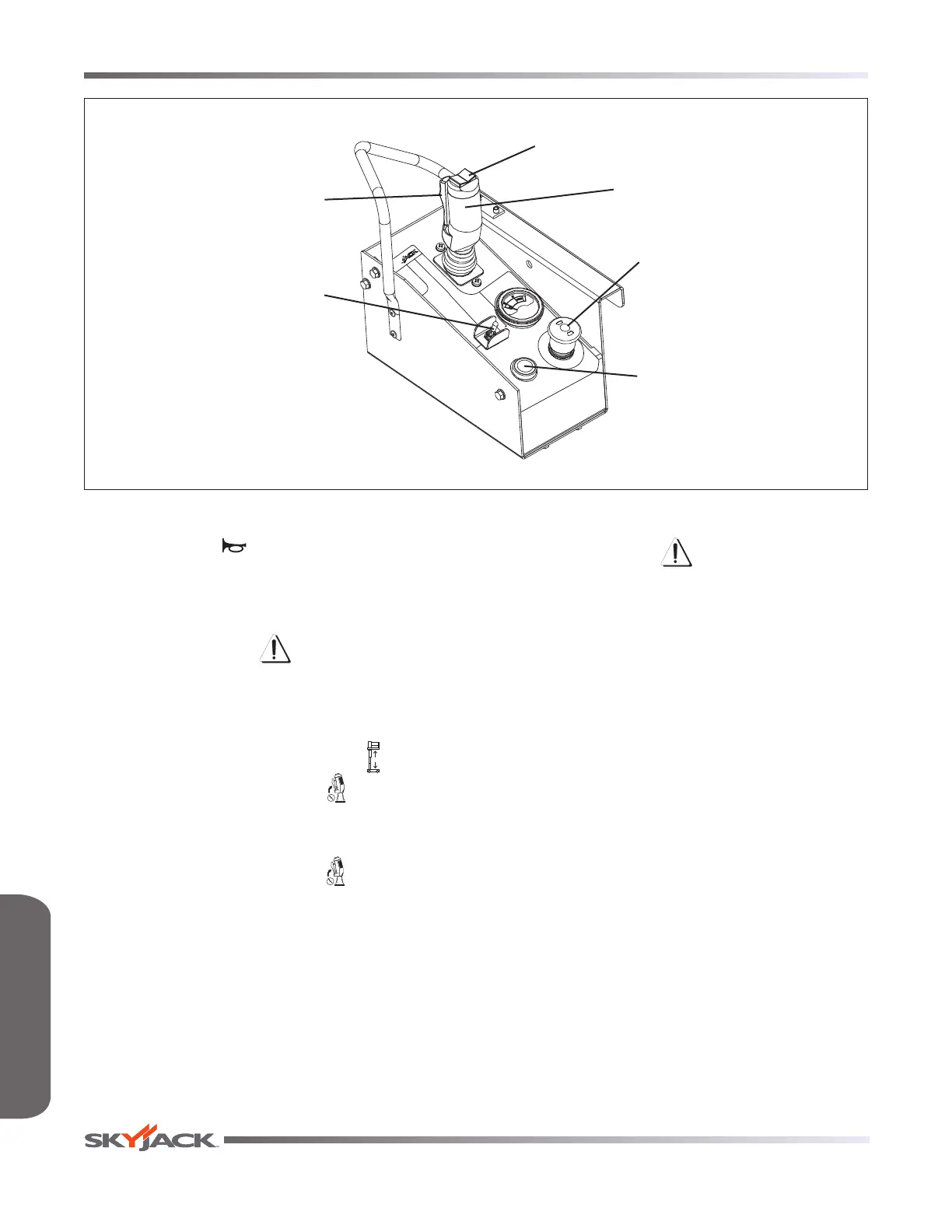

Lift/Drive/Steer Enable
Trigger Switch
Rocker Switch
Horn Pushbutton
Lift/Off/Drive Switch
Emergency Stop Button/
Operation Light
Controller
Page 28
Vertical Mast
TM

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
