SKYJACK, Page 104 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
1
2
3
9
6
8
7
4
5

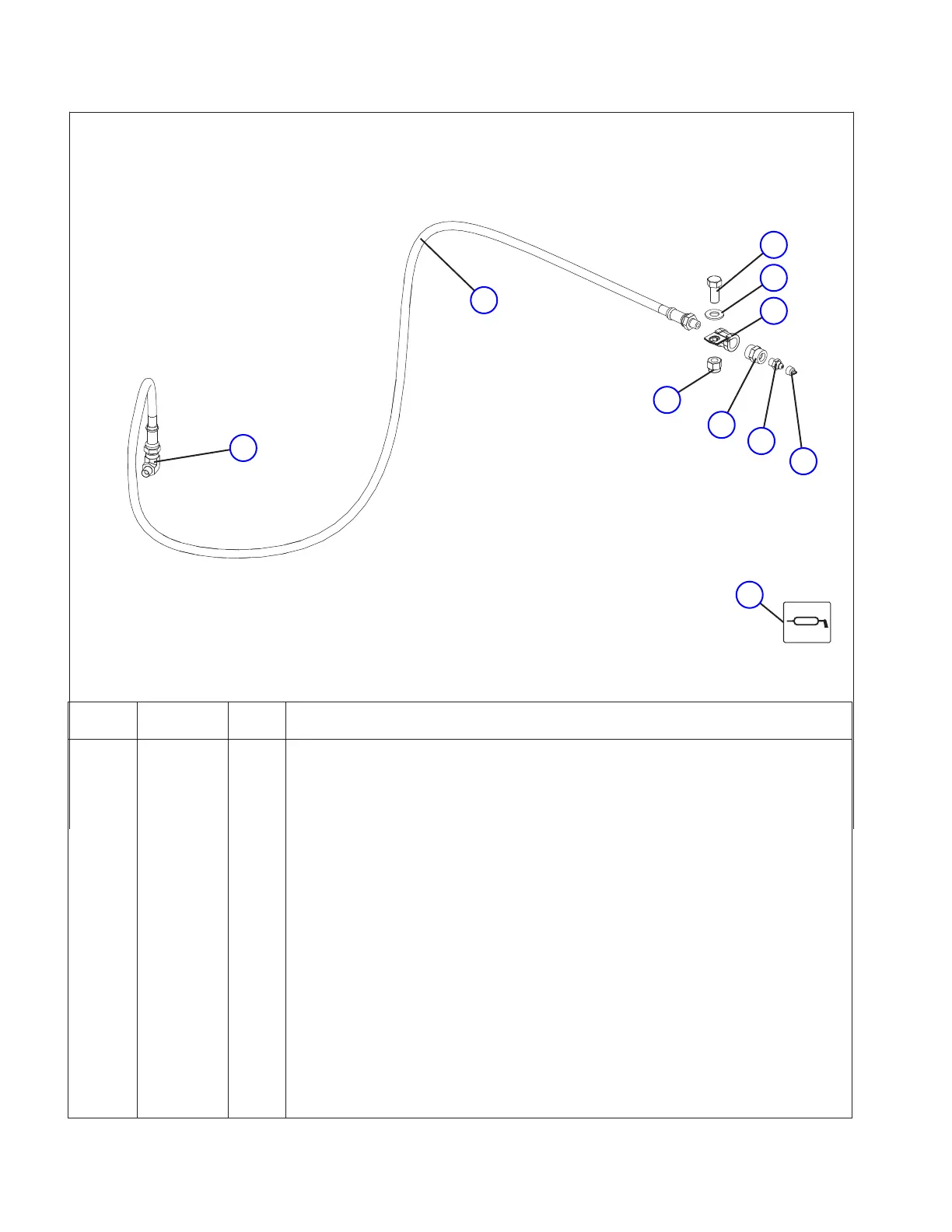

4.24 Grease Line Hose Assembly
M148613AB
10
Index
No.
Skyjack
Part No.
Qty. Description
- 148613 1 GREASE LINE HOSE ASSEMBLY
1 139090 1 • LINE, Grease
2 139094 1 • FITTING, Elbow 90° (1/8 NPTM - 1/8 NPTF)
3 139095 1 • FITTING, Straight (1/8 NPTF - 1/8 NPTF)
4 102027 1 • FITTING, Straight grease (1/8 NPT)
5 132565 1 • CAP
6 144129 1 • CLIP, Single
7 300437 1 • BOLT, Hex head (3/8”-16 x 7/8”, Grade 5)
8 103472 1 • WASHER, Flat (3/8”)
9 104606 1 • NUT, Hex lock (3/8”-16 Grade 5, nylon)
10 (Ref.) - GREASE
(For components, refer to Section 11.3)
