Skyjack SJ46AJ Parts Manual

SKYJACK, Page 112 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
RESET
TEST
M1448634AA
1 5
7
10
3
6
9
2
8

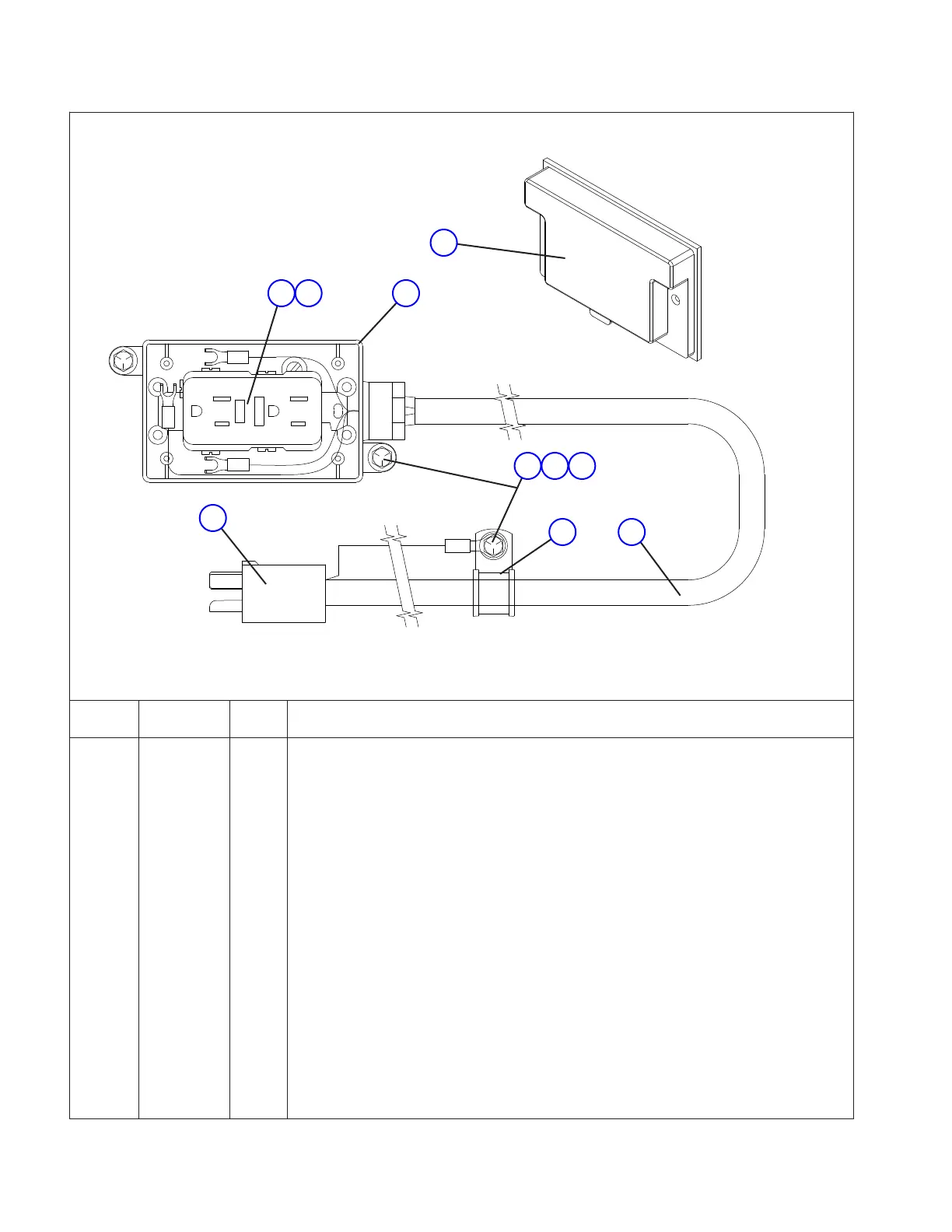

5.5 110/220V Outlet Assembly
4
Index
No.
Skyjack
Part No.
Qty. Description
A 148634 1 110V OUTLET ASSEMBLY (46AJ ANSI/CSA)
B 148635 1 220V OUTLET ASSEMBLY (46AJ CE & AS)
C 148636 1 220V OUTLET ASSEMBLY (51AJ CE & AS)
1 109698 1 • RECEPTACLE, GFI, A
2 121461 2 • BOLT, Machine round head (6-32 UNC x 3/8”), A
- 149492 1 • 110V CABLE ASSEMBLY, A
3 104208 1 • • PLUG, Male (15A - 225V), A
4 103259 758” • • CABTIRE (12/3 300V), A
103259 734” • CABTIRE (12/3 300V), B
103259 818” • CABTIRE (12/3 300V), C
4 136328 1 • BOX, AC outlet, A
5 109699 1 • PLATE, Weatherproof cover, A
6 115649 3 • NUT, Hex nylon lock (1/4”-20, Grade 5)
7 103857 3 • BOLT, Hex head (1/4”-20 x 1”, Grade 5)
8 103995 3 • WASHER, Flat (1/4”)
9 103024 1 • CLIP, Single (G8)
