Skyjack SJ46AJ Parts Manual

SKYJACK, Page 16 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
M148966AA-2
9
7
2
1
8
4
1
6
4

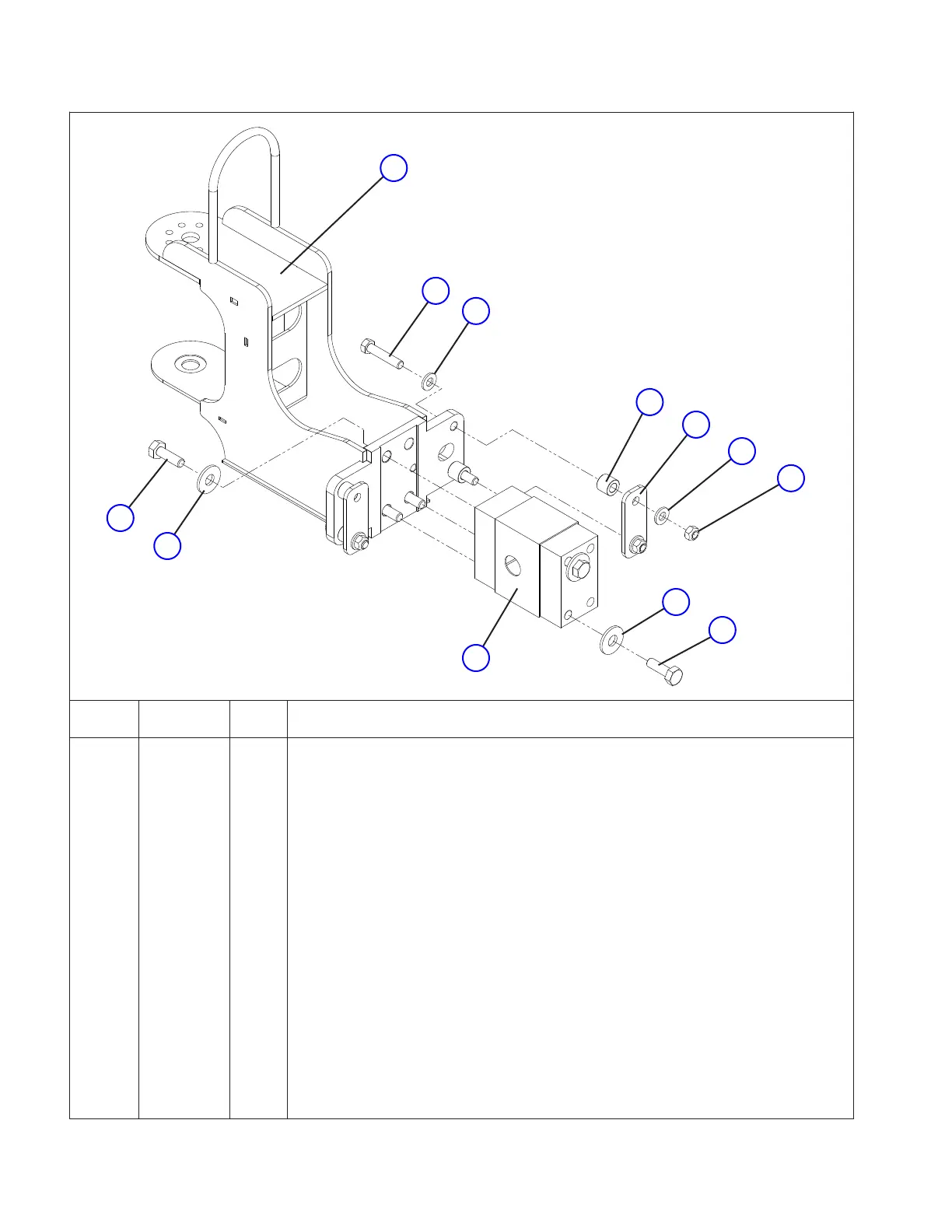

1.5 Load Cell (CE & AS)
3
3
5
Index
No.
Skyjack
Part No.
Qty. Description
- - 1 LOAD CELL ASSEMBLY
1 104379 8 • WASHER, Flat hardened (0.50”)
2 144575 4 • BOLT, Hex head (1/2”-20 x 0.75”, Grade 5) B, D
3 144502 8 • BOLT, Hex head patch (M16 x 1.5 x 45, Grade 8.8) B, D
4 144329 8 • WASHER, Flat hardened (M16) B, D
5 138791 4 • NUT, Torque lock (1/2”-13, Grade C) B, D
6 148959 1 • MOUNTING, Rotary Actuator B, D
7 144574 4 • SPACER, Load cell B, D
8 144363 1 • LOAD CELL, Moba B, D
9 144365 2 • WASHER, Safety B, D
