Skyjack SJ46AJ - Auxiliary Pump

Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SKYJACK, Page 91
M167489AC
1

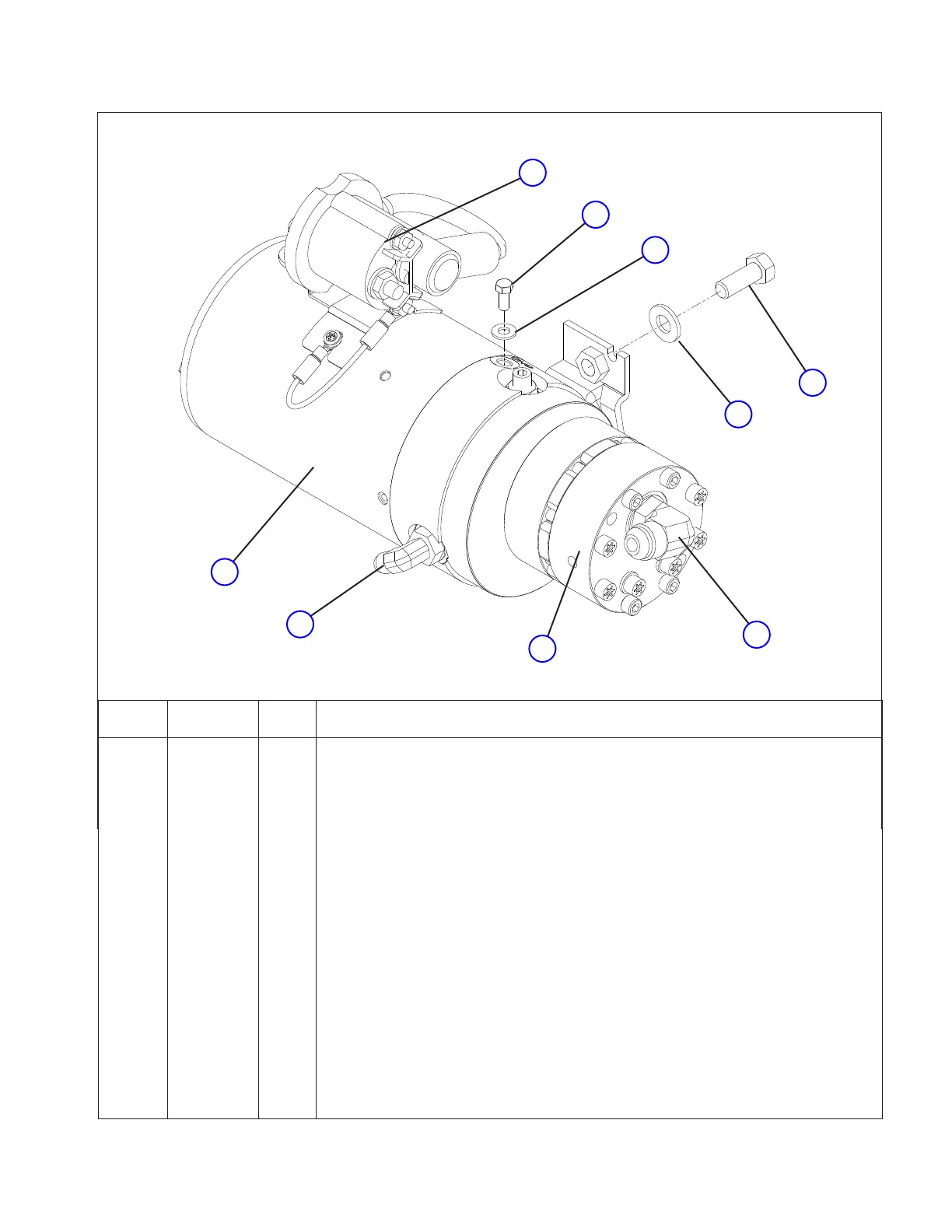

4.18 Auxiliary Pump
4
5
6
7
3
2
8
9
Index
No.
Skyjack
Part No.
Qty. Description
- 167489 1 AUXILIARY PUMP
- 160923 1 • PUMP, Auxiliary
1 168897 1 • • MOTOR
2 168898 1 • • CONTACTOR
3 169244 1 • • PUMP
4 125959 2 • WASHER, Flat hardened (0.375”)
5 103473 2 • BOLT, Hex head (0.375”-16 x 1.00” Grade 5)
6 114583 1 • FITTING, Elbow, 90° (08 ORBM - 08 JICM)
7 129127 1 • FITTING, Elbow, 90° (04 JICM - 06 ORBM)
8 103404 1 • WASHER, Lock (0.312”)
9 148331 1 • BOLT, Hex head (0.312”-18 x 0.625” Grade 5)
