Skyjack SJ46AJ Parts Manual

SKYJACK, Page 242 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
Index
No.
Skyjack
Part No.
Qty. Description
A 160765 1 GENERATOR (3.5kW - 60Hz AC) (ANSI/CSA)
B 160852 1 GENERATOR (3.5kW - 50Hz AC) (CE)
1 171419 1 • MOTOR, Hydraulic - 5 cc
2 197772 1 • ALTERNATOR, Generator - 60 Hz, A
3 197773 1 • ALTERNATOR, Generator - 50 Hz, B
3 197775 1 • CORD, GFI (not shown)
4 117325 1 • BREAKER, Circuit - 15 amp
5 162508 1 • BOOT, Circuit breaker
- 197765 1 • MANIFOLD, Generator - 3.5 kW
6 197768 1 • • BLOCK, Manifold
7 168448 1 • • VALVE, Solenoid
8 168450 1 • • COIL, Solenoid
9 169407 1 • • VALVE, Flow control
10 169408 1 • • VALVE, Relief
11 169409 1 • • VALVE, Relief

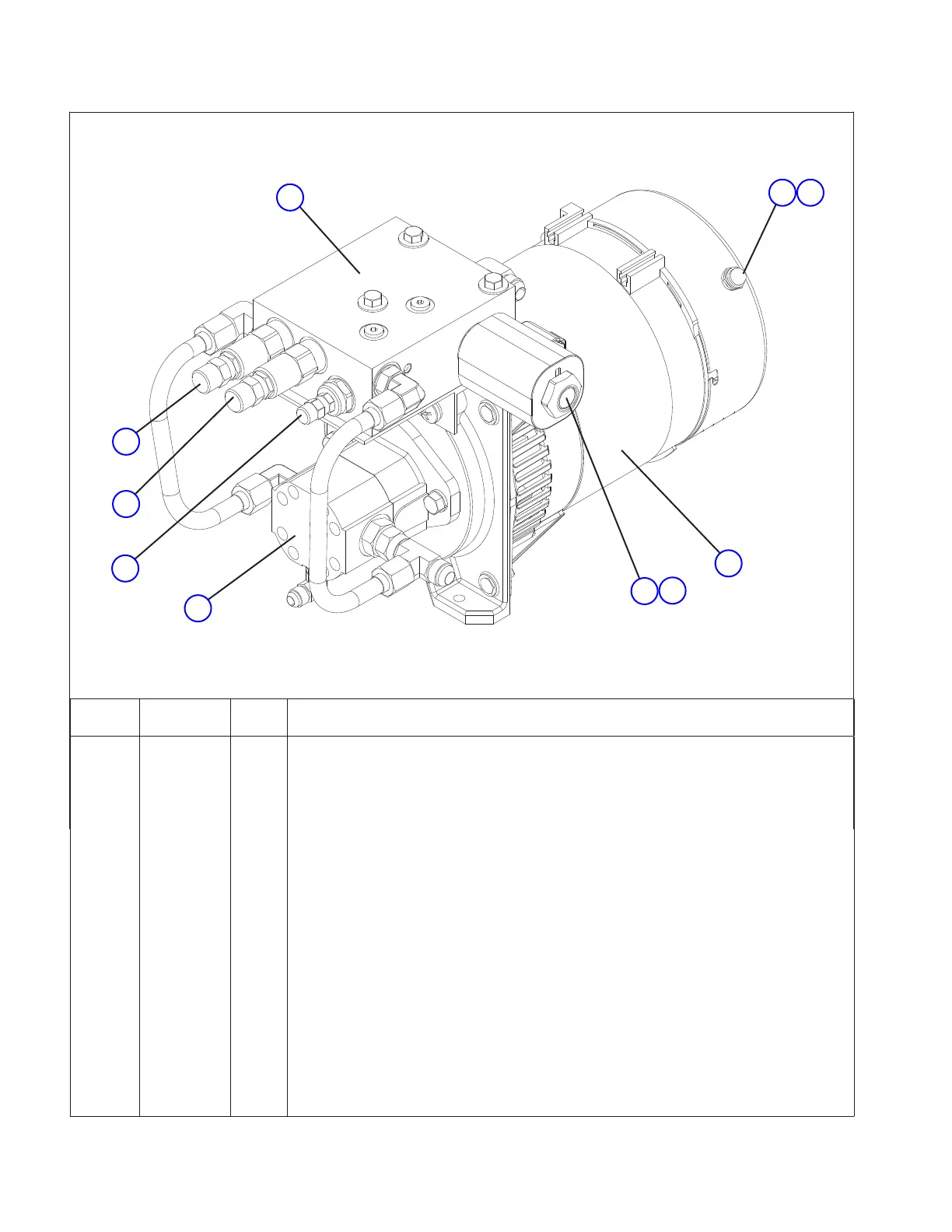

9.18 Generator - 3.5 kW
M160765AG
2
AD
7
4
10
11
9
1
6
5
8
