Skyjack SJ46AJ Parts Manual

SKYJACK, Page 82 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947

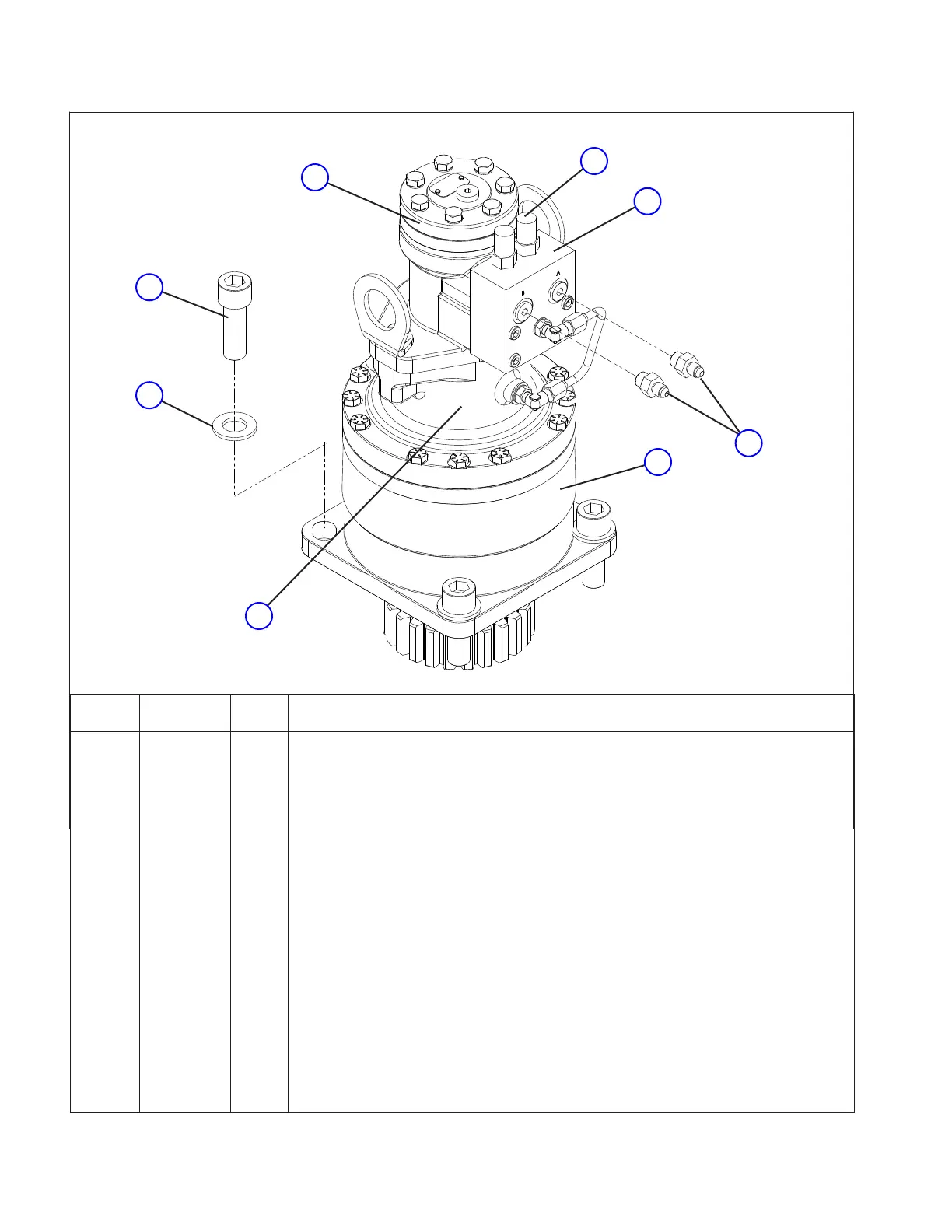

4.12 Turret Swing Drive Assembly
M1467206AA
3
8
7
6
2
1
5
4
Index
No.
Skyjack
Part No.
Qty. Description
- 167206 1 SWING DRIVE ASSEMBLY
- 167207 1 • SWING DRIVE, Turret rotate
1 154660 1 • • MANIFOLD, Swing drive
2 141499 2 • • • VALVE, Counterbalance
3 168872 1 • • MOTOR, Hydraulic
4 168873 1 • • BRAKE, Hydraulic
5 146006 1 • • GEAR, Reduction
6 701956 2 • FITTING, Straight (04 JICM - 06 ORBM)
7 702194 4 • WASHER, Flat hardened (3/4”)
8 149247 4 • BOLT, Socket head cap screw (3/4”-10 x 2.25”)
K1 168875 1 SEAL KIT, Main shaft & ring gear
K2 168874 1 SEAL KIT, Brake
