Skyjack SJ46AJ Parts Manual

SKYJACK, Page 198 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947

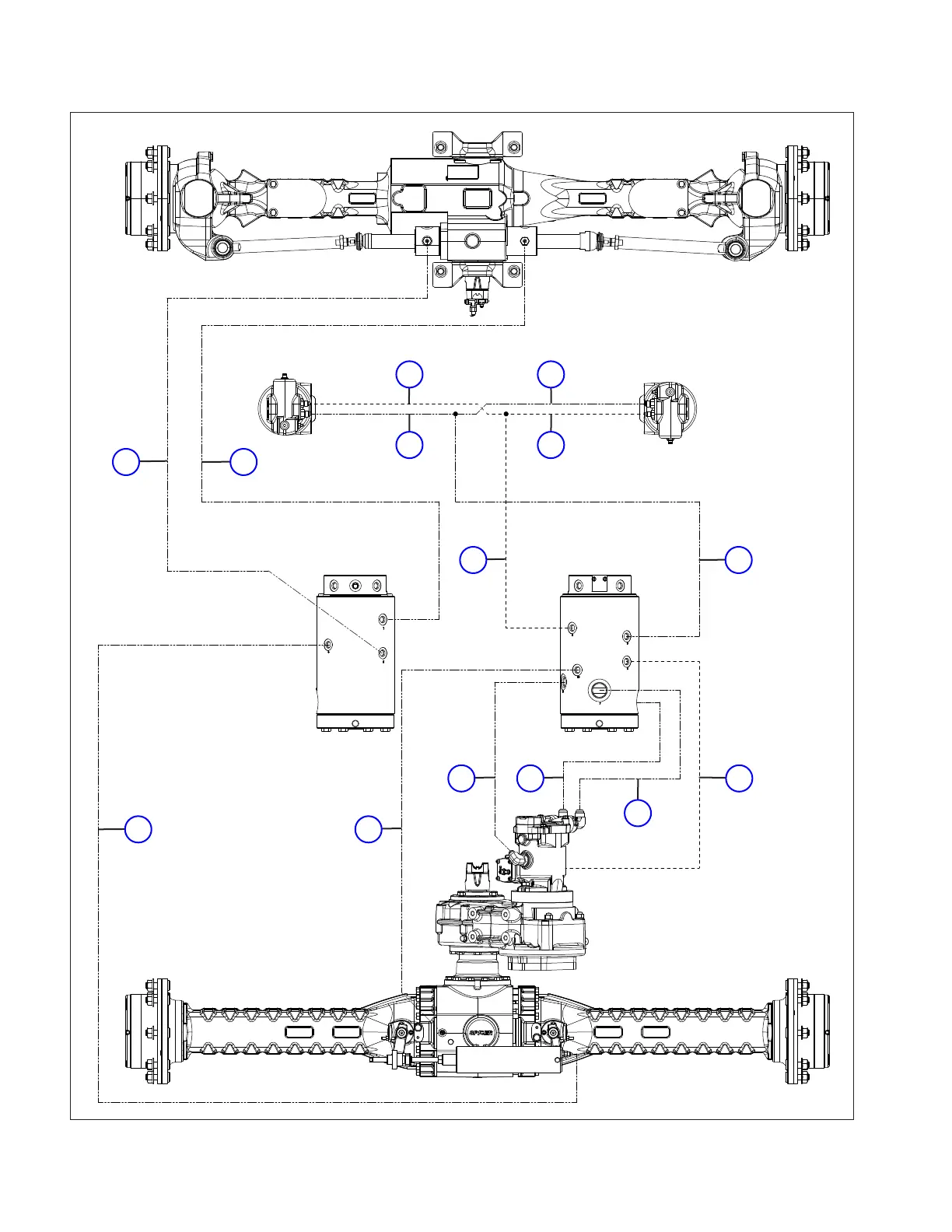

8.6 Hydraulic Hose Connection - Base (S/N 95 002 084 & below)
M163574AA
AXLE LOCK
CYLINDER
PILOT
LEFT RIGHT
LEFT
PRESSURE
1
8
7
10
9
2
6
3
A
L1
B
X1
5
4
PRESSURE
PILOT
AXLE LOCK
CYLINDER
ROTART MANIFOLD
(LEFT)
ROTARY MANIFOLD
(RIGHT)
4
2
3
1
5
7
8
9
6
10
12 14 11
13
