Skyjack SJ46AJ Parts Manual

Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SKYJACK, Page 213
M148598AC

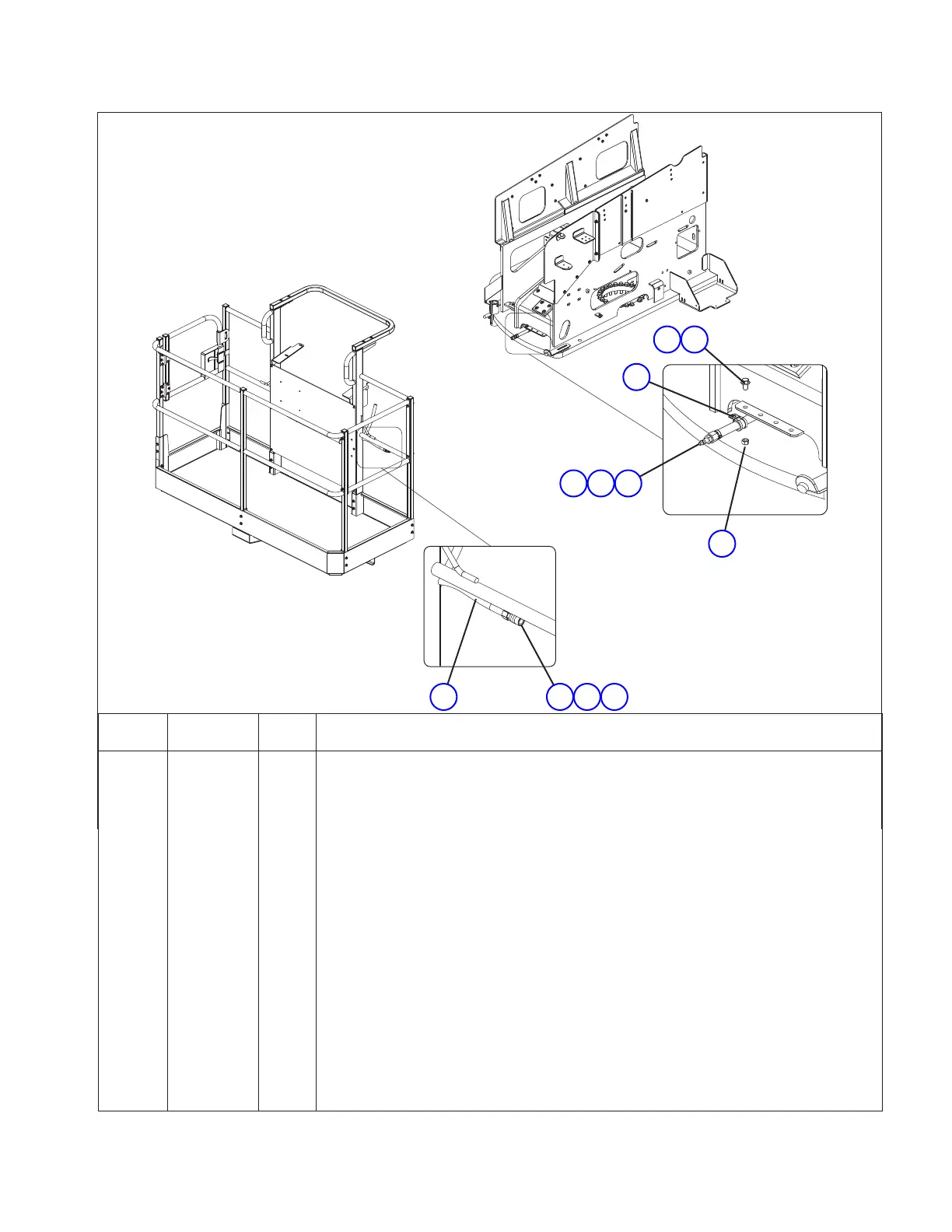

9.2 Air Hose To Platform Option
54
3
7
6
9
2
8
1
3 2
Index
No.
Skyjack
Part No.
Qty. Description
A 148598 - AIR HOSE TO PLATFORM (SJ 46AJ)
B 148599 - AIR HOSE TO PLATFORM (SJ 51AJ)
1 107883 1 • FITTING, Male disconnect (16.1262)
2 109050 2 • FITTING, Hose barb (Brass)
3 107886 2 • CLAMP
4 107884 734” • HOSE, Air (1/2” diameter), A
818” • HOSE, Air (1/2” diameter), B
5 107882 1 • FITTING, Female disconnect (#B22E)
6 152402 1 • CLAMP, Tube
7 101632 1 • BOLT, Hex head (3/8”-16 x 3/4 Grade 5)
8 103472 1 • WASHER, Flat (3/8”)
9 103978 1 • NUT, Hex head (3/8”-16 Grade 5)
