SKYJACK, Page 19
Section 2 - Operation
August 2007
SJM & SJII Series
Warning
Do not reach through the scissors assembly when
the platform is raised without the maintenance
support properly positioned. Failure to avoid this
hazard will result in death or serious injury.
2-8. Lanyard Attachment Ring (If Equipped)
Lanyard Attachment Ring - Use this ring as an attach-
ment point for safety belt/harness tethers. DO NOT at-
tach belts/harnesses to any other point on the platform.
DO NOT use this ring to lift, anchor, secure or support
the platform or any other apparatus or material.

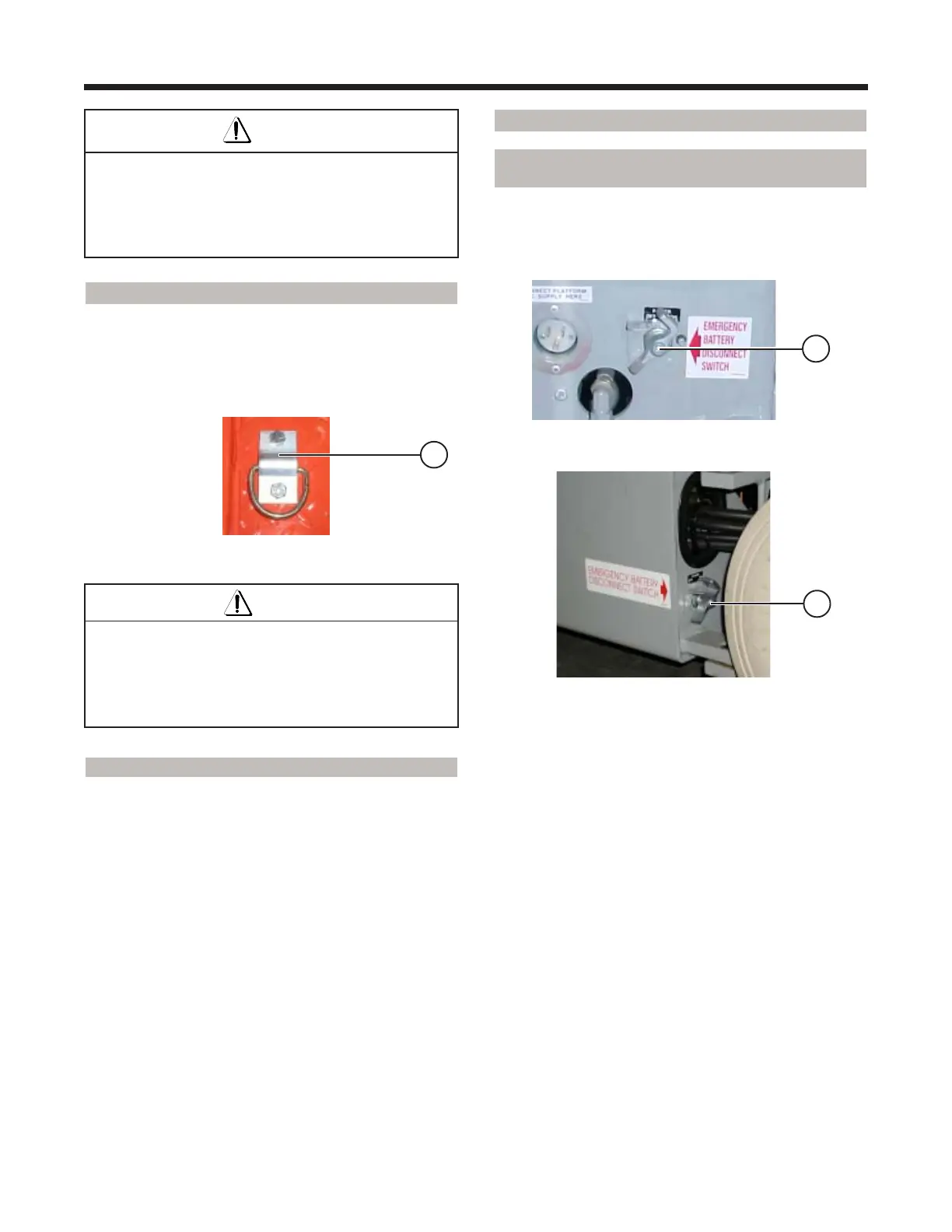

Figure 2-3. Lanyard Attachment Ring
Warning
The lanyard attachment ring is used for travel re-
straint, within the limits of the platform only. It is
not a fall arresting device! Use as such could result
in death or serious injury.
2-9. Tilt Alarm (If Equipped)
• The aerial platform is equipped with a device,
which senses when the machine is out of level in
any direction. When activated, it prevents Drive
and Lift functions of the aerial platform and an
alarm produces an audible sound accompanied
by the amber light (If Equipped). These alarms
activate once every 1.5 seconds. Lower platform
completely, then reposition machine so that it is
level before raising platform.
1
2-10. Base Controls
2-10-a. Emergency Main Power Disconnect
Switch
Emergency Main Power Disconnect Switch - This
Switch is located at the rear of the base (fig. 2-4a) or
the rear of the Hydraulic/Electric Tray (fig. 2-4b).
Figure 2-4a. SJM Series - Main Power Disconnect
Switch
Figure 2-4b. SJll Series - Main Power Disconnect
Switch
1. Emergency Main Power Disconnect Switch -
This Switch, when in “OFF” position, disconnects
power to all circuits. Switch MUST be in “ON”
position to operate any circuit.
1
1
To Next Page
