August 2007
SKYJACK, Page 32
Section 2 - Operation
SJM & SJII Series
3
2-28. Stabilizers (Model 3226 only)
STABILIZERS - Stabilizers are located at each of the
four corners of the base. To use the stabilizers follow
the procedure below:

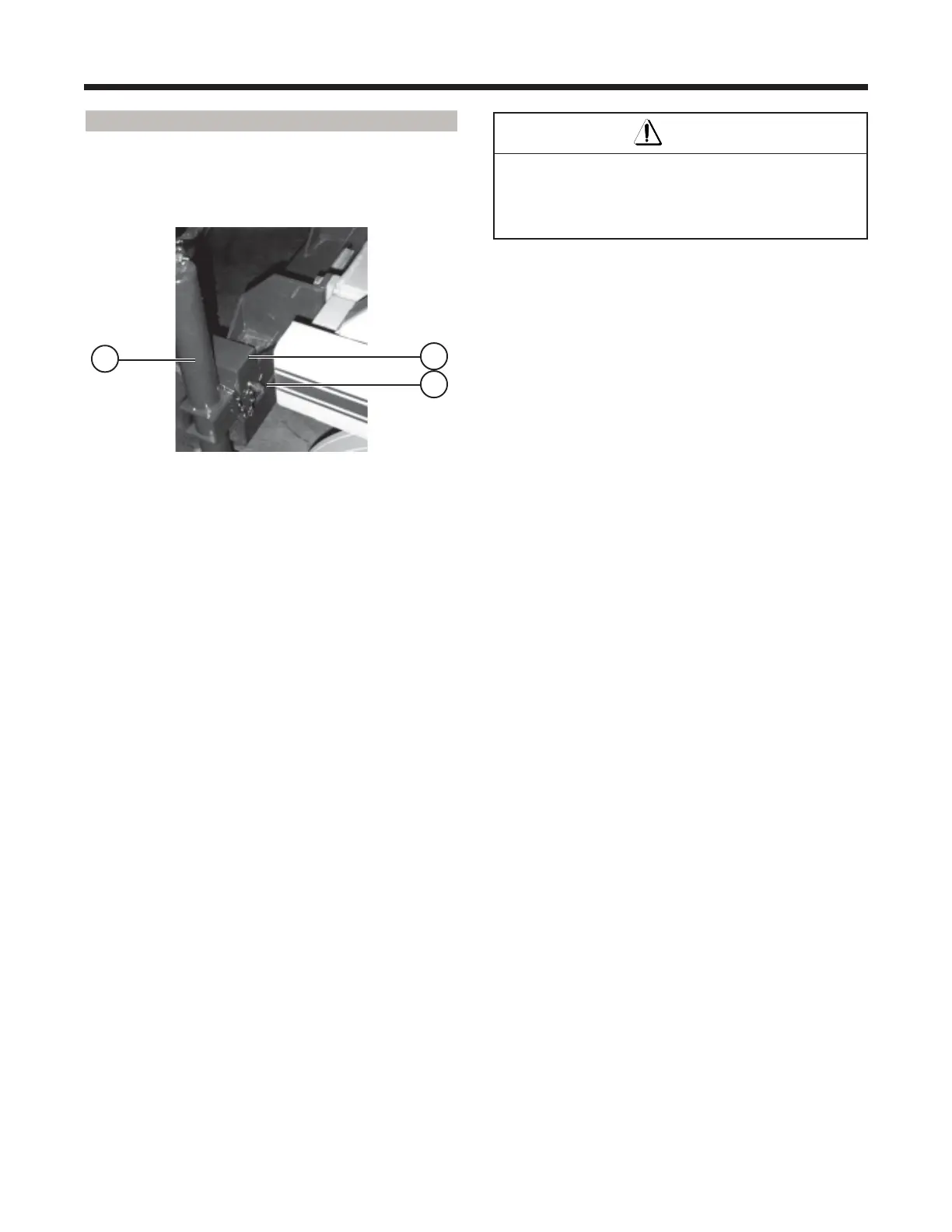

Figure 2-16. Stabilizer
1. Stabilizer Lock Pin and Cotter Pin - Remove
the Cotter Pin and Stabilizer Lock Pin and fully
extend each stabilizer.
2. Stabilizer Leg - Align the Stabilizer Leg hole with
the hole in the stabilizer support tube and reinstall
the lock pins and cotter pins.
3. Stabilizer Jack - Using the Stabilizer Jack Handle,
rotate the handle clockwise to extend the jack
screw until to make firm contact with the ground.
• DO NOT use the stabilizers to level the machine.
• DO NOT raise the tires off the ground with the
stabilizers.
Note
Repeat this procedure for each stabilizer.
To store the stabilizers, follow the above procedure in
the opposite order.
1
2
Warning
Tip Over Hazard
Failure to read the following safety precautions
could result in death or serious injury.
Important Note
Each stabilizer is electrically interlocked with a limit
switch. The work platform has a 20 foot cutout lift
function and WILL NOT lift to maximum height of
26 feet unless all four stabilizers are locked in place,
and the stabilizer foot is making firm contact with
the ground. The stabilizers MUST be fully retracted
before driving.
