SkyLink ATOMS Series User Manual

1. Uncoil the wires and run them from the door control to the garage door
opener. If you attach the wire to the wall and ceiling with the staples (not
provided), do not pierce the wire with the staple as this may cause a short
or an open circuit.
2. Remove the insulation from the end of the wire near the garage door
opener.

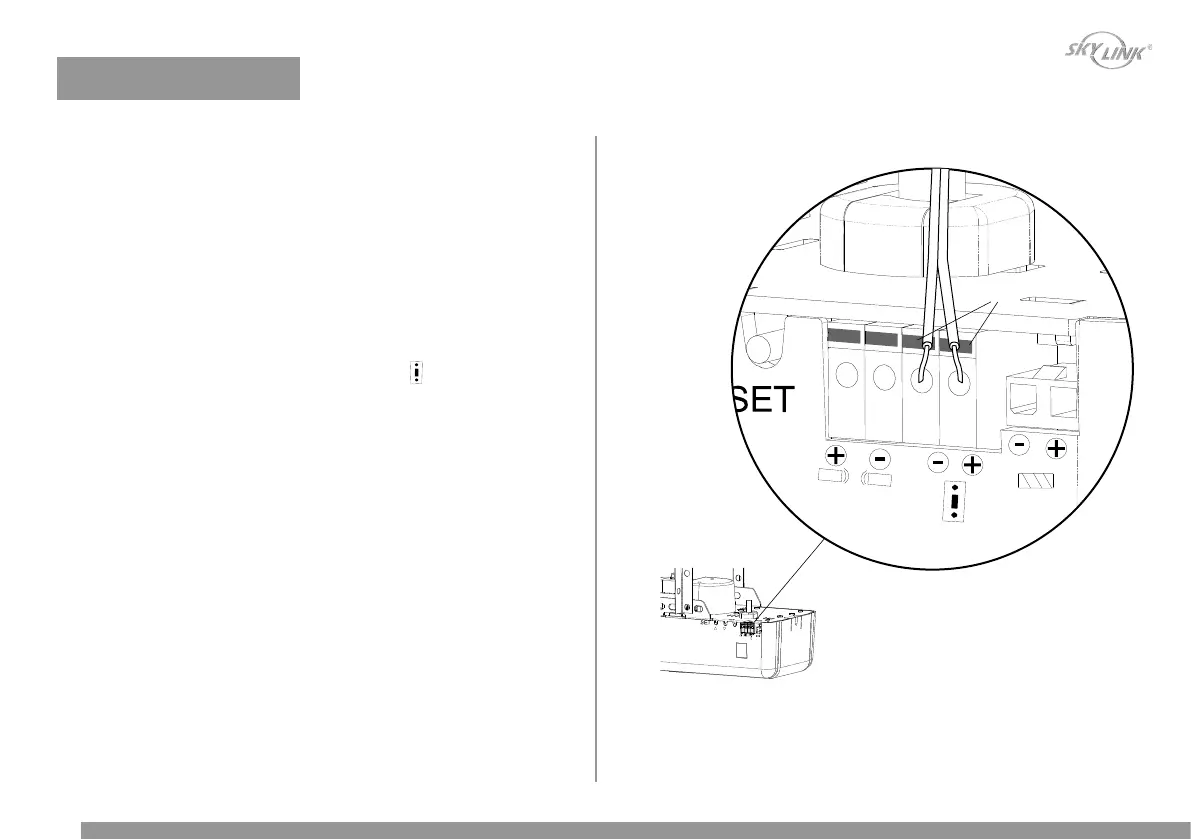

3. Connect the 2 wires to the door control terminals on the garage door
opener. To insert or release wires from the terminal, push in the tab
with screwdriver tip. The wires can be connected to either terminal.
Tab
LCD Wall Console
Step 9 – Wire the door control to the garage door opener
18
INSTALLATION

SkyLink ATOMS Series Specifications

General

Motor Type	DC
Horsepower	1/2 HP
Smartphone Control	Yes
Lighting	LED
Type	Garage Door Opener
Power Source	AC
Security	Rolling Code Technology
Operating Frequency	315 MHz
Compatibility	Most standard garage doors
Mounting Type	Ceiling Mount
Drive Type	Chain
Battery Backup	Yes
Safety Feature	Auto-reverse, Obstruction detection
Smart Features	IFTTT integration
Battery Type	12V
Number of Buttons	3
Operating Range	100 feet
