J8
J8
CAUTION
Sectional Doors
1. Center the door bracket [J8] along the vertical centerline.
2. Place the top edge of the door bracket 2”-4” (5cm – 10cm) below the top
edge of the door.
3. Mark, drill holes and secure the door bracket based on the type of door
you have.
One-Piece Doors
1. Center the door bracket on the top of the door along the vertical centerline.
2. Mark, drill holes and secure the door bracket based on the type of door
you have.
Metal, insulated, lightweight with factory reinforcement or vertical angle
brace between the door panel support and the door bracket:
- Drill 3/16” pilot holes, then secure the door bracket using the self threading
screws [E3].
Non-insulated single layer door
- Use two 5/16”-18x2” bolts, lock washers and nuts (not provided)
Wood doors
- Drill 5/16” holes through the door and secure door bracket with 5/16” – 18X2”
carriage bolts, lock washers and nuts (not provided)
Doors made of lightweight steel, aluminum or fiberglass will require
reinforcement (not provided) before installation of the door bracket.
Contact door manufacturer for reinforcement instructions.
Optional Placement
for Door Bracket
Not
Provided
Not
Provided
E3x2
E3x2
J8
J8
Sectional Door
One-Piece Door

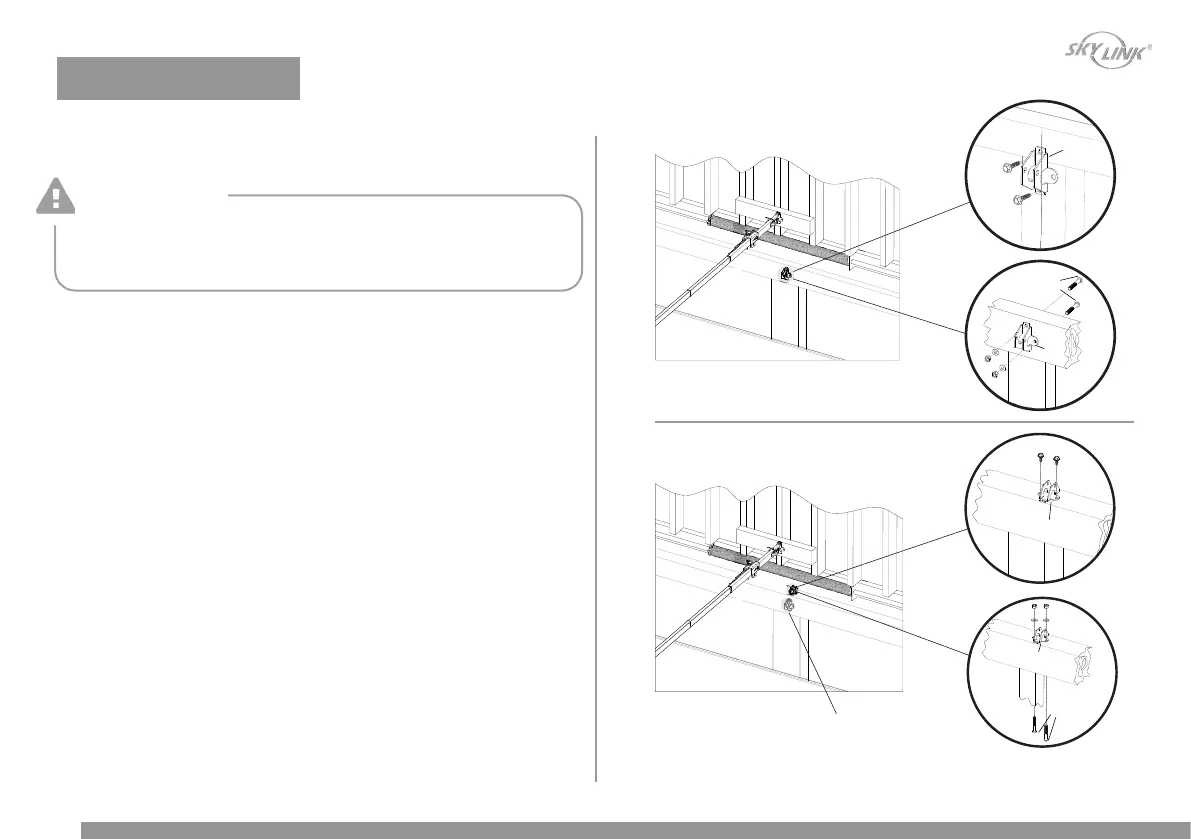

Step 5 – Install the door bracket
14
INSTALLATION
