SkyLink ATOMS Series User Manual

1. On unfinished ceilings with open structural supports or exposed joist, drill
5/32” pilot holes and secure included hanging brackets [J9] to joist using
lag screws [D3].
2. For finished ceilings without exposed joist, attach perforated angle
(not provided) to joists using lag screws [D3] and secure hanging
brackets to the perforated angle with bolts and nuts (not provided).
3. Raise garage door opener unit so that there is sufficient clearance
between door and rail. Measure the distance from each side of the garage
door opener to the hanging bracket.
4. Cut both hanging brackets to required lengths.
5. Attach the garage door opener to hanging brackets using bolts [A1]
and nuts [A2].
6. Ensure garage door opener is centered with the door.
7. Remove the 2 x 4 board and/or other protective material.
8. Close the garage door manually.
Not
Provided
D3X2
A2X2
A1X2
J9X2
D3X2
A1X2
A2X2
J9X2
Not
Provided

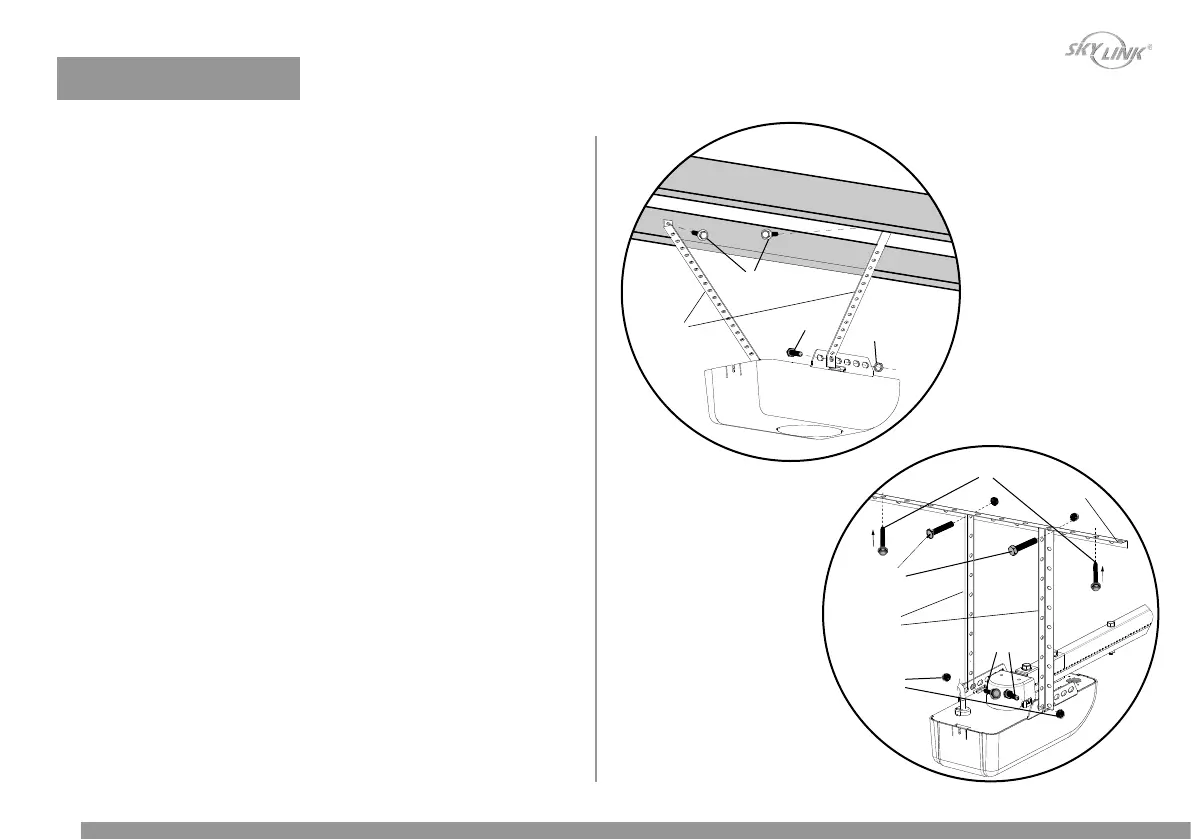

Step 4 – Hang the garage door opener to ceiling
13
INSTALLATION

SkyLink ATOMS Series Specifications

General

Motor Type	DC
Horsepower	1/2 HP
Smartphone Control	Yes
Lighting	LED
Type	Garage Door Opener
Power Source	AC
Security	Rolling Code Technology
Operating Frequency	315 MHz
Compatibility	Most standard garage doors
Mounting Type	Ceiling Mount
Drive Type	Chain
Battery Backup	Yes
Safety Feature	Auto-reverse, Obstruction detection
Smart Features	IFTTT integration
Battery Type	12V
Number of Buttons	3
Operating Range	100 feet
