Skylink offer 3 different types of door controls:
1) Push Button 2) Deluxe Wall Console 3) LCD Wall Console
Follow the installation instructions below based on the type of door
control you have.
Push Button & Deluxe Wall Console
1. Remove the insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door
control. The wires can be connected to either screw.
3. Position the door control at least 5 ft (1.5m) above floors. Mark the
locations of the 2 mounting holes and drill two 5/32 inch holes.
4. Install the screws and drywall anchors (if necessary) and secure the door
control onto the wall.
LCD Wall Console
1. Remove the mounting plate on the back of the LCD wall console
by sliding it out.
2. Position the mounting bracket at least 5 ft (1.5m) above floors. Mark the
locations of the 2 mounting holes with the mounting plate, and drill two
5/32 inch holes.
3. Install the screws and drywall anchors (if necessary) and secure the
mounting plate onto the wall.
4. Slide and secure the LCD wall console to the mounting plate.

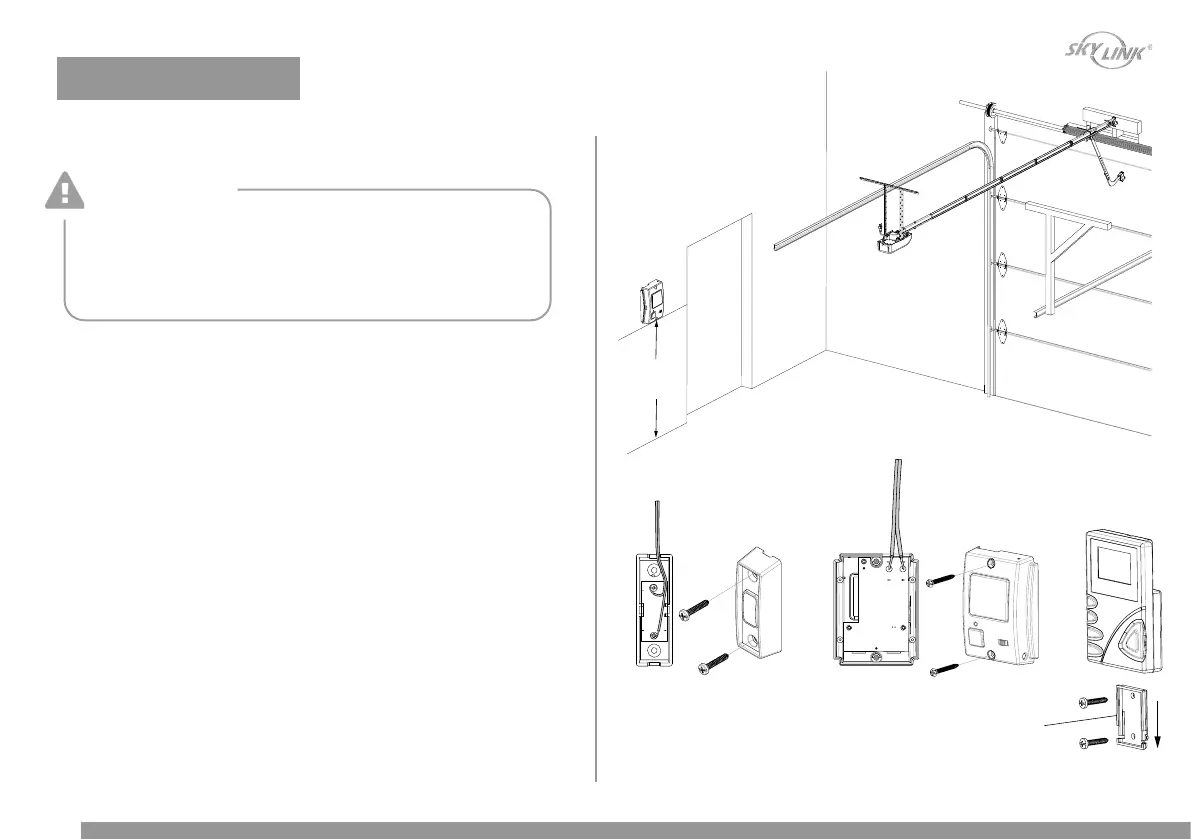

Minimum
5’ (1.5m)
Push Button Deluxe Wall Console LCD Wall Console
WARNING
• Install door control within sight of garage door.
• Door control must be at least 5 ft (1.5 m) above floors.
• Never permit children to operate door control.
• Always keep garage door in sight until door is fully closed.
• Do not operate door unless it can be seen clearly.
Mounting Bracket
Step 8 – Install the door control
17
INSTALLATION
To Next Page
