Secure 3 different color air tubing to LG. Air in, Air out &
Brake
Use the same color code throughout air installation.
Trial fit LG and mark location of 4 bolts. I have used self tap
screws with great success over the years. But M4 bolts and
blind nuts will also do the job.
Drill pilot holes and secure LG to blocks.
Check operation of LG. Use air line clamps and
cable ties to secure pipes and servo wires.
Cut pipes to length and terminate with quick
disconnects.
Hinge bottom of gear door with
door hinge. Scuff the surface and
use aeropoxy.
Secure hinge with small screws.
Drill hole in door to fit pushrod
bracket. (parts not supplied by
Skymaster) (Mark location of bracket after you have establish
the correct location.
Fit other bracket around oleo.
Make up pushrod link between oleo and door. Retract LG.
Check fit of door and adjust length of pushrod until door closes
correctly.
Fit and glue winglets to wing tips. (do this after painting)
Trail fit both wings to fuselage. Bolt in position and check
operation of LG. Trim fuselage if needed!
P-13
Assembly & Operation Manual

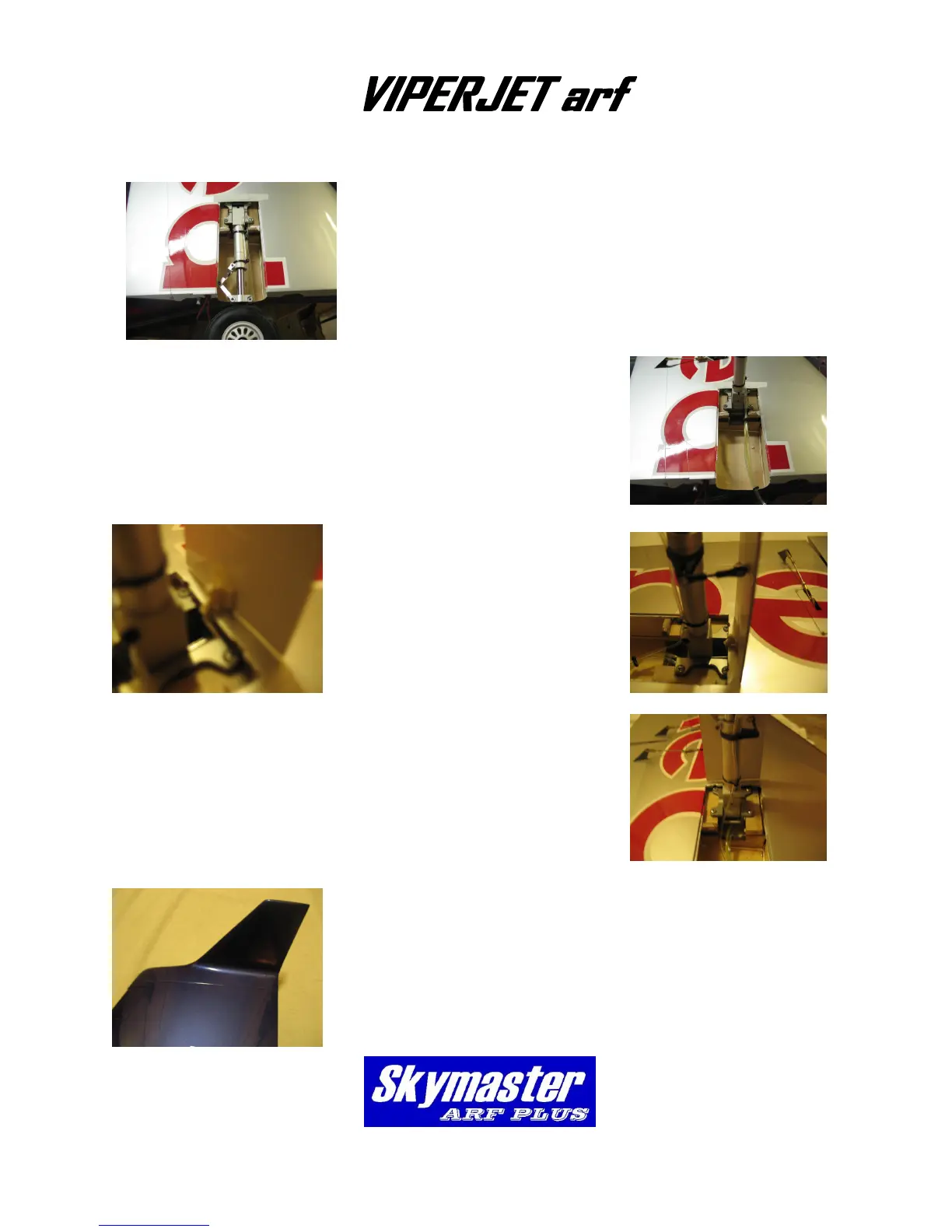

Photo 19
Photo 20
Photo 22 Photo 21
Photo 23
Photo 24
