AIR DIAGRAM
P-23
Assembly & Operation Manual

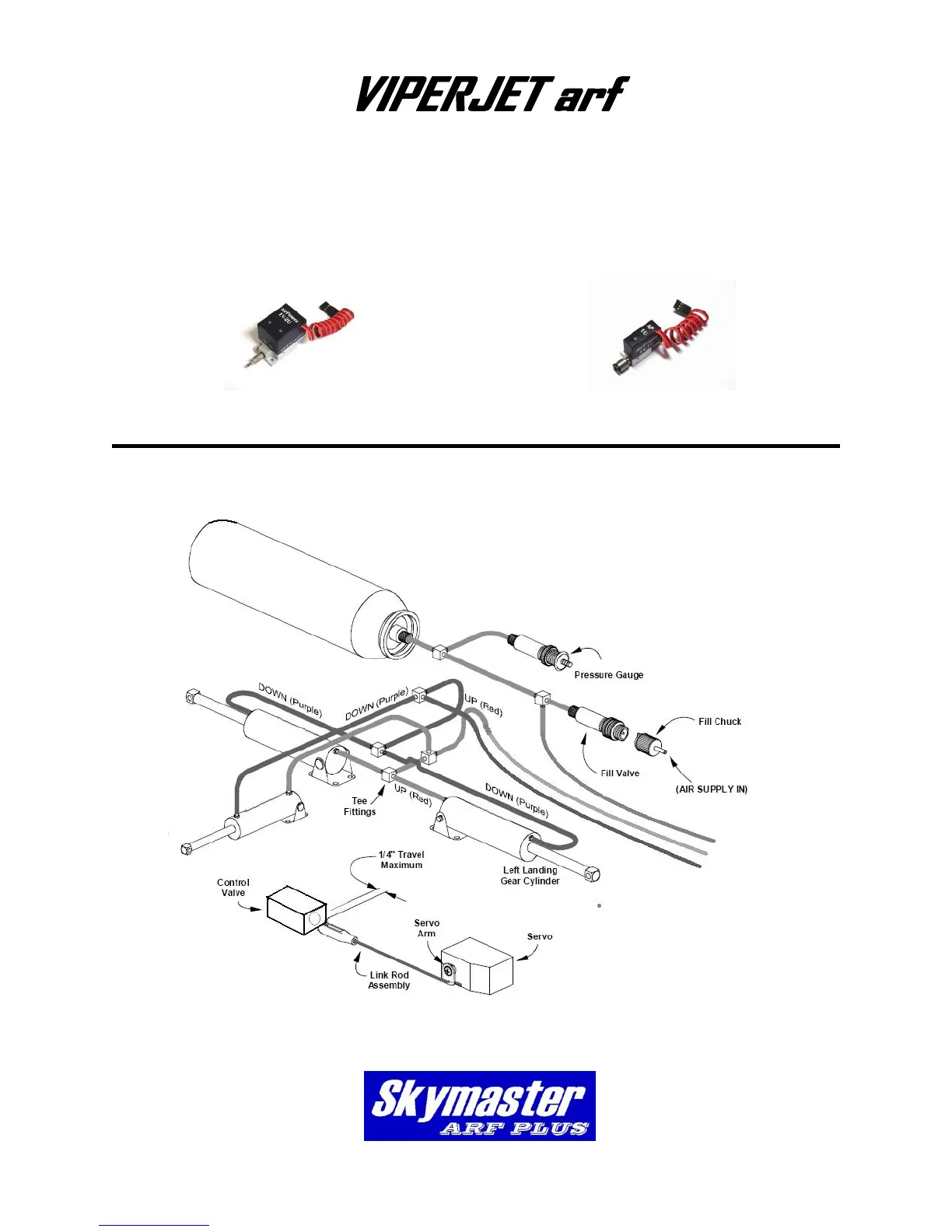

Photo 58 Diagram for retracts
For scale door installation the Viper require additional 2 way electronic valves. The
main doors in the fuselage will stay close before and after retraction. This can eas-
ily be programmed with EV5U.
Photo 57 1 way Photo 56 2 way
