FUSELAGE
Make sure you have a good stand for fuselage. Once the nose wheel and ventral fins are
installed it is very difficult to handle on a flat surface. You will need to assemble the rest
of the Viper on this stand.
Locate the 4 x M5 bolts and washers for fuselage.
Align fuselage and secure with 4 bolts. Check fit
of canopy once the fuselage halves are joined.
Route all loose servo wires to nose. Secure wires
with cable ties to formers.
Also install 2 x Aileron and
2 x Flap extension wires.
Turn fuselage upside down
Locate nose LG unit.
Install JR DS8511 steering
servo. Bolt with 4 x M3 bolts and lock nuts.
Centre servo and install pushrod.
Mark location of retract unit.
Drill 4 2mm pilot holes
Fit 2 x air tubing to retract unit! Note color code of wires.
Secure LG to LG blocks. Use 4 x self tap screws.
Retract unit and check for clearance all around wheel.
P-17
Assembly & Operation Manual

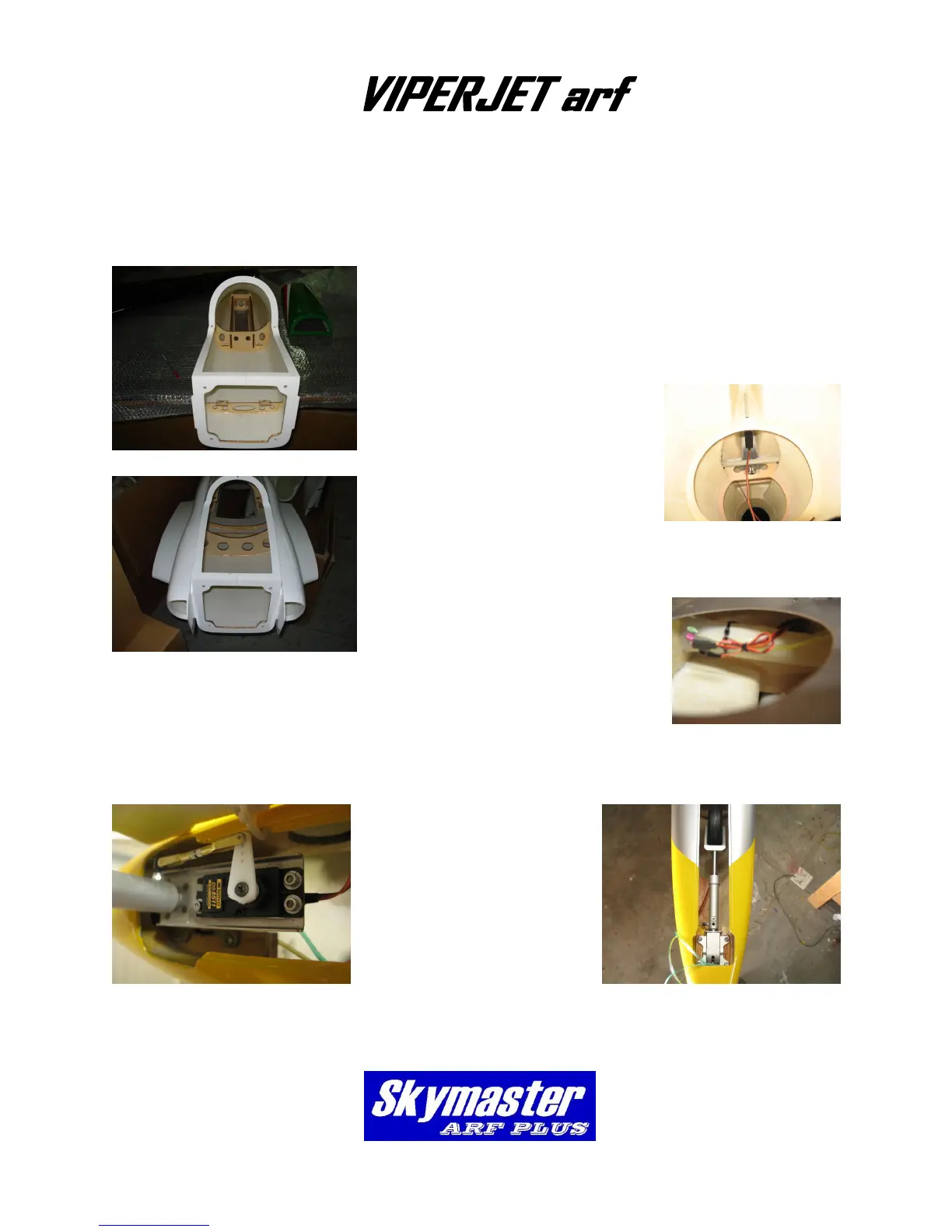

Photo 36
Photo 37
Photo 38
Photo 39
Photo 40 Photo 41
