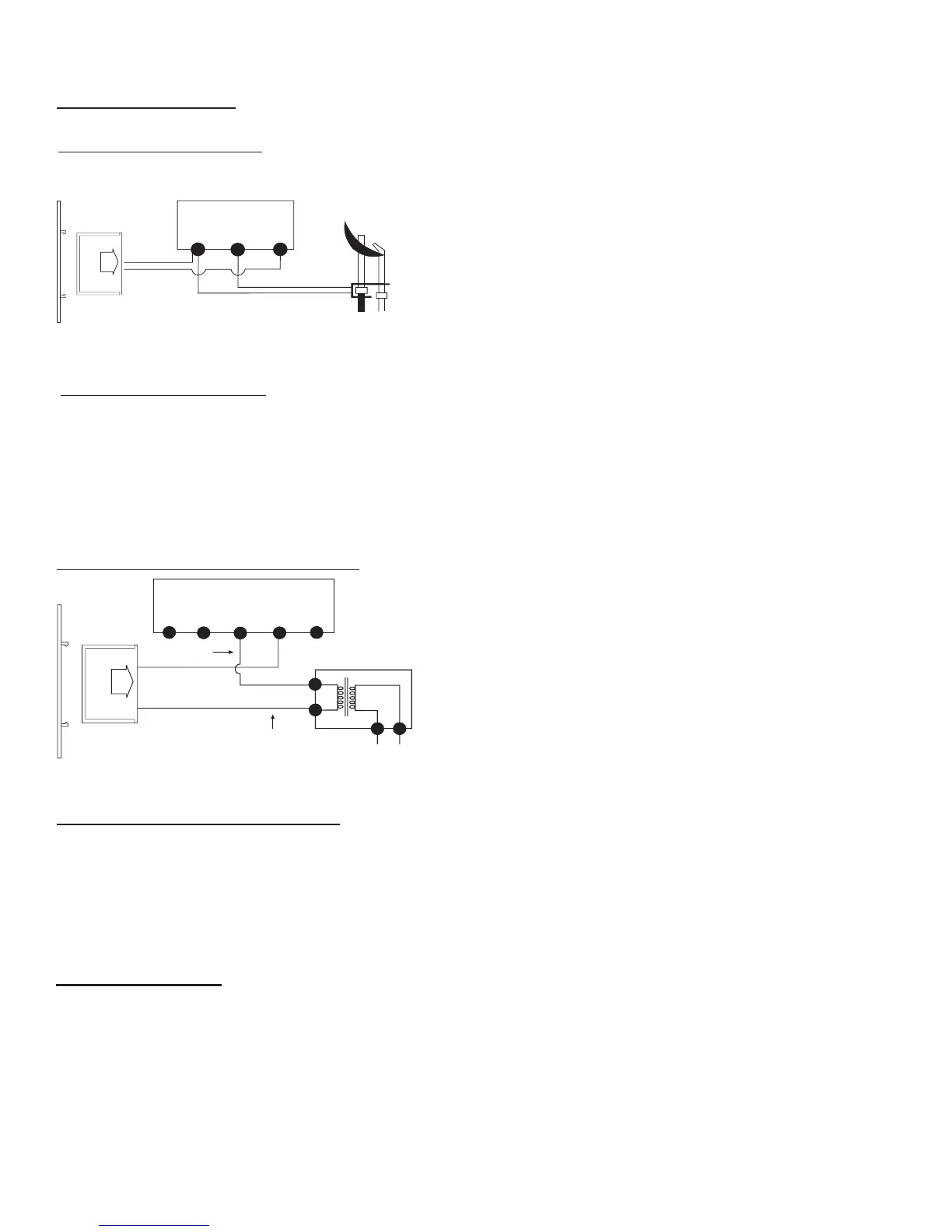

WIRING INSTRUCTIONS
A qualied electrician should install the remote control system.
TERMINAL BLOCK
ON MILLIVOLT
GAS VALVES
TH
TP
TP
TH
THERMOPILE/
PILOT LIGHT
REMOTE
RECEIVER
Connect one wire from the remote receiver to the TH terminal on the gas •
valve.
Connect the other wire from the remote receiver to the TH/TP terminal on
•
the gas valve.
WIRING MILLIVOLT VALVES
MILLIVOLT SYSTEM CHECK
Ensure that the pilot ame is lit.•
Slide the 3-position button on the remote receiver to the • ON position. The main gas ame (i.e., the re)
should ignite.
Slide the button to • OFF. The main ame should extinguish (the pilot ame will remain on).
Slide the button to • REMOTE, then press the ON button on the transmitter to change the system to on. The main
gas ame should ignite.
ELECTRONIC SPARK SYSTEM CHECK
Slide the 3-position button on the remote receiver to the • ON position. The spark electrode should begin sparking to ignite the pilot.
After the pilot ame is lit, the main gas valve should open and the main gas ame should ignite.
Slide the button to
• OFF. The main gas ame and pilot ame should both extinguish.
Slide the button to
• REMOTE, then press the ON button on the transmitter to change the system to on. The spark electrode should
begin sparking to ignite the pilot. After the pilot is lit, the main gas valve should open and the main gas ame should ignite.
WIRING ELECTRONIC SPARK IGNITIONS
ELECTRONIC MODULE
TR
TH
REMOTE
RECEIVER
neutral wire
24VAC
hot wire
120VAC
110/24VAC
Transformer
The remote control receiver can be connected, in series, to a 24VAC
transformer to the TR (transformer) terminal on the ELECTRONIC
MODULE. Connect the hot wire from the 24VAC transformer to either
of the wire terminals on the remote receiver. Connect another wire be-
tween the other receiver wire terminal and the TH (thermostat) terminal
on the ELECTRONIC MODULE.
REV. 3/5/09 Page 6
SECURITY CODES
This transmitter has one of 1,048,576 unique security codes. It may be necessary to program the remote receiver to learn the security
code of the transmitter upon initial use, if batteries are replaced, or if using a replacement transmitter.
Make sure the receiver’s slide switch is in the • REMOTE position.
Press and release the • LEARN button on the receiver.
When you hear the “Beep”, press and hold the • MODE button for about 2 seconds on the transmitter.
You will then hear a series of beeps that indicate that your new transmitter has been accepted by the receiver.•
