23

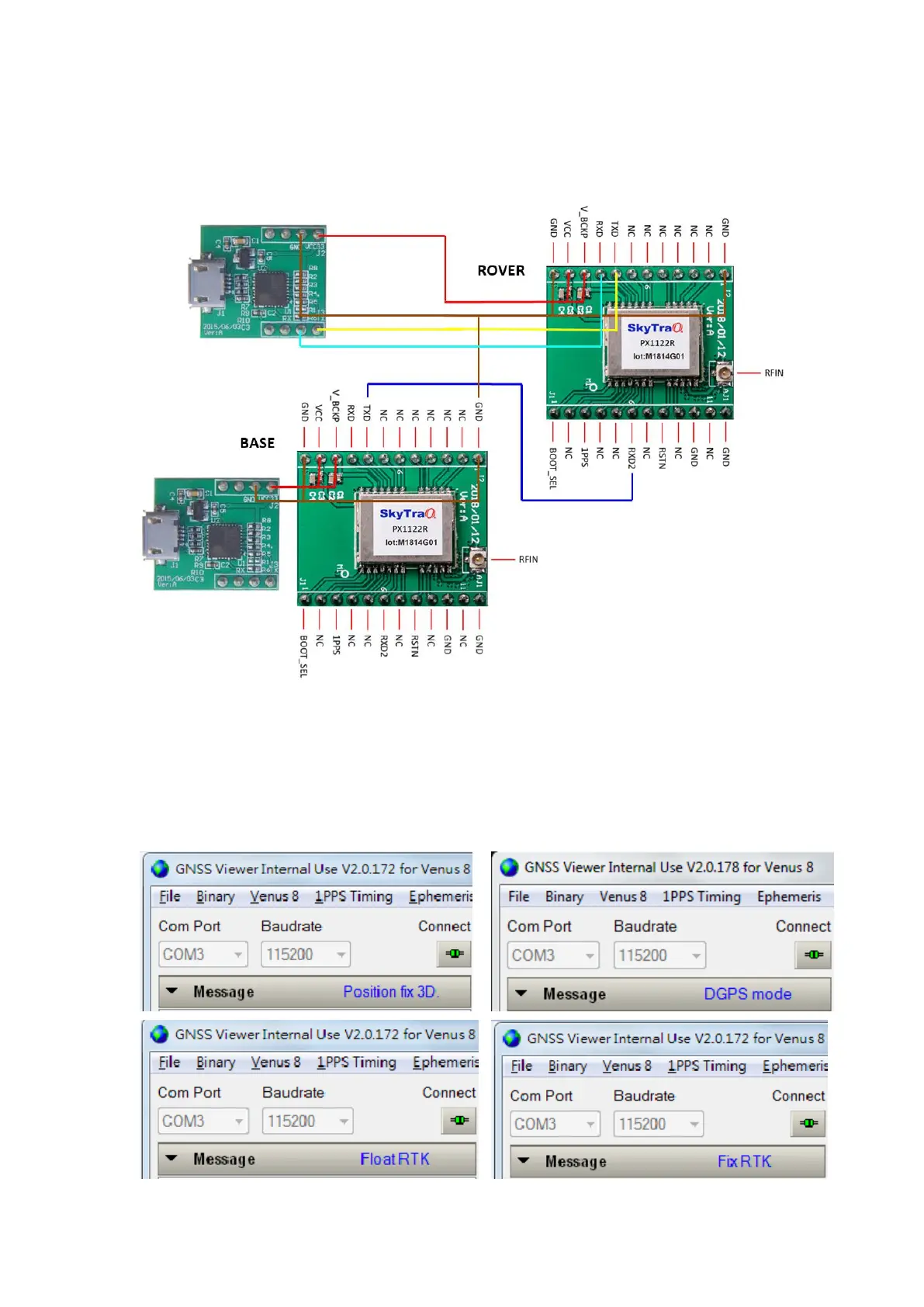

To become acquainted with NS-HP-GN2 RTK rover operation, it’s best to first use GNSS Viewer to
monitor and interact with it. One possible setup scenario is as below.
With two antennas connected and placed at location having clear sky view to receive GNSS signal,
base connected to laptop USB port for power, rover output NMEA data to GNSS Viewer, one should
see rover state going from Position Fix 3D or DGPS mode, to Float RTK, to Fix RTK if earlier mentioned
pre-conditions for RTK operation is met.
