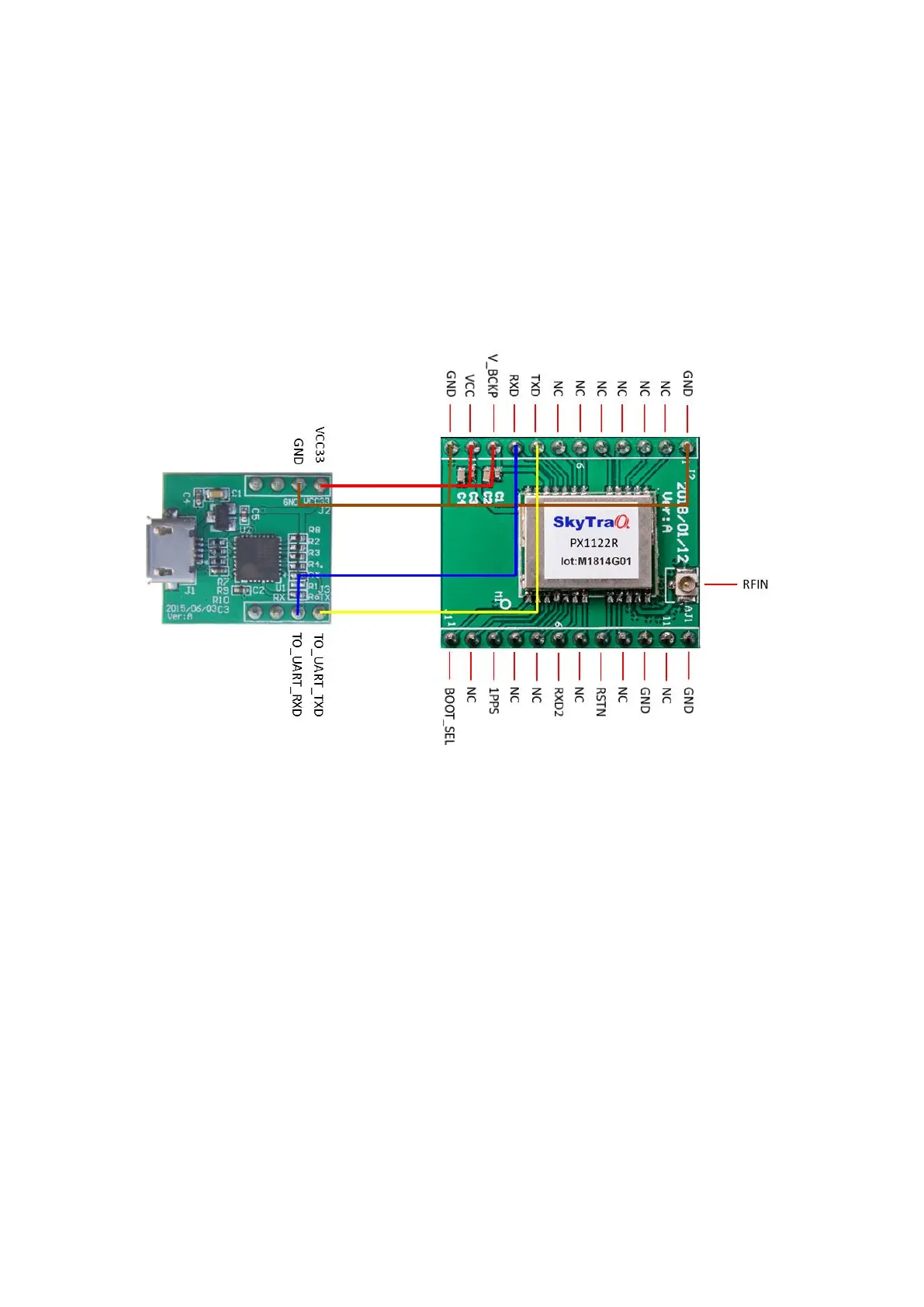

SkyTraq NS-HP-GN2 - FIRMWARE UPDATE; Firmware Update Connection Diagram

30
11. FIRMWARE UPDATE
When there is firmware update release, it’ll be made available on the NS-HP-GN2 web store product
page.
To update firmware using GNSS Viewer:
1. Connect TXD and RXD to an UART-to-USB bridge breakout board for connecting to a Windows PC
