RPLIDAR C1

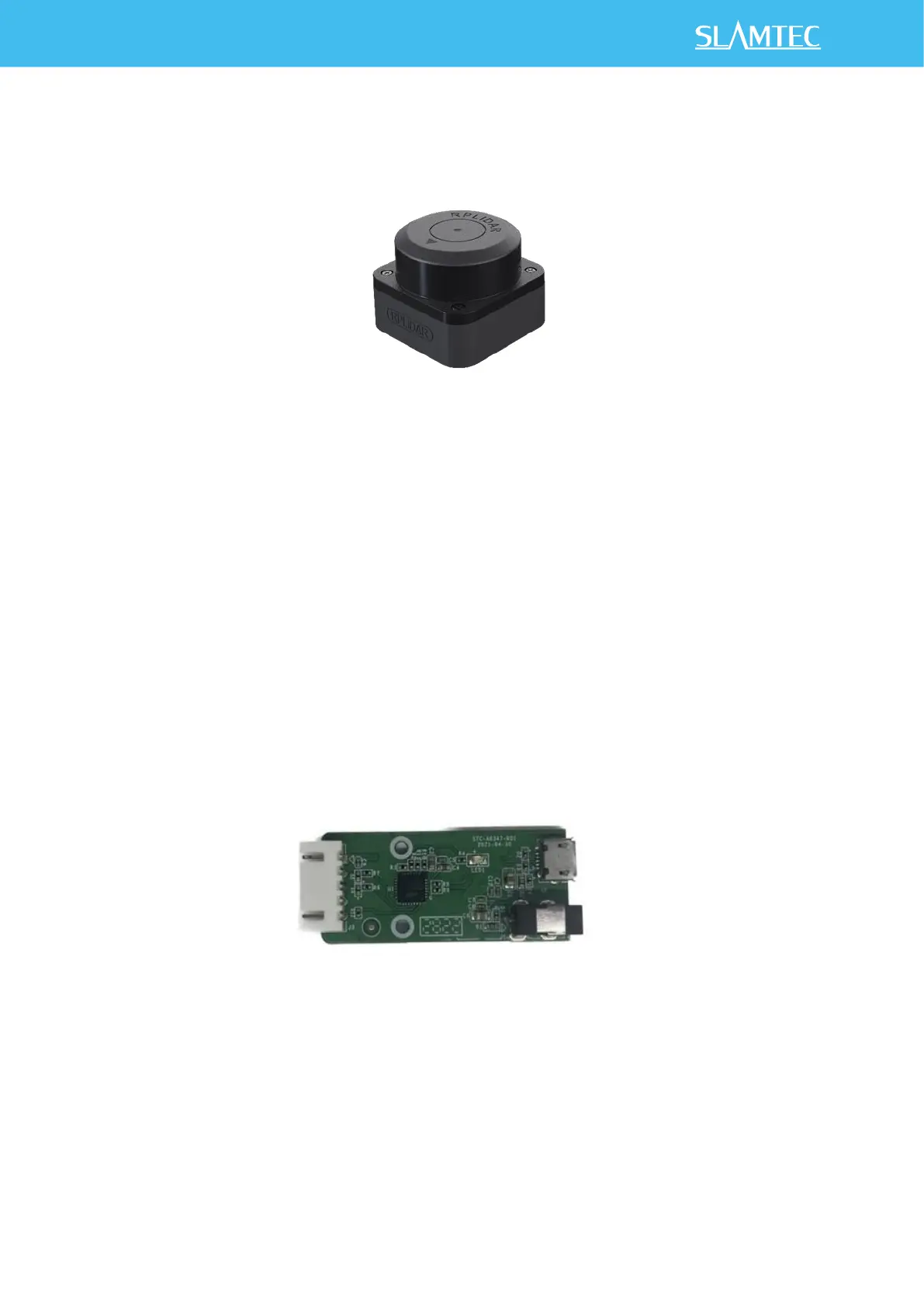

Figure 1-2 The RPLIDAR C1
The RPLIDAR C1 development kit contains standard RPLIDAR C1. The drivable
motor controller can be used to configure the scan frequency by tuning motor
speed. Developers can also choose to turn off the motor for power saving
purpose.
RPLIDAR usage and interface definition will be introduced in the coming
sections.
USB cable
Figure 1-3 RPLIDAR USB cable
