16
5693
21 2023
-
SE60/185 s2
MC_0258

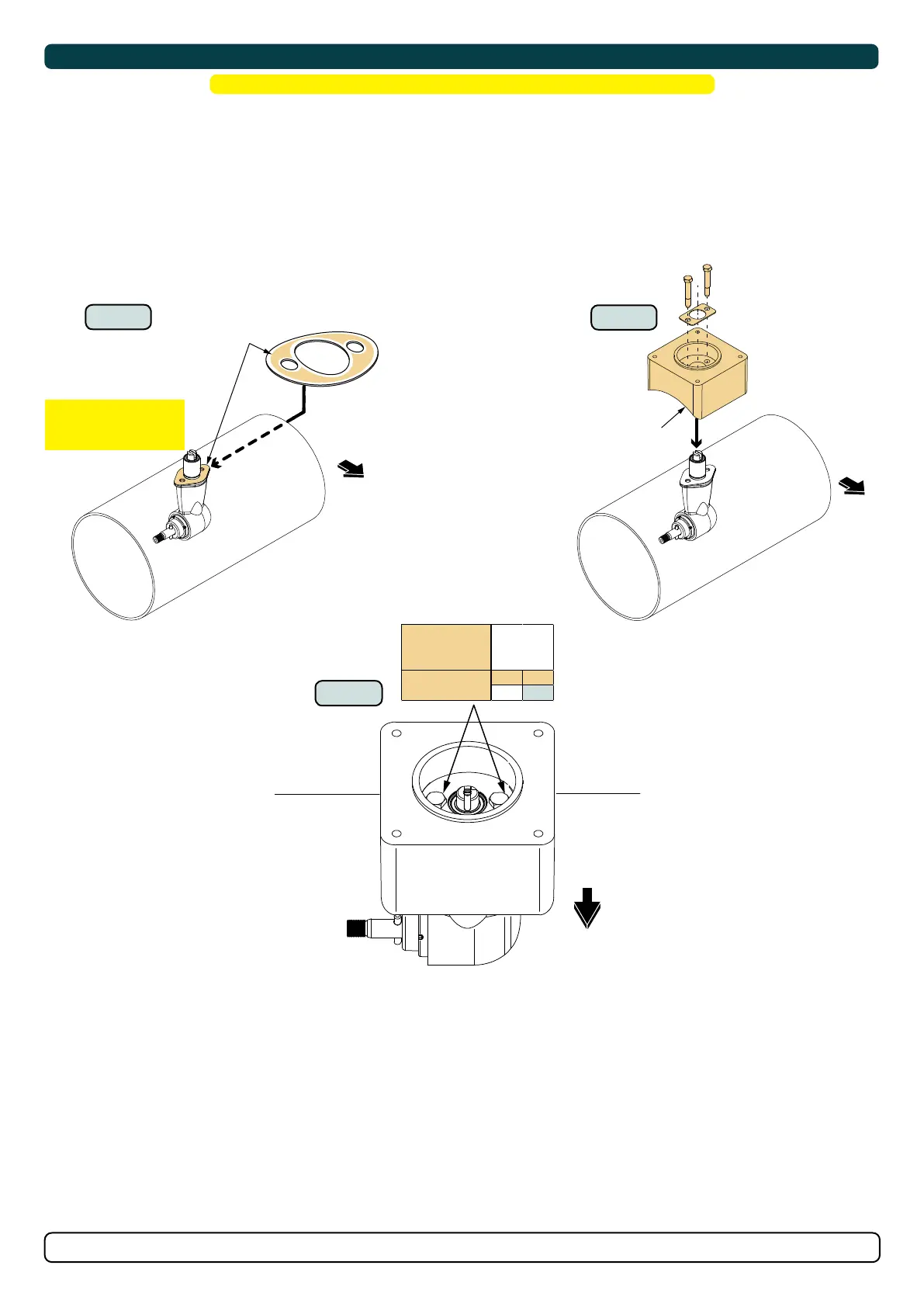

Gear Leg & Motor Bracket Installation
! Please refer to the graphic for special considerations relating to your model !
8. Apply appropriate sealant to both sides of the gasket and place on the gear leg. Place the gear leg in the tunnel (without the propeller). Use
appropriate sealant to ensure that no leakages occur. (NB: See your sealant data sheet for the correct application process.)
9. Install the top motor bracket and gear leg gently together.
10. Fasten the gear leg and the motor bracket with the bolts provided. Tighten to torque as shown.
MG_0617
BOW
BOW
Apply MS Polymer sealant
or equal to both sides of
the gasket
IMPORTANT
Do not apply sealant to
the bolt holes.
8
BOW
Motor bracket
9
10
Tunnel Diameter
Nm lb/ft
18 13,3
Fasten
/140mm
/185mm
