Ref : 26702 5 07/01/15

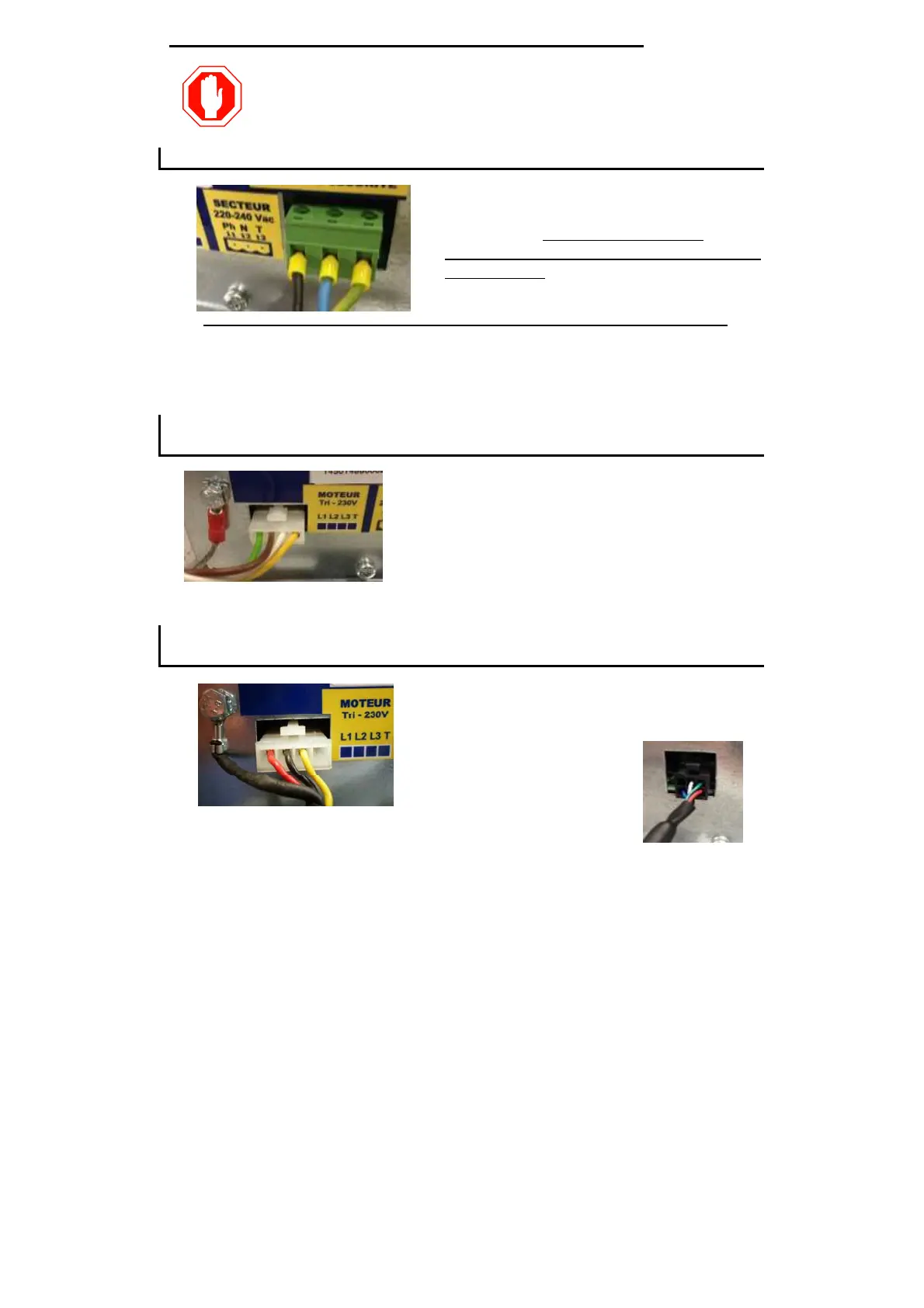

Part 1 : The Ariane 3 card connections
The card efficiency is first subjected to a mechanical
setting in conformity with the door.
Necessary connectors are supplied in a bag.
MAINS POWER CONNECTION – 3x7.62 – 230V 50Hz – 2A connector
The 230 V power supply must not come
from the primary of a 110/230/400V
transformer because a damaging
overvoltage can occur if the transformer
is not loaded.
The connector must not be handled with power switched on
If the voltage between neutral and ground is very different from 0 volts,
power the card via an insulating transformer (example : case of connection
in TI state).
ASYNCHRONOUS MOTOR CONNECTION : 4x minifit (made in
factory)
Make sure that the motor cable shielding
is properly connected to the Ariane card
package.
Make sure that the motor’s ground is
connected to the connector (EMC
requirement).
BRUSHLESS MOTOR CONNECTION : 4x motor minifit and 6x hall
effect sensors microfit (made in factory)
Make sure that the motor cable shielding is
properly connected to the package and that
the 3 phase wires are properly installed on
the minifit connector.
Make sure that the 6x hall effect sensors microfit
connector of the Brushless motor is properly
connected to the right side of the ARIANE body.
