Ref : 26702 27 07/01/15
PART 8 : Maintenance tasks
CARD INPUTS/OUTPUTS DISPLAY
The ARIANE 3.1 card inputs/outputs state can be displayed from the
display in the sticks mode :
By default, the card displays the frequency sent to the motor "Fr00"
To go into the seven segment display mode :
Press displays the encoder position "0000"
Press again
displays the segments " ¦ _ ¦ _ "
To set the display mode, press

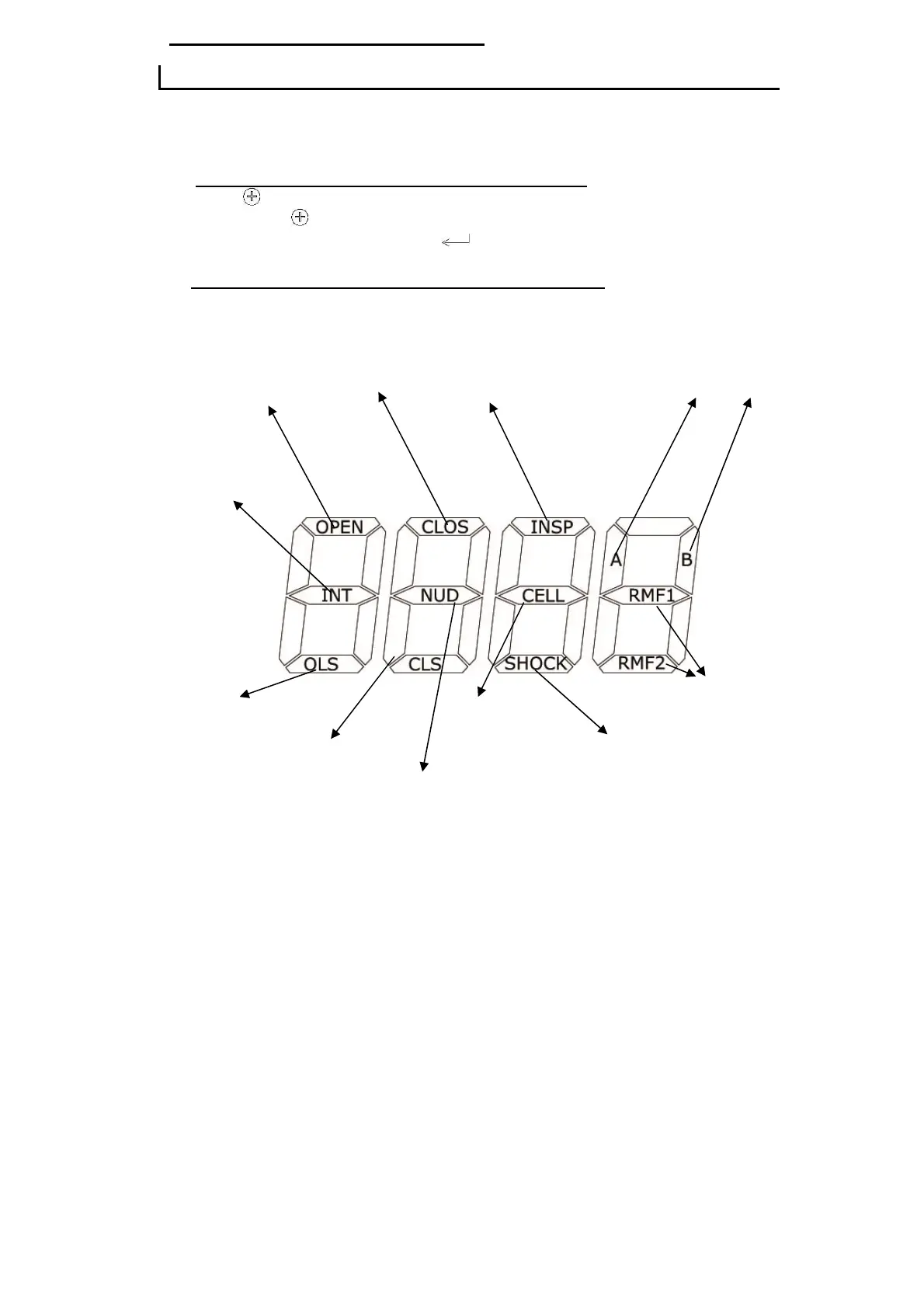

Details about the meaning of the segments
(leds lit Inputs/Outputs active)
Door open Door close
command command
input input Inspection Encoder channels A and B
input
Intermediate
open
command
input
Multifunction
Opening limit Cell relay outputs
Switch output input
Shock output
Closing limit
Switch Nudging
output forced closing
command input
