Ref : 26702 6 07/01/15

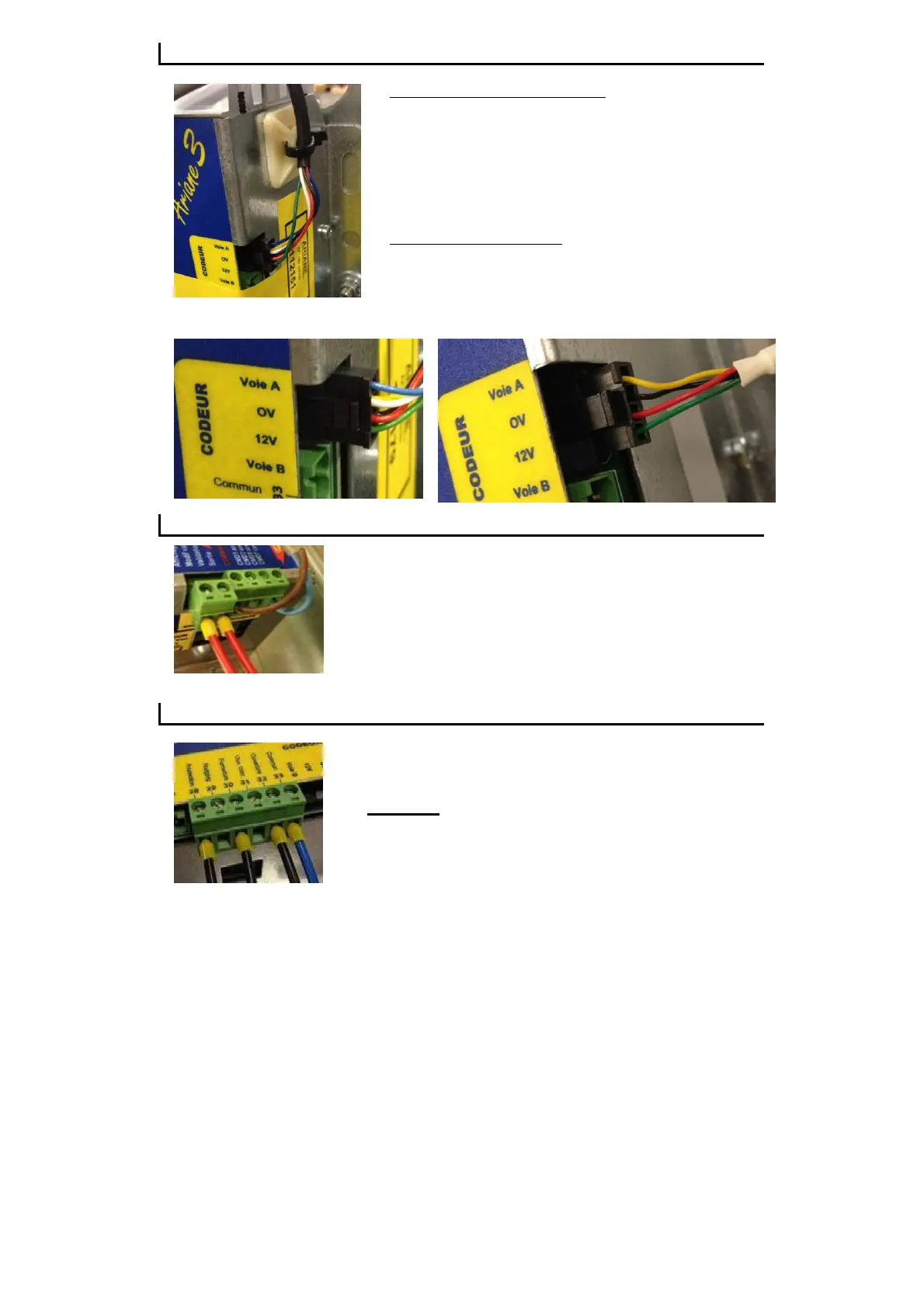

ENCODER CONNECTION – 4x microfit connector (made in factory)
For an Asynchronous motor
Connection of the counting cells.
Make sure that the encoder’s 6 wires are
properly connected, that the crimpings are in
good condition, and that the wire is
immobilized
For a Brushless motor
Connection of the encoder integrated with the
motor
Make sure that the 4 wires are crimped
correctly and that the cable is immobilized
SAFETY CHAIN CONNECTION – 2 x 5.08 connector
Connect the safety chain to the 2 x 5.08 connector. Check
the factory wiring of the door contacts on the 4 x 5.08
connector is conformity with the electrical drawing regarding
there is one or two contacts. (One in lateral opening, 2 in
central opening)
There is no interaction between the card’s operation and the
safety contacts.
CONTROLLER COMMANDS CONNECTION – 6 x 5.08 connector
All the orders must come from dry contacts which switch
the 0V common supplied by the card.
It is not necessary to apply voltages to these inputs.
Warning : When an operator driven by contactors is
replaced, do not use the old contactors flakes as
command contacts, but use relays which switch low
currents (20 mA at 12 VDC).
