Smach EFE 2500A - Exploded View of Dispensing Head

15
EFE 2500A /AF - 4000A/AS/AN

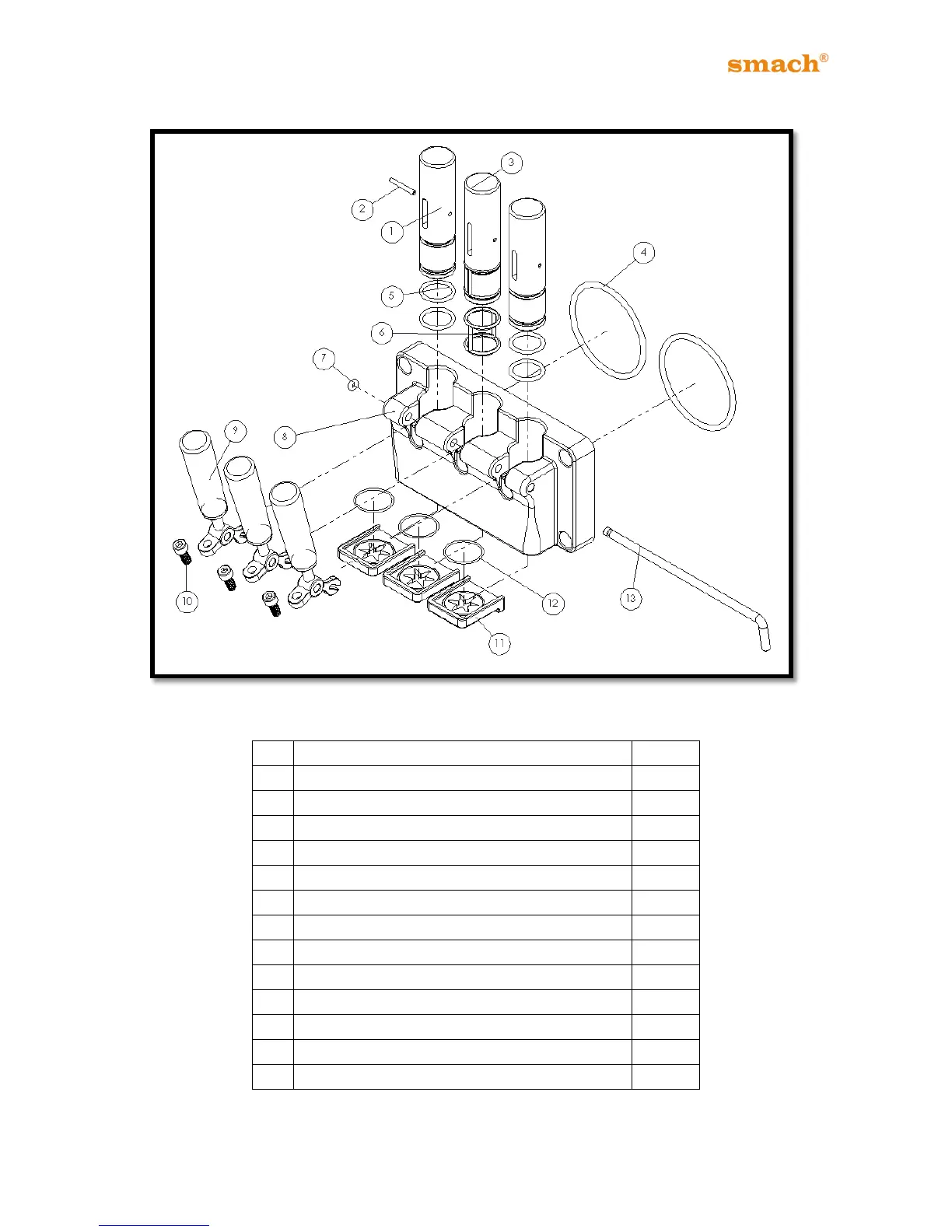

7.2 Exploded View of Dispensing Head
Figure 4
NO
PART NAME
QUA.
1
Piston
2
2
Piston Pin
3
3
Middle Piston
1
4
O-Ring 89,69 x 5,33
2
5
O-Ring 27,2 x 3,53
4
6
Middle Piston O-Ring
1
7
4,8 x 3,53 O-Ring NBR
1
8
Dispensing Head
1
9
Piston Lifter
3
10
Speed Adjuster
3
11
Nozzle
3
12
O-Ring 34,65 x 1,78
3
13
Lifter Rod
1
Table 4
