14.3 FITTING THE ASSEMBLED DISPENSING HEAD

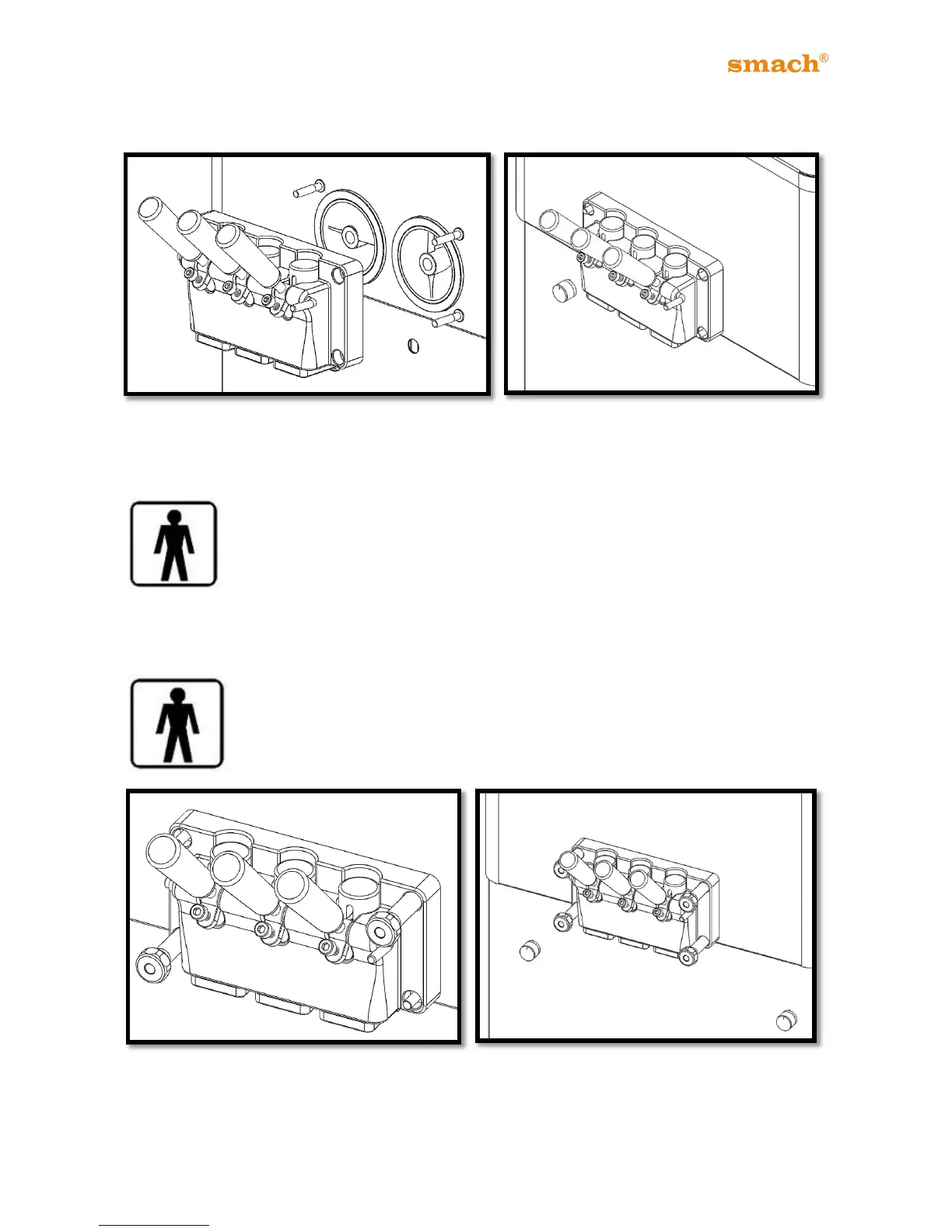

Figure 34 Figure 35
14.3.1 Placing the Dispense Head:
Place the dispense head over the 4 fitting bolts. Make sure the dispense
handle is in the UP position so Soft-Serve liquid does not run out.
14.3.2 Tightening the Screws:
Tighten the 4 Dispense Head Screws in a cross order (i.e., left-hand top
and right-hand bottom and then right-hand top and left-hand bottom.
Figure 36 Figure 37
