13.2 BRUSH CLEANING PROCEDURE
*Optional – Smach
®
highly recommends the brush set for a proper detailed cleaning.

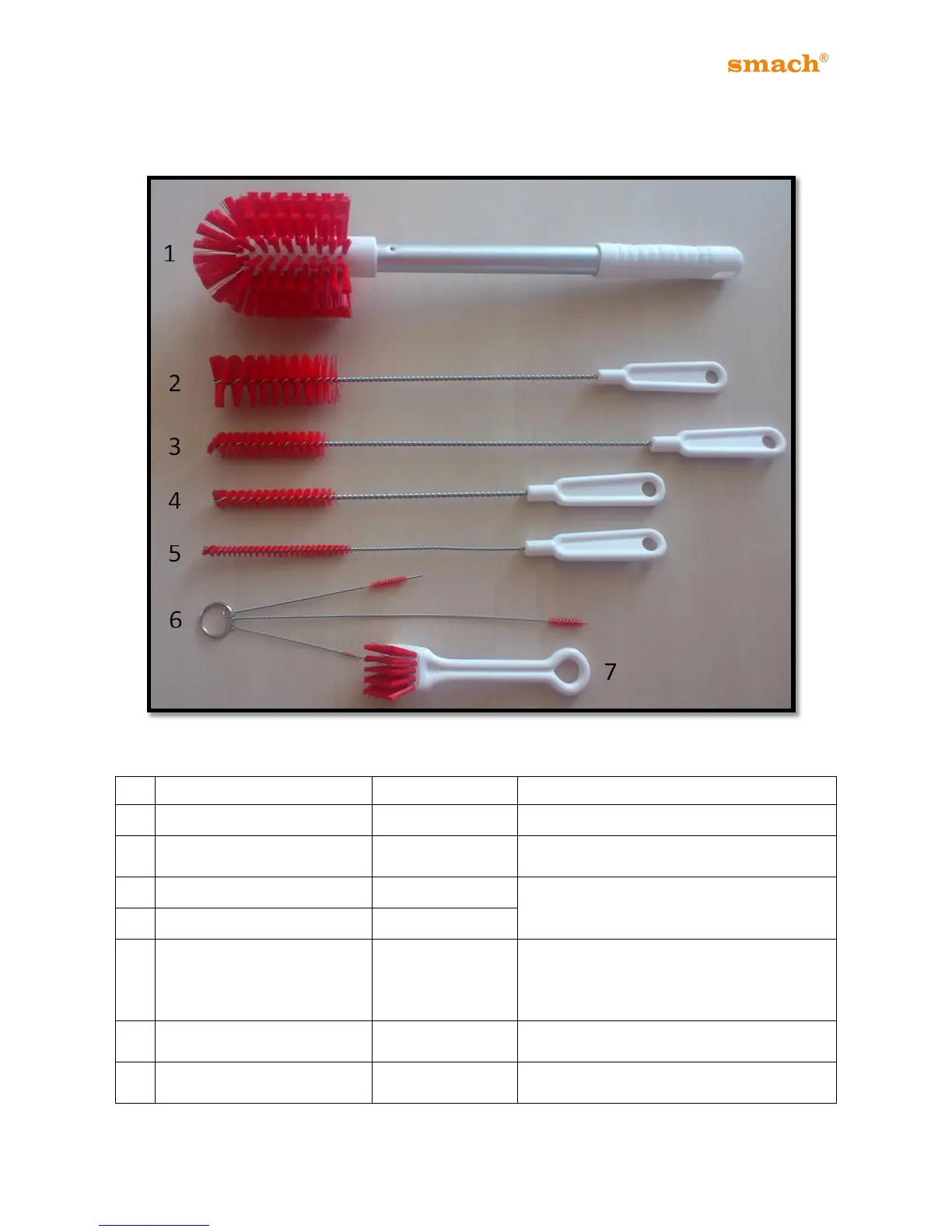

Figure 14
No
Part Name
Product Code
Area of Usage
1
Brush - Ø90x120x440
19506002
Barrel, Hopper, Drip Tray
2
Brush - Ø40 x100x400
19506003
Head (Piston Grove), Barrel Feeder
Hole
3
Brush - Ø20x90x450
19506004
Pump cover and Pump body holes,
Outer Air Tube, Scrapper Blades,
Pusher, Dasher, Head Screw Holes
4
Brush - Ø15x90x350
19506005
5
Brush – Ø9x110x350
19506006
Barrel Feeder Hole, Pump Feeder
Tube, Inner Air Tube, Compression
Feed Pipe, Head (Motion Pin Hole),
Liquid Level Sensor
6
Triple Brush - Ø6 Ø5 Ø2
19506007
Pump Cover, Pump Feeder Tube, Air
Tube, Compression Feed Pipe, Head
7
Hand Brush - 30x35x170
19506008
Nozzle, Head (Back Side), Drip Tray,
Pump
Table 8
