40
EFE 2500A /AF - 4000A/AS/AN

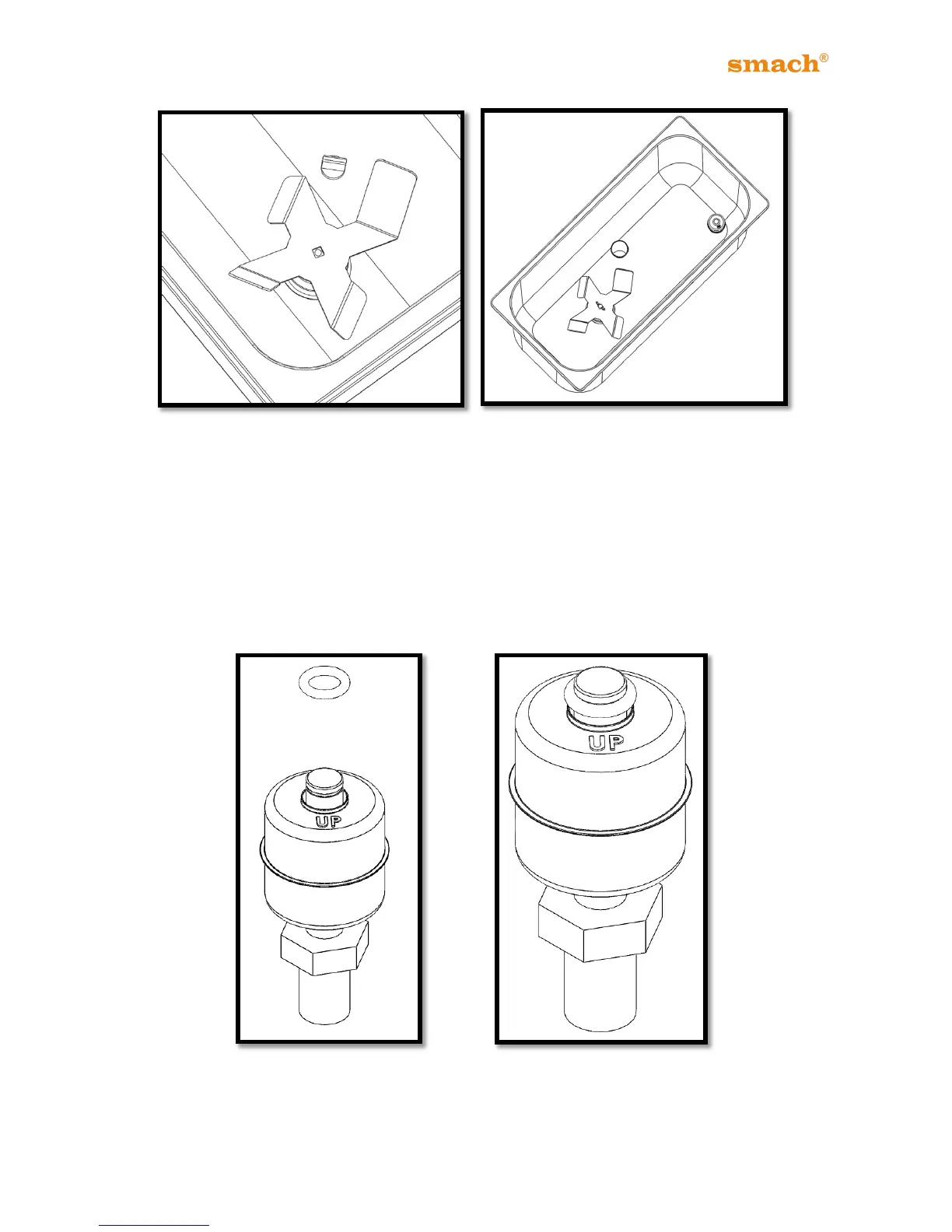

Figure 44 Figure 45
After placing Agitator Seal, place the Agitator Blades and tighten it with the Wing Screw.
14.6 LIQUID LEVEL SENSOR ASSEMBLY
Place the liquid level sensor float on the body. Make sure the float is placed correctly. The
up side of the float is marked as shown in the picture. After placing float, place the O-Ring
to the groove.
Figure 46 Figure 47
