34
EFE 2500A /AF - 4000A/AS/AN

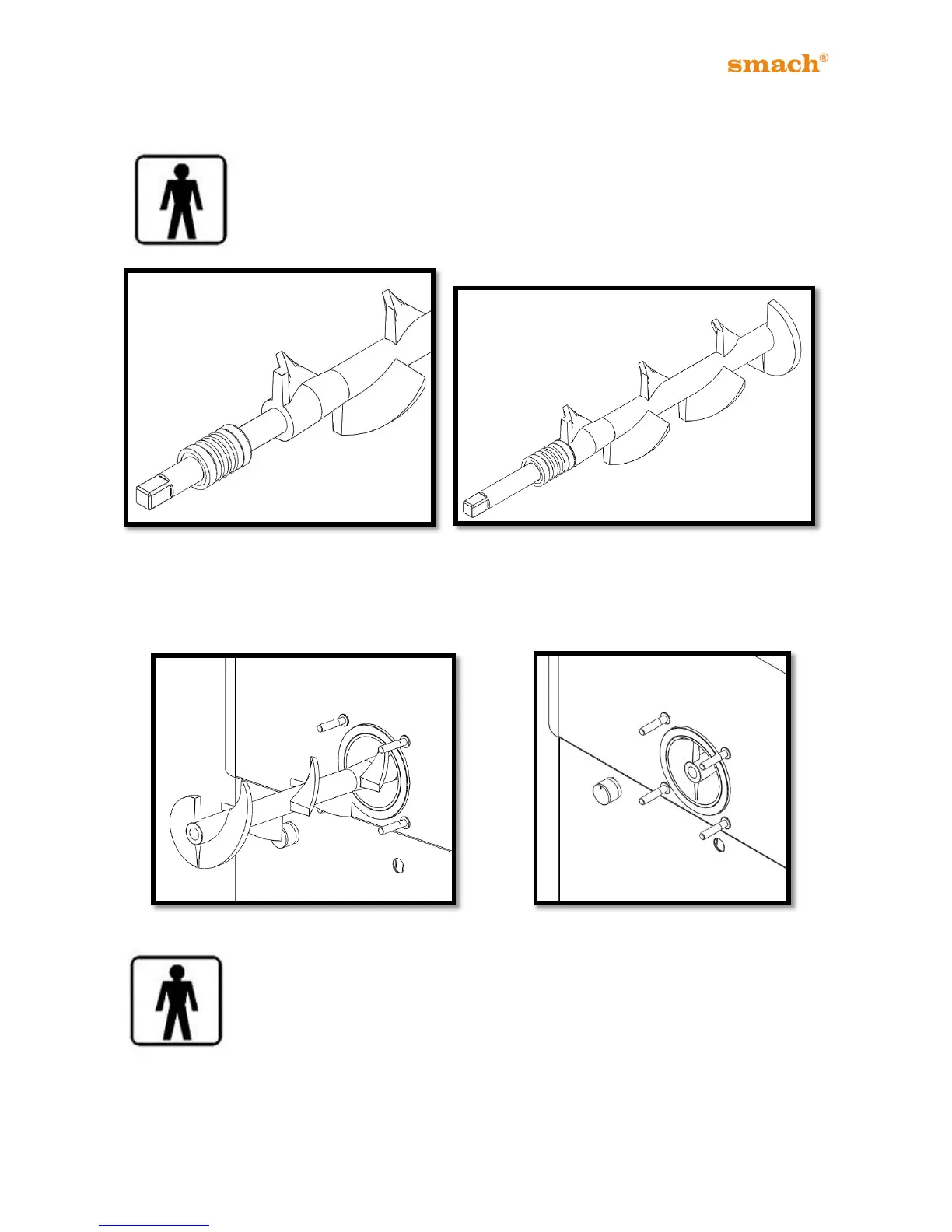

14.2 BEATER ASSEMBLY
14.2.1 Seal Assembly: Lubricate the TWO faces of the Beater Drive Shaft
Seal and slip over the drive shaft.
Figure 30 Figure 31
14.2.2 Inserting the Beater into the Barrel
Figure 32 Figure 33
Make sure the barrel is free of any obstruction before you insert the beater.
The beater must slide in easily with a final firm push and some turning to
align the shaft with the gearbox socket.
When it is pushed in, the beater seal will push it out a few millimeters like a
spring. Do not be concerned about this, as you place the dispensing head
on, the dispense head will push it into position.
