9500 Generator
Controls and Features
_________________________________________________________________________________________________
Familiarize yourself with the location and function of the controls and features before operating your generator. Save this
manual for future reference.

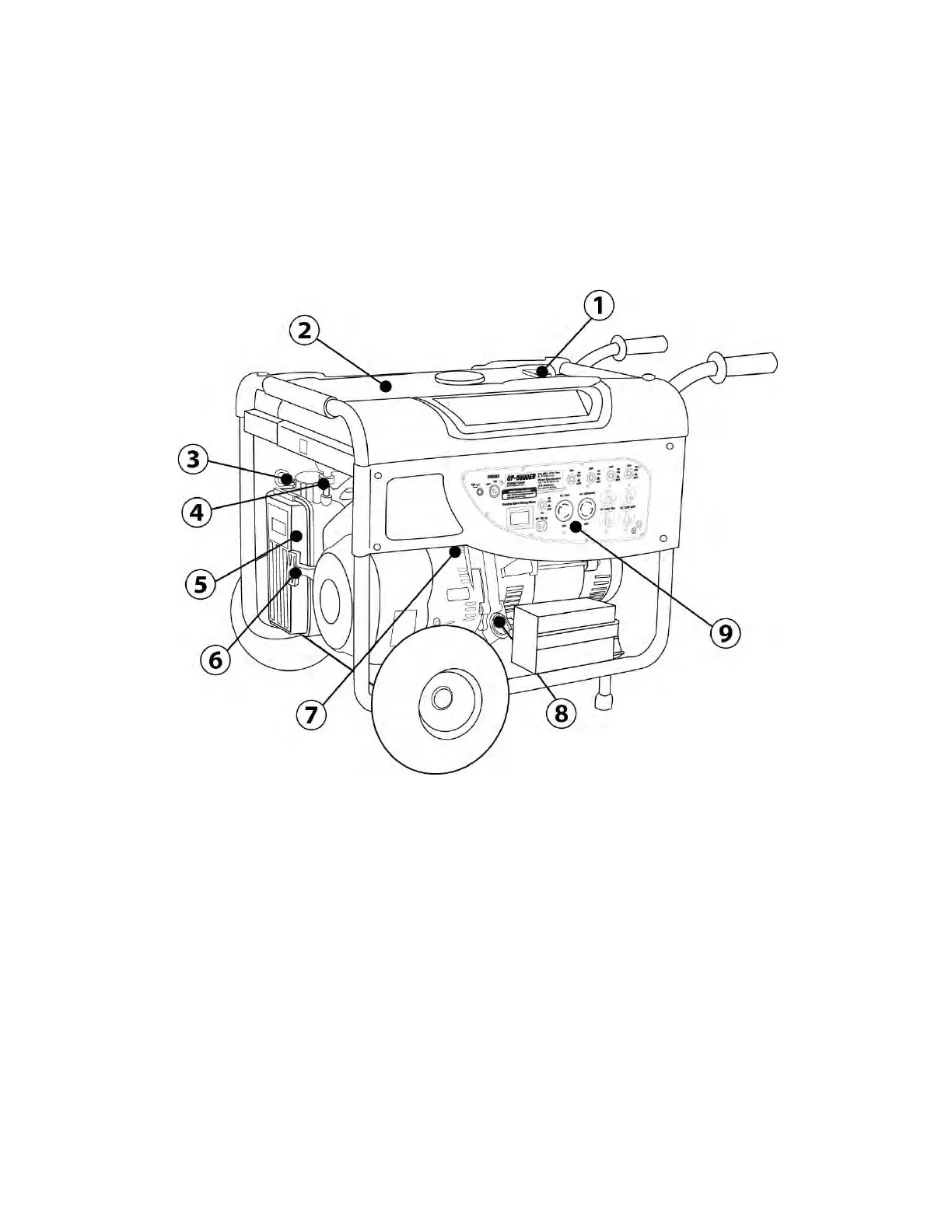

Generator
1. Fuel Gauge – Indicates amount of fuel in tank.
2. Fuel Tank – 7 gallon capacity
3. Choke – Used to start engine.
4. Fuel Valve – Turn this valve to the on position to
supply fuel to the engine
5. Air Filter – Protects the engine by filtering dust
and debris from the intake air.
6. Recoil Starter – Used to start the engine.
7. Low Oil Shutdown – Senses the level of oil in
the crankcase and shuts the engine down if the
level falls too low.
8. Oil Filler Cap/Dipstick – Used to check and fill
engine oil.
9. Control Panel – See “Control Panel” page 13
To Next Page
