Smarter tools ST-GP9500EB - Starter, Carburetor, and Valve Cover Parts

28
©2012 Smarter Tools, Inc. All Rights Reserved

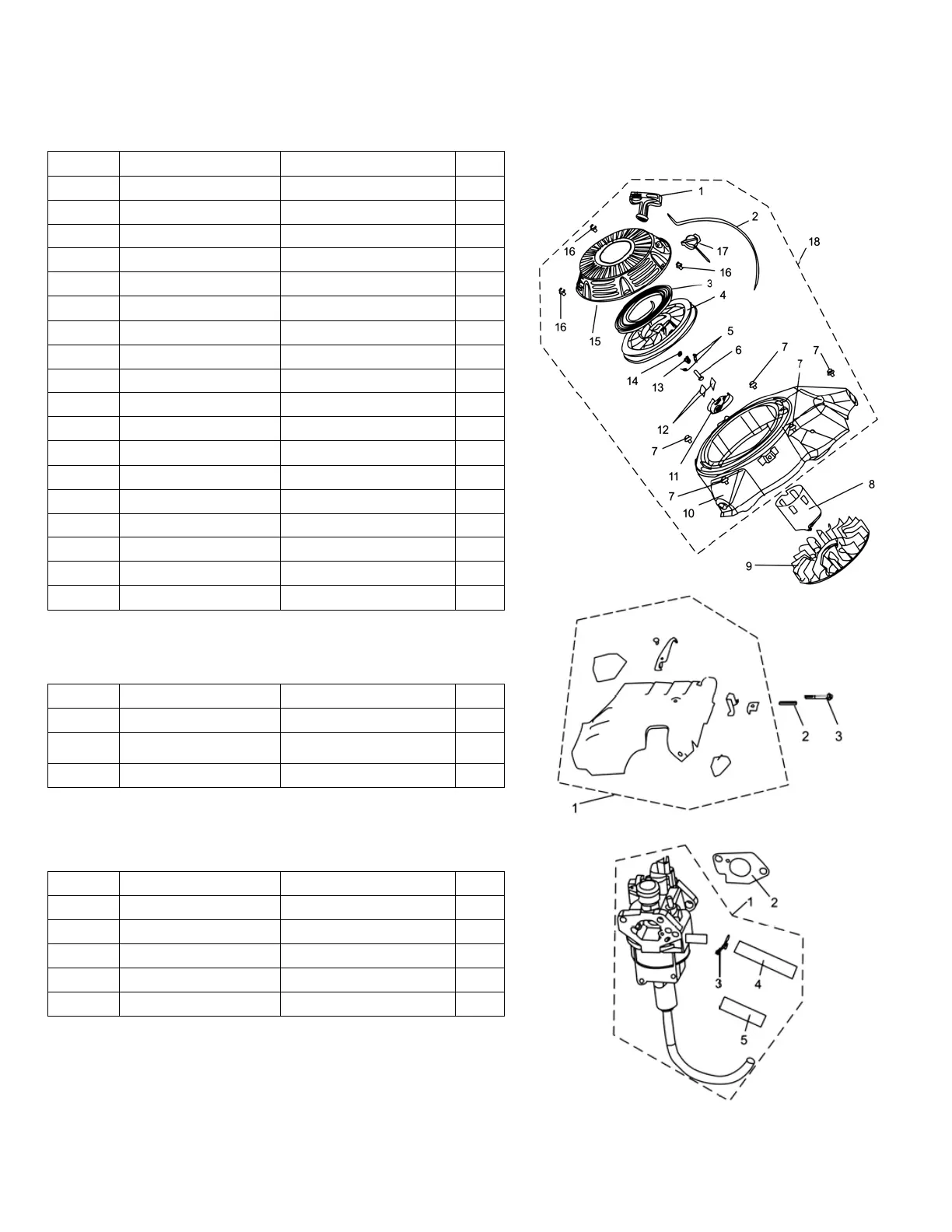

PARTS LIST AND DIAGRAMS
Starter Assembly
No Parts No Item QTY
1 GP182QDP.08.01-10 Handle 1
2 GP182QDP.08.01-11 Pull Rope 1
3 GP182QDP.08.01-09 Clockwork Spring 1
4 GP182QDP.08.01-03 Rotary Table 1
5 GP182QDP.08.01-05 Spring, Return 2
6 GP182QDP.08.01-07 Screw 1
7 GB5789-86 Bolt M6 x 12 5
8 GP182QDP.08-01 Starter Canister 1
9 GP182QDP.08-02 Fan Wheel 1
10 GP182QDP.08.01-01 Cowling Assy, cylinder 1
11 GP182QDP.08.01-08 Guide Pan 1
12 GP182QDP.08.01-04 Clamp 2
13 GP182QDP.08.01-06 Press Reed 1
14 GP182QDP.08.01-02 Washer 1
15 GP182QDP.08.01.01 Starter Cover Assy 1
16 GB5789-86 Bolt 3
17 GP168FJH-3.08.01 Switch 1
18 GP182QDP.08.01 Starter Assy 1
No Parts No Item QTY
1 GP182QDP.09 Speed adjustment base 1
2 GP168QDJ.05.01-02 Spring 1
3 GB818-2000 Screw M5 x 35 1
No
Parts No.
Item
QTY
1
GP182QDP.10.01
Carburetor
1
2
GP182QDP.10-01
Carburetor packing
1
3
GP153FM-0000041
Clip
1
4
GP182FPH-2.06.01-1
Hose 5x 8.5 x 145
1
5
GP182QDP.10-03
Hose 9 x 12 x 150
1
Engine Sprocket Cover
Carburetor Assembly
