Smarter tools ST-GP9500EB - Generator, Fuel Tank, and Control Panel Parts

30
©2012 Smarter Tools, Inc. All Rights Reserved
PARTS LIST AND DIAGRAMS

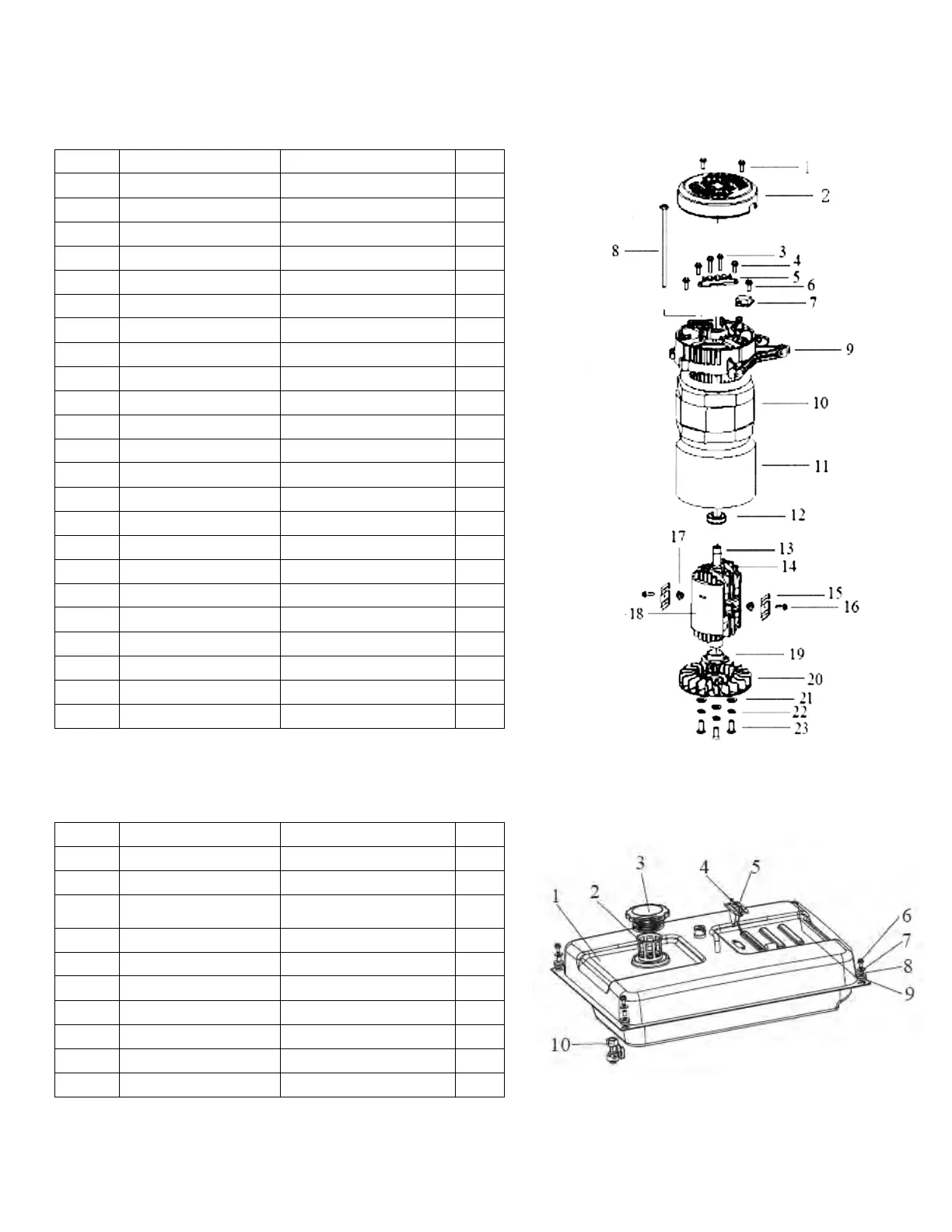

Generator Assembly
No
Parts No.
Item
QTY
1
GB/T5787-86
Bolt M5x 12
2
2
GP6500.03-04
Right Side Cover
1
3
GB/T5780-86
Bolt M5 X 20
2
4
GB/T5789-86
Bolt M5 x 12
4
5
GP6500.03-03
Connector
1
6
GB/T5789-86
Bolt M5 x 12
1
7
GP6500.03.03
Rectifier
1
8
GB/T5780-86
Bolt M10 X 260 x 1.25
1
9
GP6000.03-02
Motor Shell
1
10
GP7500B.02.01
Rotor Assy
1
11
GP7500.02-01
Motor Cover
1
12
GP6000.03.03.01
Bearing, needle
1
13
GP6500.03.02-01
Rotor Axis
1
14
GP6000.03.03-07
Rotor Wire Support
1
15
GP6000.03.03-09
Rotor Loop Platen
2
16
GB/T5787-86
Bolt M6x 16
2
17
GB/T6177-86
Nut M6
2
18
GP7500B.02.02
Alnico
1
19
GP6000.03.03-02
Impeller Retainer
1
20
GP6000.03.03-01
Impeller
1
21
GB/T95-85
Washer
3
22
GB/T93-87
Spring Washer
3
23
GB/T818-85
Bolt M5 x 12
3
Gas Tank Assembly
No Parts No. Item QTY
1 GP6800.01.01 Fuel Tank Comp 1
2 GP2600.01-04 Filtering Net 1
3 GP2600.01.05
Sump Cover
Subassembly
4
4 GB/T819-85 Screw M5 x 10 2
5 GP3000.01.03 Sender Unit 1
6 GB/T5787-86 Bolt M6 x 20 4
7 GB/ T95-86 Washer 4
8 GP2600-01-02 Fuel Tank Rubber Hose 4
9 GP2600.01-01 Fuel Tank Rubber 4
10 GP6500.01.02 Fuel Valve 1
