PARTS LIST AND DIAGRAMS

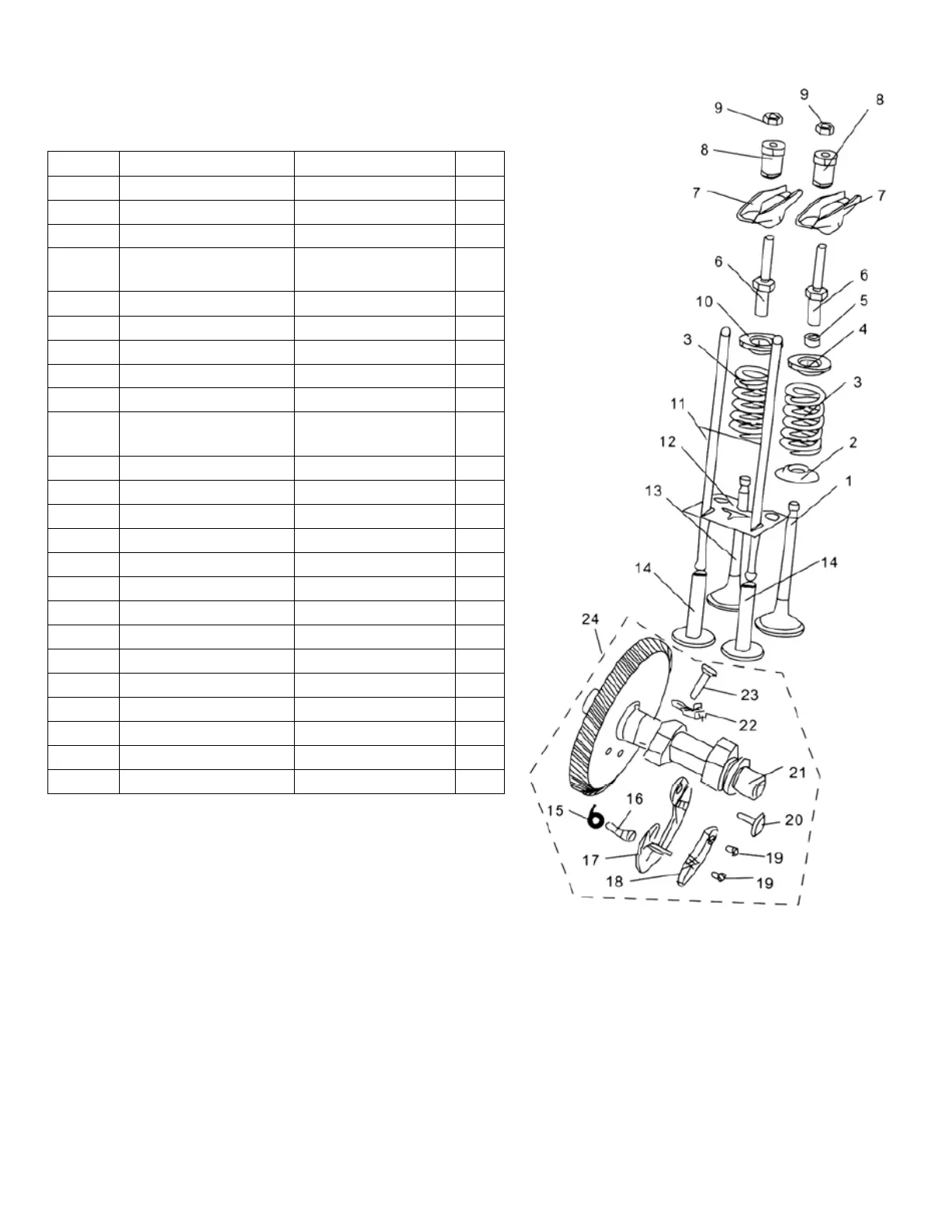

Camshaft Assembly
No Parts No Item QTY
1 GP182QDP.03-12 Exhaust valve 1
2 GP182QDP.03-11 Lower retainer 1
3 GP182QDP.03-05 Valve Spring 2
4 GP182QDP.03-08
Exhaust valve spring
retainer
1
5 GP182QDP.03-09 Valve rotator 1
6 GP182QDP.03-04 Pivot Bolt 2
7 GP182QDP.06-06 Valve rocker arm 2
8 GP182QDP.03-07 Rocker arm pivot 2
9 GP182QDP.03-11 Pivot adjusting nut 2
10 GP182QDP.03-10
Intake Valve spring
retainer
1
11 GP182QDP.03.02 Push rod 2
12 GP182QDP.03-03 Push rod guide plate 1
13 GP182QDP.03-13 Intake Valve 1
14 GP182QDP.03-01 Valve lifter 2
15 GP182QDP.03.01-06 Spring 1
16 GP182QDP.03.01-02 Pin I 1
17 GP182QDP.03.01.01-01 Fly Clamp I 1
18 GP182QDP.03.01.01-02 Fly Clamp II 1
19 GP182QDP.03.01.01-03 Pin IV 2
20 GP182QDP.03.01-03 Pin II 1
21 GP188FPH.03.01-01 Camshaft 1
22 GP182QDP.03.01-04 Decompress clamp 1
23 GP182QDP.03.01-05 Pin III 1
24 GP188FPH.03.01 Camshaft comp 1
To Next Page
