PARTS LIST AND DIAGRAMS

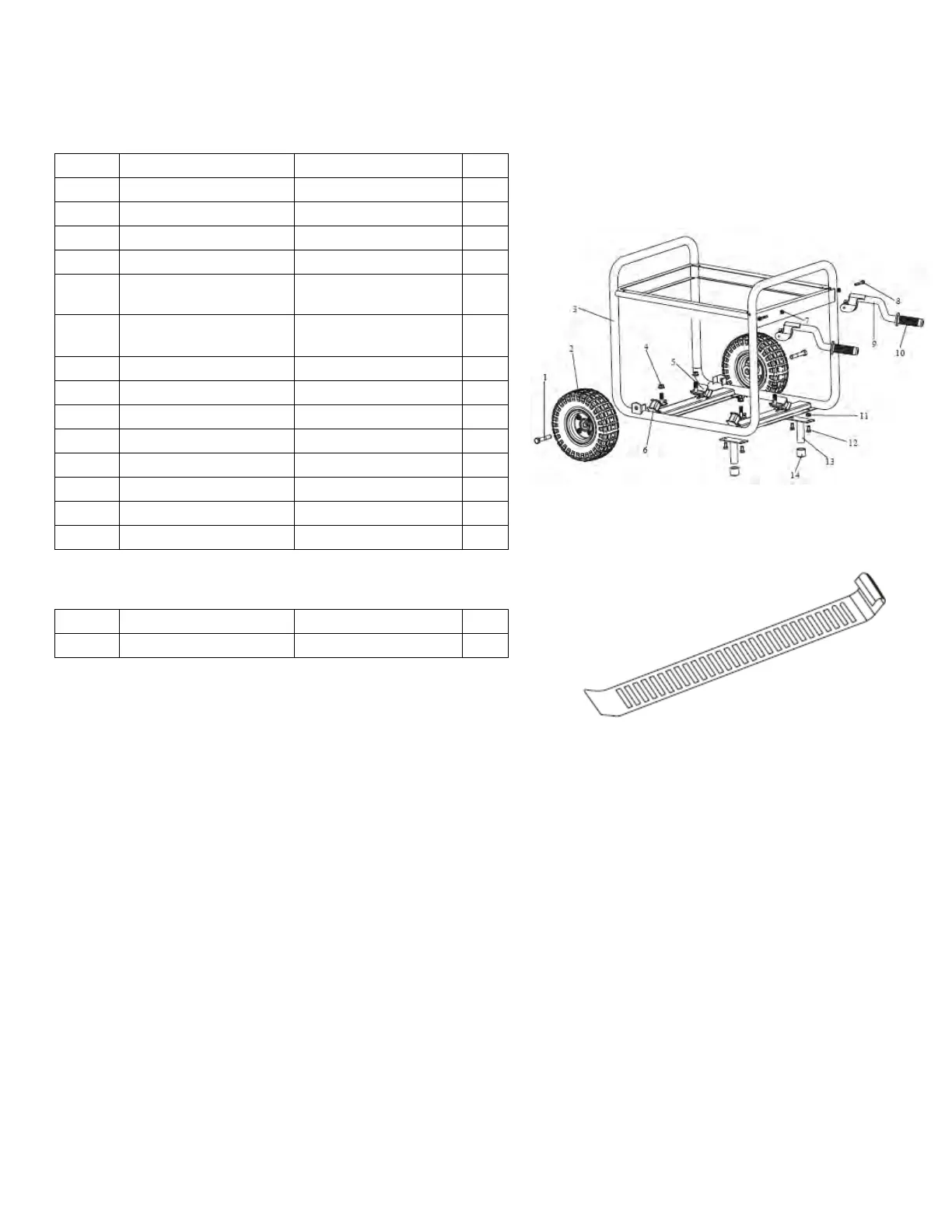

Frame Assembly
No Parts No. Item QTY
1 GP6500D.04-06 Wheel Axis Bolt 2
2 GP6500D.04.02 Wheel 4.10/3.5 2
3 GP7500.03.01 Frame Jointing Assy 1
4 GB/T6177.1-2000 Nut M10 X 1.25 4
5 GP6000.08.02
Shockproof Big
Mounting Feet
2
6 GP6000.08.03
Shockproof Small
Mounting Feet
2
7 GB/T6177.1-2000 Nut M6 2
8 GB/T5789-86 Bolt M6 x 40 2
9 GP6500D.04-01B Handrail 2
10 GP6500.04-02 Handrail Jacket 2
11 GB/T6177-2000 Nut M8 10
12 GB/T5780-2000 Bolt M8 x 16 4
13 GP6500D.04-03A Crutch 2
14 GP6800.06-02 Crutch Jacket 2
Motor Shield
No Parts No. Item QTY
1 GP6500.03-05 Motor Shield 1
