PARTS LIST AND DIAGRAMS

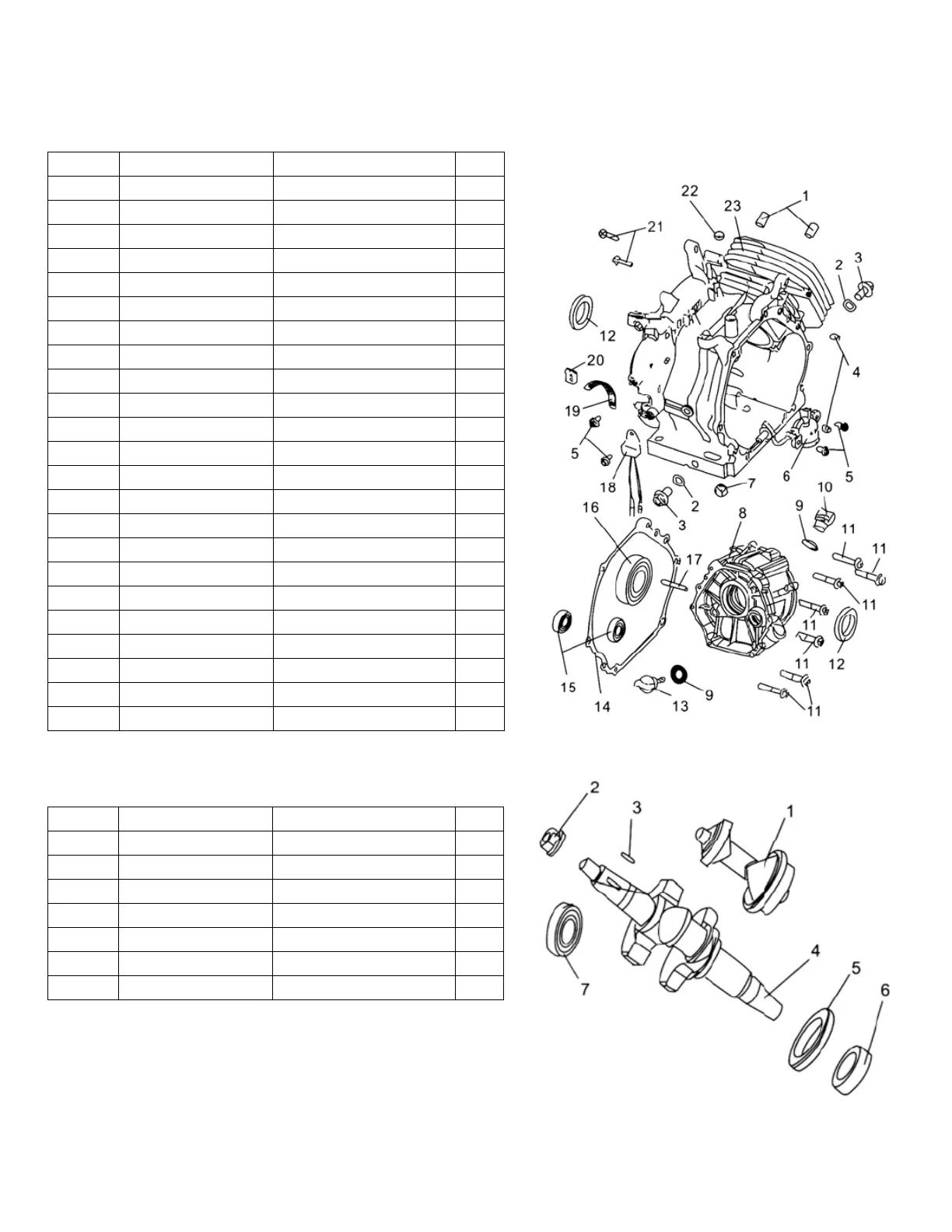

Crankcase Assembly
No Parts No Item QTY
1 GP182QDP.04-01 Balance Shaft 1
2 GP182QDP.04-02 Nut 1
3 GP182QDP.04-03 Woodruff Key 1
4 GP182QDP.04-04 Crankshaft (1-type) 1
5 GP182QDP.04-05 Crankshaft Gear I 1
6 GP182QDP.04-06 Crankshaft Gear II 1
7 GB/T276-94 Bearing6207 1
No Parts No Item QTY
1 GP182QDP.01-11 Bushing Sleeve 2
2 157.5-10 Spacer, Drain 2
3 157.5-9 Bolt, drain 2
4 GP150FMG.5-8 Dowel Pin 2
5 GB5787-86 Bolt M6x12 4
6 GP182QDP.01.04 Sensor Assy, Fuel Level 1
7 157-1-6-13 Nut 1
8 GP182FPP-15.01-01 Cover, Crankcase 1
9 GP168QDJ.01-05 Seal Washer 2
10 GP168QDJ.01-03 Plug, Add Oil 1
11 GB5787-86 Bolt M8 x 40 7
12 GP182QDP.01.01 Oil Seal 52 x 35 x 8 2
13 GP168QDJ.01-04 Oil Level Stick 1
14 GP182QDP.01-03 Spacer, Crankcase 1
15 GB/T276-94 Bearing 6202 15x35x11 2
16 GB/T276-94 Bearing6207 35x72x17 1
17 GP182QDP.01-10 Pin 1
18 GP182QDP.01-05 Electric Switch 1
19 GP182QDP.01-09 Clip, Cord 1
20 GP182QDP.01-08 Seal Gasket, Rubber 1
21 GB5787-86 Bolt M6x25 2
22 GP182QDP.01.03 Oil Seal 14x11x5 1
23 GP188FPH-15.01.01 Crankcase Body 1
