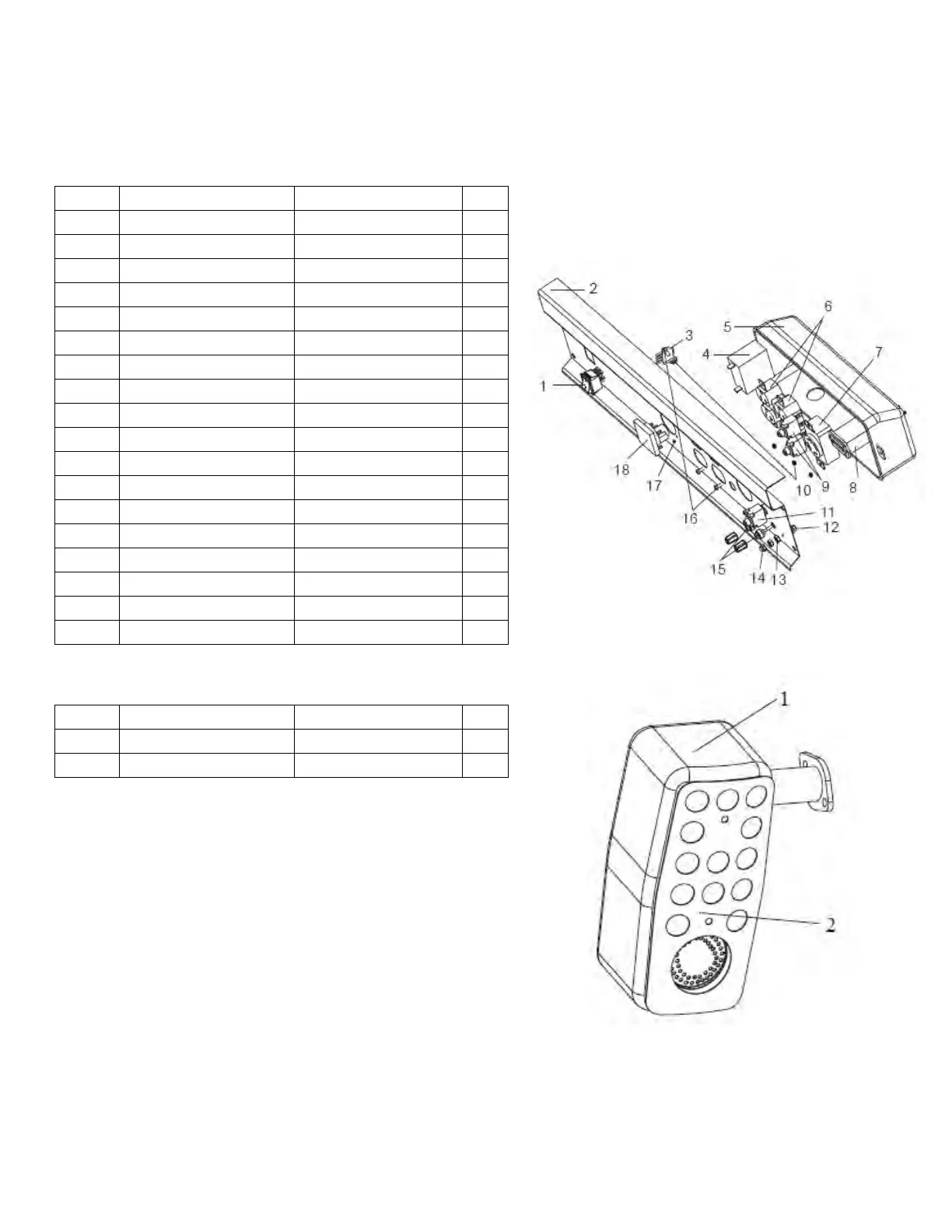

PARTS LIST AND DIAGRAMS
Control Panel Assembly
No Parts No. Item QTY
1 GP6500.02.02 Engine Switch 1
2 GP6500D.01.01 Panel 1
3 GP6500.02.07 Carburetor Controller 1
4 GP6500.02.06 Capacitance 1
5 GP6500D.01-01 Bottom Shell 1
6 GP3200.01.02 3- Pole Socket for USA 2
7 GP6500D.01.03 4-Pole Socket 1
8 GP6500D.01.04 Hour Meter 1
9 GP3500.02.03 Circuit Breaker 2
10 GB/T6177-86 Nut M4 7
11 GP6500.02.04 DC Protector 1
12 GB/T6177-86 Bolt M6 x 16 4
13 GB/T6170-86 Nut M6 2
14 GB/T923-88 Nut M6 1
15 GP6500.02.05 DC Terminal 2
16 GB/T818-85 Screw M4 x 12 7
17 GB/T818-85 Screw M2 x 4 4
18 GP2600.02.06A Voltmeter 1
Muffler
No Parts No. Item QTY
1 GP6800.05.01 Muffler 1
2 GP6800.05-02 Muffler Cover 1
