PARTS LIST AND DIAGRAMS

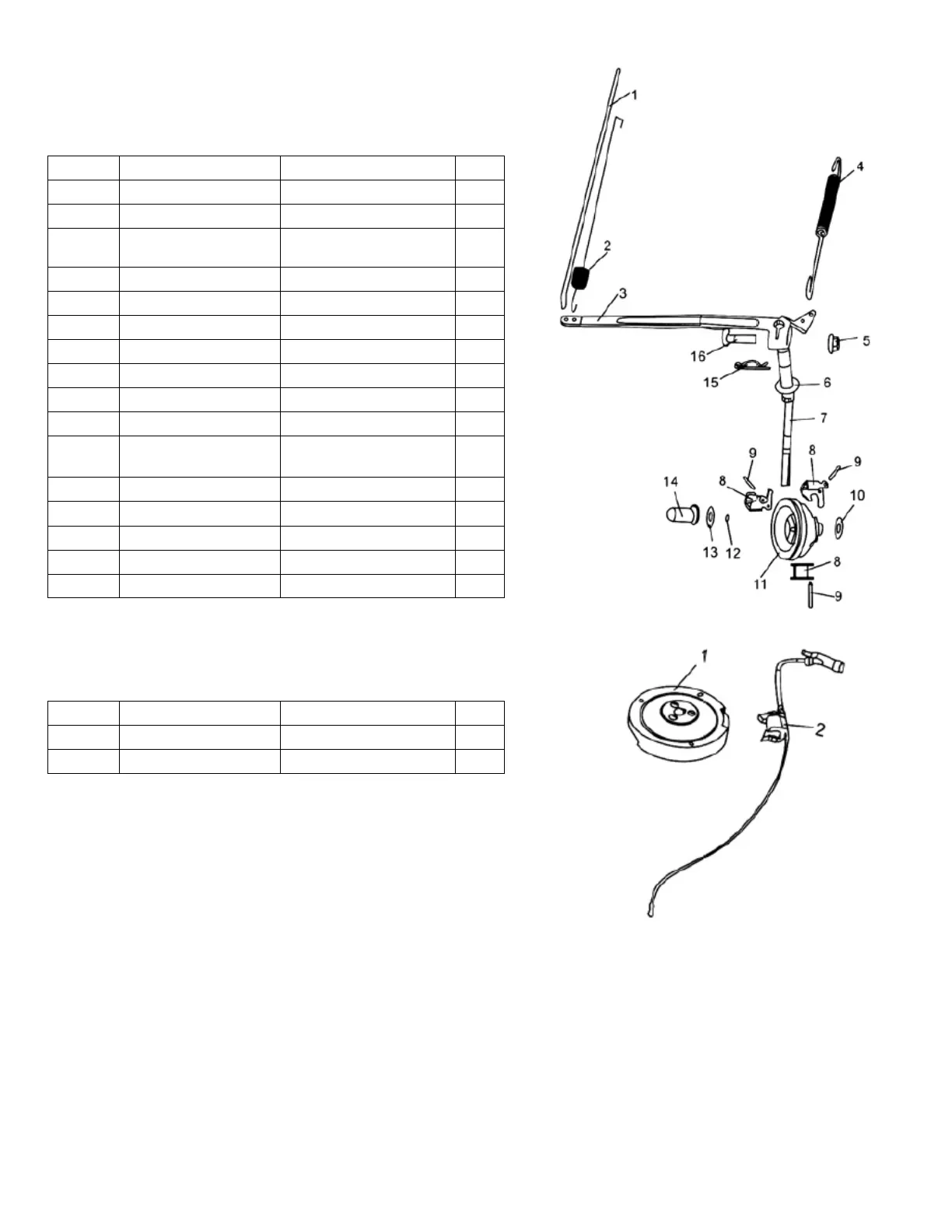

Centrifugal Timing Implement Assembly
No Parts No Item QTY
1 GP182QDP.06-09 Pull Pole, steel wire 1
2 GP182QDP.06-10 Pull spring, little 1
3 GP182QDP.06-01
Pull Pole, Timing
Implement
1
4 GP182QDP.06-08 Pull spring, big 1
5 GB6177-2000 Nut M6 1
6 GP182QDP.06-05 Washer I 1
7 GP182QDP.06.04 Fork 1
8 GP182QDP.06-01-03 Governor weight 3
9 GP182QDP.06-01-02 Governor weight pin 3
10 GP166QDK.06-07 Washer III 1
11 GP182QDP.06.01-01
Centrifugal Timing
Implement
1
12 GP166QD.01-02 Clip 1
13 GP182QDP.06-07 Washer II 1
14 GP182QDP.06-06 Handspike Cover 1
15 GP182QDP.06-02 Clip 1
16 GP182QDP.06-03 Bolt, Square Toes 1
No Parts No Item QTY
1 GP182QDP.07.02 Rotor Assy 1
2 GP182QDP.07.01 High Voltage Wrap 1
