4.2.2 Set, save and load calibration values
To enter the calibration parameters, you need the calibration protocol, which was attached to the
case. There you can see the offset settings and the correction values that were determined during
the calibration of your system in the Radlabor Company.

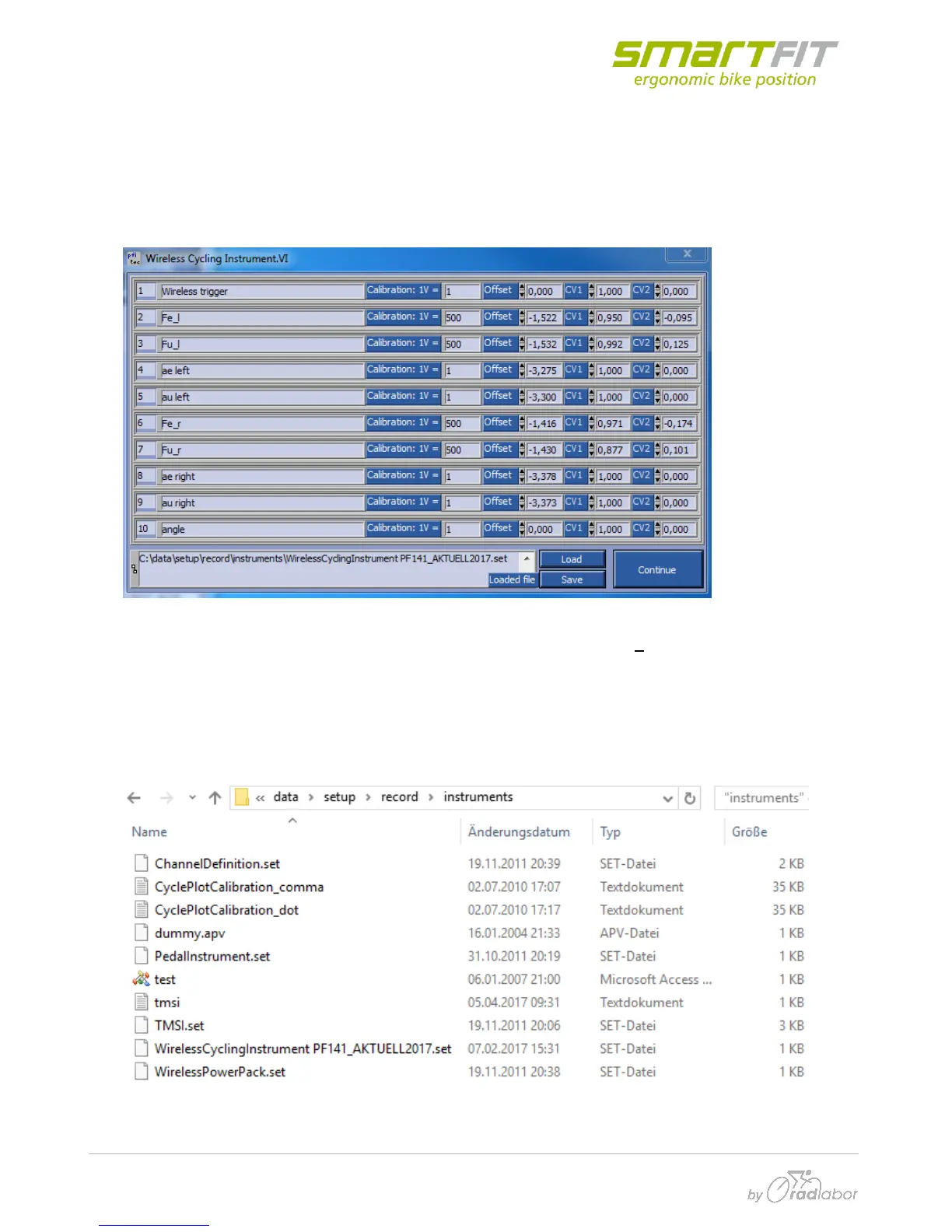

Now enter the, for your system, individual parameters in the “Wireless Cycling Instrument.VI” as seen
in the picture.
Note, that the gain for the power channels must be calculated with 500
𝑁
𝑉
to get from the voltage in
[V] to the force in [N].
Then press on the save button to save these parameters. You can find these settings under the file
path:
