Smartgen ALC700 SERIES User Manual

ALC700 Series Light Tower Set Controller
ALC700 Series Light Tower Set Controller 2018-03-02 Version 1.4 Page 11 of 51

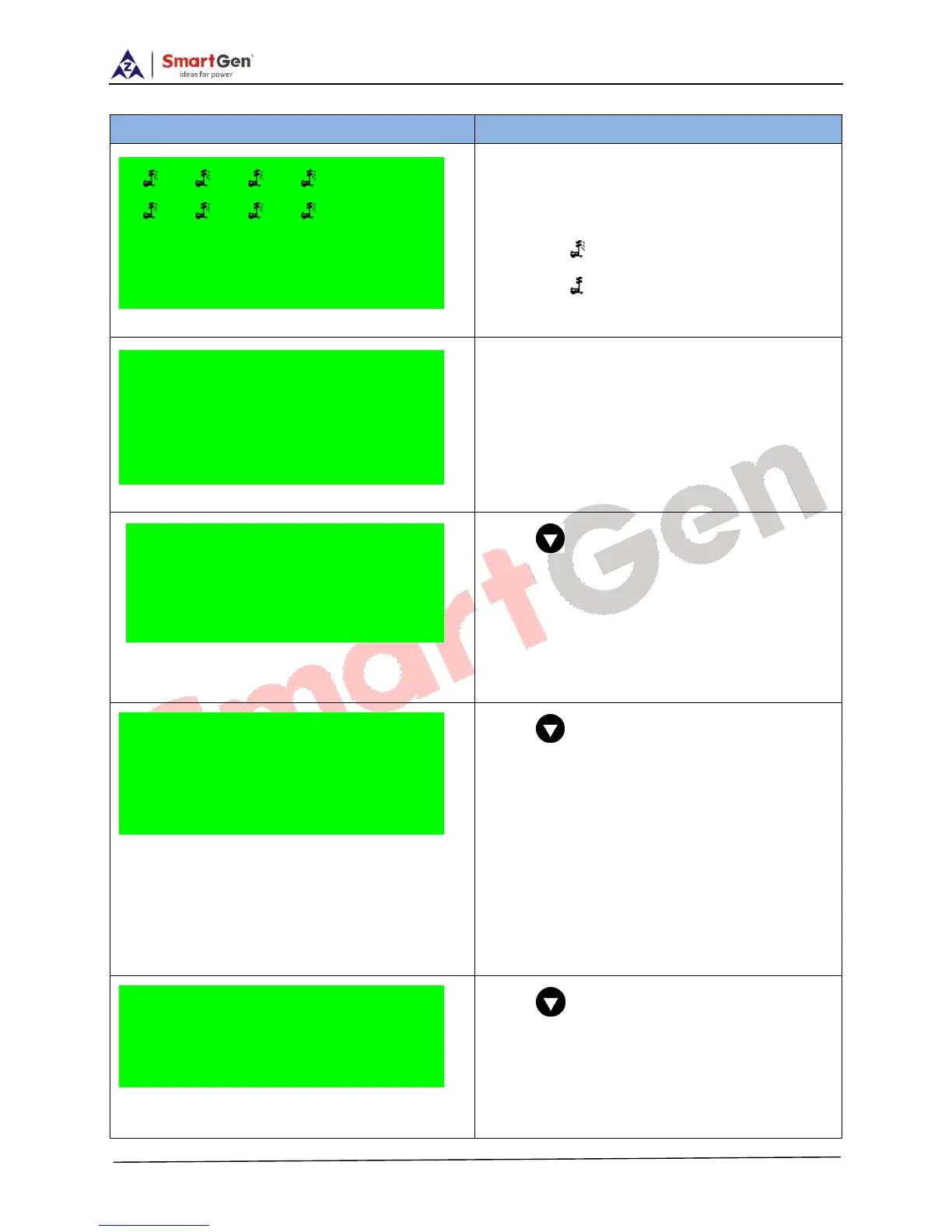

5.2 LCD DISPLAY
Display
Description
First screen display all lights status, average
voltage ， generator frequency, generator
running status and alarm information.
Light On：
Light Off：
Second screen display：Generator running
status, current time, alarm information.
Press button
The screen display generator line
voltage(L1-L2, L2-L3, L3-L1), phase
voltage(L1、L2、L3), frequency and engine
speed.
DC light tower set without this page.
Press button
The screen display generator fuel level,
engine temperature, oil pressure, flexible
sensor information.
There is no sensor information when flexible
sensor select “Not used” or “Digital closed” or
“Digital open”.
The screen display “++++” when sensor is
open circuit.
Press button
The screen display battery voltage, charger
voltage, engine speed and current time (the
number in the parentheses is week
information).
FUEL LEVEL 80 %
ENGINE TEMP. 80℃176℉
OIL PRESSURE 110 KPa
16.0 PSI 1.10Bar
GENERATOR
UL-L 381 381 381 V
UL-N 220 220 220 V
F =50.0 Hz 1500RPM
MANUAL MODE
MANUAL START
CURRENT TIME 12:05:18
GENERATOR NORMAL RUNNING
1 2 3 4
5 6 7 8
U = 220V F = 50.0Hz
GENERATOR NORMAL RUNNING
PLANT BATTERY 24.1 V
D+ VOLTAGE 18.1 V
Engine Speed 1500 RPM
05-06-16 (4) 08:16:01
