HGM400 Series Genset Controller User Manual
HGM400 Series Genset Controller ISSUE 2015-05-27 Version 1.6 Page 39 of 44
11 TYPICAL APPLICATION

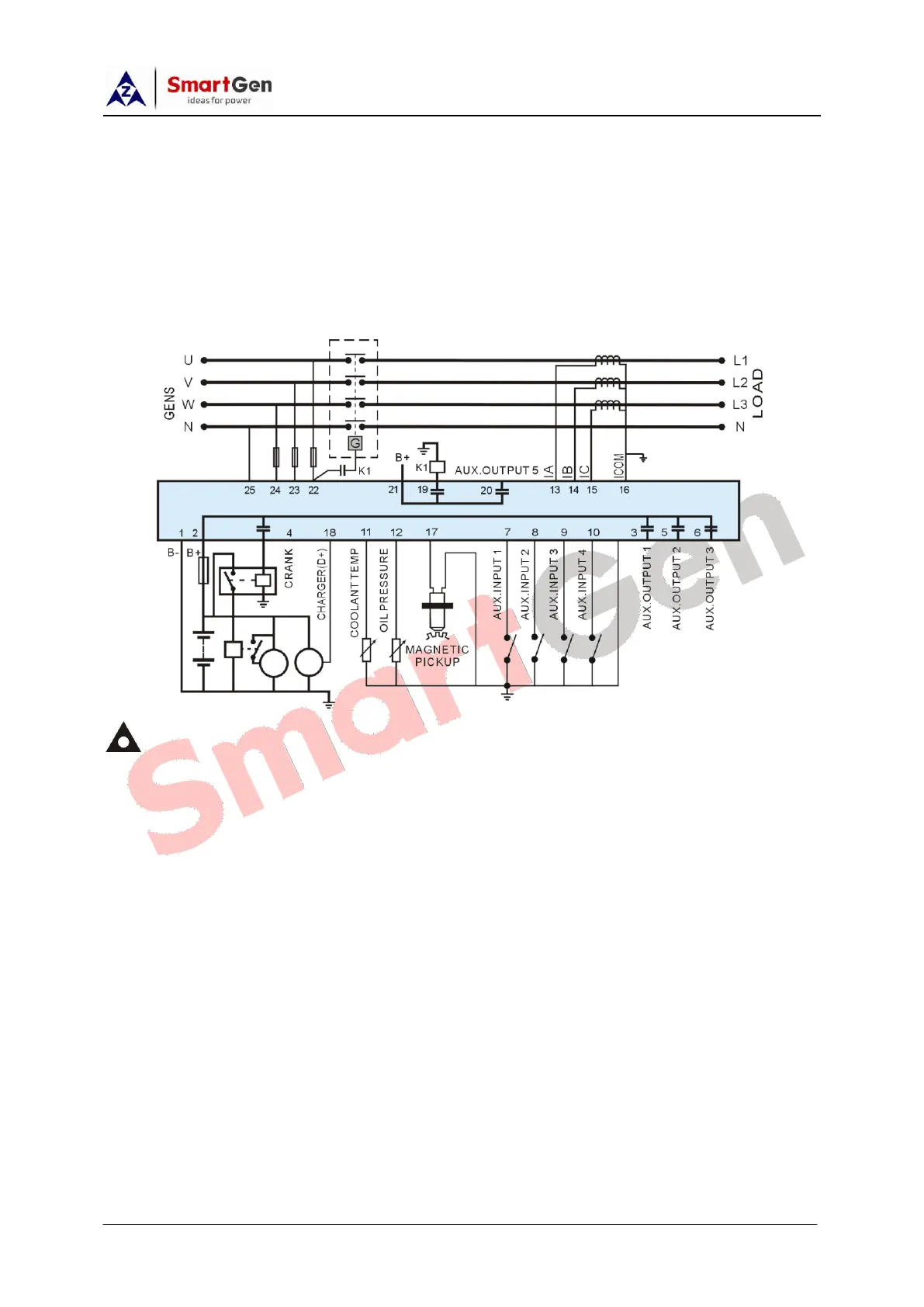

HGM410 Typical wiring diagram
Note: Aux. Input 3 can be set as level sensor; Aux. Input 4 can be set as
temperature sensor, oil pressure sensor or level sensor.
HGM420 Typical wiring diagram
