HGM7100N GENSET CONTROLLER USER MANUAL
HGM7100N Genset Controller 2020-09-10 Version1.2 Page 7 of 47
4 OPERATION
4.1 KEY FUNCTION

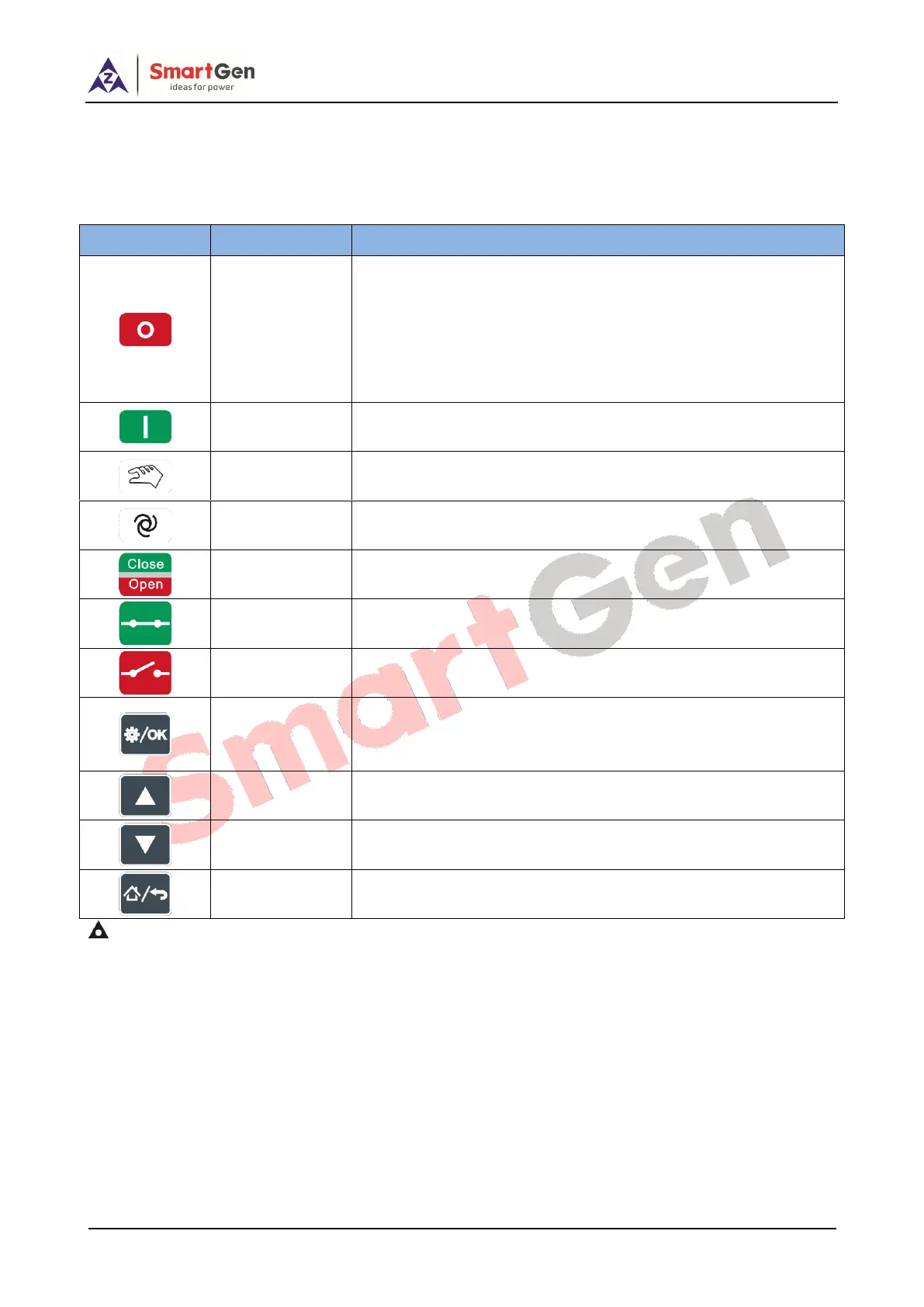

Table 3 - Key Function Descriptions
Icon
Function
Description
Stop/ Reset
Stop running generator in Auto/Manual mode;
In stop mode, reset alarms;
Pressing and holding the button for 3 seconds will test indicator
lights (lamp test);
During stopping process, press this button again to stop generator
immediately.
Start
Under manual mode, press this button and genset can be started;
Manual
Pressing this key will set the module into manual mode.
Auto
Pressing this key will set the module into auto mode.
C/O
Press this key to control breaker close or open under manual mode.
(only suit for HGM7120N)
Close
Press this key to control breaker close under manual mode.
(only suit for HGM7110N)
Open
Press this key to control breaker open under manual mode.
(only suit for HGM7110N)
Set/Confirm
Pressing this key will enter into Main Menu;
In setting parameter status, press this key to shift cursor or confirm
setting value.
Up/Increase
Scrolls the screen up; Shift the cursor up or increase the set value
in parameter setting menu.
Down/Decrease
Scrolls the screen down; Shift the cursor down or decrease the set
value in parameter setting menu.
Homepage/Return
Return to homepage in main interface; return to previous interface
in parameter setting screen; press for over 3s to reset trip alarms.
NOTE: press any key to mute alarms in main screen.
