HGM7100N GENSET CONTROLLER USER MANUAL
HGM7100N Genset Controller 2020-09-10 Version1.2 Page 8 of 47
4.2 CONTROLLER PANEL

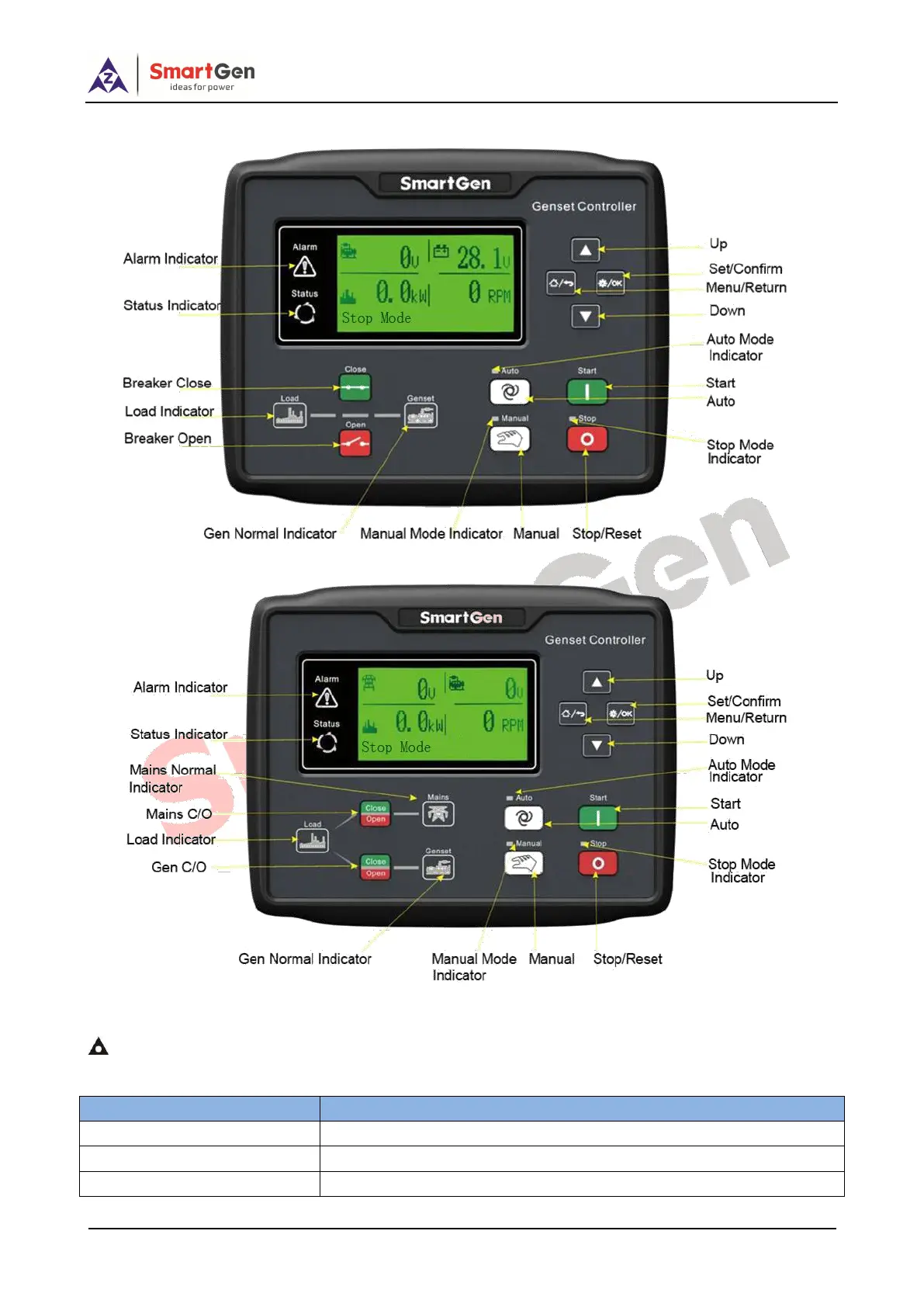

Fig. 1 - HGM7110N Front Panel Indication
Fig. 2 - HGM7120N Front Panel Indication
NOTE: Part of indicator lights illustration:
Table 4 - Alarm Indicator Description
Alarm Type
Alarm Indicators
Warning alarm
slowly flash (once per second)
Trip alarm
slowly flash (once per second)
Shutdown alarm
fast flash (5 times per second)
