SMC Networks 25A-LEFS Series User Manual

- 16 -

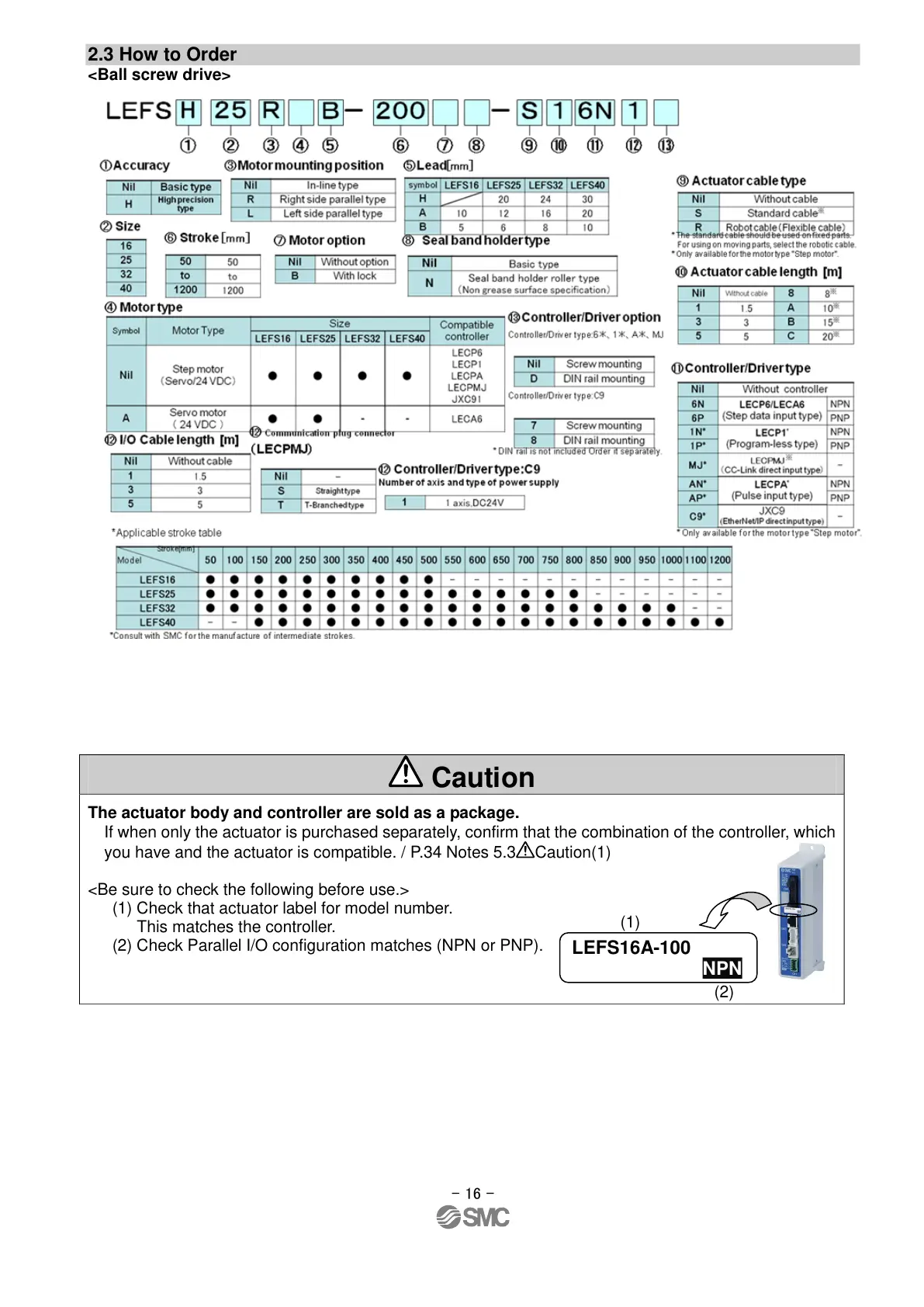

2.3 How to Order
<Ball screw drive>
Caution
The actuator body and controller are sold as a package.
If when only the actuator is purchased separately, confirm that the combination of the controller, which
you have and the actuator is compatible. / P.34 Notes 5.3 Caution(1)
<Be sure to check the following before use.>
(1) Check that actuator label for model number.
This matches the controller.
(2) Check Parallel I/O configuration matches (NPN or PNP).
(1)
(2)
LEFS16A-100
NPN
2021-05-2010:32
DW913599
